How do air showers handle static electricity in cleanroom settings?

Controlling static in cleanrooms is crucial to prevent damage to sensitive equipment and ensure product quality. Effective methods include grounding, ionization, humidity control, and the use of antistatic materials. Proper training and regular maintenance are also essential to managing static risks.

How do air showers handle static electricity in cleanroom settings?

Air showers are essential in cleanroom environments, not only for removing contaminants but also for managing static electricity. Static electricity can attract dust particles and compromise the cleanliness of the environment. Effective air showers incorporate features that mitigate static buildup, ensuring a controlled atmosphere suitable for sensitive processes.

1. Ionization Technology

Air showers utilize ionization technology to neutralize static charges on personnel and equipment. Ionizers release positive and negative ions into the airflow, which interact with charged surfaces, balancing the electric charge and minimizing static accumulation. This process helps prevent the attraction of dust particles, maintaining the cleanroom's standards.

2. Grounding Systems

Incorporating grounding systems within air showers is crucial for static control. Grounding straps or conductive flooring ensure that any static charge accumulated on personnel or equipment is safely discharged. By directing excess charge away from sensitive areas, these systems effectively reduce the risk of static-related contamination and damage.

3. Regular Maintenance and monitoring

To ensure optimal performance in managing static electricity, regular maintenance and monitoring of air shower systems are essential. This includes checking the functionality of ionizers, ensuring proper grounding, and verifying airflow rates. Routine assessments help identify potential issues, ensuring that static control measures remain effective and compliant with cleanroom standards. Additionally, training personnel on the importance of static control and proper usage of air showers further enhances the efficacy of these systems in preventing contamination and protecting sensitive processes.

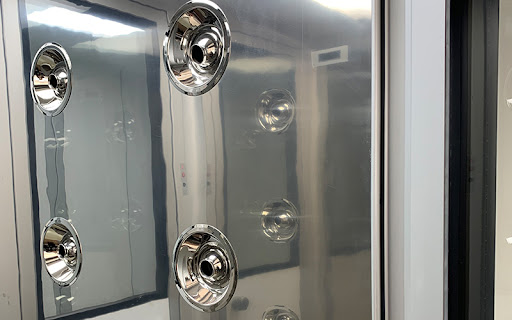

The principle of air shower

Air showers operate on the principle of high-velocity air jets that remove contaminants from personnel and equipment before entering cleanroom environments. The air jets dislodge particles, ensuring a cleaner transition.

The air shower system typically features multiple nozzles that direct air at strategic angles, creating a controlled airflow. This design ensures thorough coverage, effectively eliminating dust and contaminants from surfaces while minimizing particle re-entry.

Air showers enhance cleanliness by expelling particles without direct contact, making them essential for maintaining stringent cleanroom standards and ensuring compliance with industry regulations.

By utilizing air showers, facilities can significantly reduce the risk of contamination caused by personnel. They serve as a barrier, preventing unwanted particles from entering critical areas, which is crucial for industries like pharmaceuticals, Semiconductors, and biotechnology.

Benefits of air showers

Air showers provide numerous advantages in maintaining cleanroom integrity. Firstly, they effectively reduce the transfer of contaminants from personnel and equipment, ensuring a cleaner environment. Secondly, air showers enhance operational efficiency by minimizing downtime associated with contamination control measures. Thirdly, they improve safety by creating a controlled environment that reduces the risk of contamination-related incidents. Additionally, their design allows for easy integration into existing cleanroom protocols, making them a practical choice for many facilities. Finally, regular use of air showers helps maintain compliance with industry standards, bolstering the credibility of cleanroom operations.

• Effective contamination control

• Increased operational efficiency

• Enhanced safety measures

• Easy integration into protocols

• Compliance with industry standards

• Cost-effective solution

How to Control Static in Your Cleanroom

1. ISO 7 Cleanroom Standards

A ISO 7 cleanroom adheres to ISO 14644-1, with particle count limits of 352,000 particles per cubic meter for particles ≥0.5 microns. This ensures moderate contamination control, ideal for environments like pharmaceuticals, biotechnology, and manufacturing.

2. Subheading: Static Control in Cleanrooms

Static control is essential in cleanrooms to prevent contamination and damage to Electronic components. By managing the buildup of static electricity, cleanrooms maintain an environment free of electrostatic discharge (ESD).

Controlling static involves methods such as grounding personnel, using ionizers to neutralize charges, and maintaining optimal humidity levels. Regular monitoring and using appropriate materials are crucial to minimize ESD risks.

Several key techniques include using antistatic garments, ionized air blowers, and grounding mats to safely dissipate charges. Ensuring proper cleanliness and equipment maintenance is also vital to control static in A CleanRoom environment.

3. ISO 7 Cleanroom Standard

In a ISO 7 cleanroom, static control methods are critical for sensitive manufacturing, including using ionization, grounding, and humidity management to prevent contamination.

4. Subheading: Common Static Control Methods

There are several methods to control static in cleanrooms, including grounding personnel and equipment, using ionizers, maintaining humidity levels, and installing antistatic flooring and materials. Each method reduces the risk of static buildup, preventing damage to sensitive components and maintaining a sterile environment. A combination of these methods is typically employed to ensure optimal control.

List of Relevant Specifications and Standards:

iso 14644-1: CleanRoom Classification and air cleanliness standards.

ANSI/ESD S20.20: Static control program requirements for electronics.

IEC 61340-5-1: Electrostatic control in the workplace.

ESD Association Standards: Guidelines for handling and preventing electrostatic discharge.

The Static Electricity Control Methods in Cleanrooms

Static electricity control is critical in cleanrooms to avoid contamination and damage, especially to electronic components. Effective control methods include grounding, ionization, and maintaining ideal humidity levels. Using antistatic materials further reduces risks.

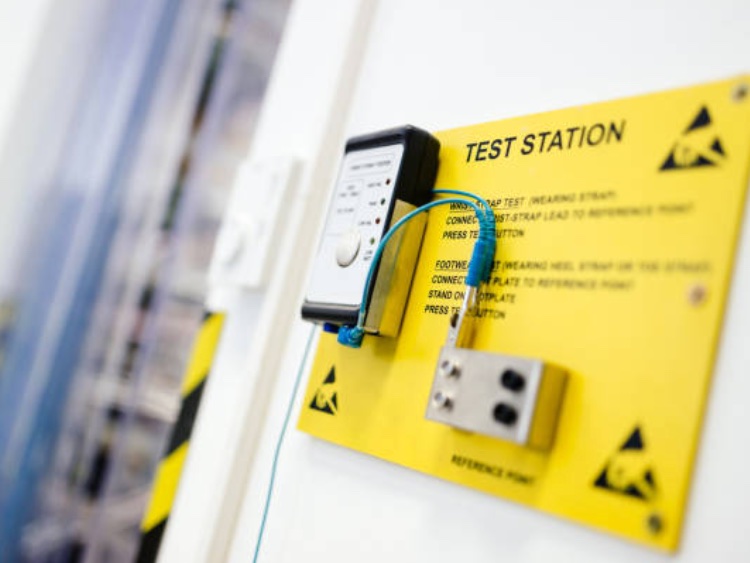

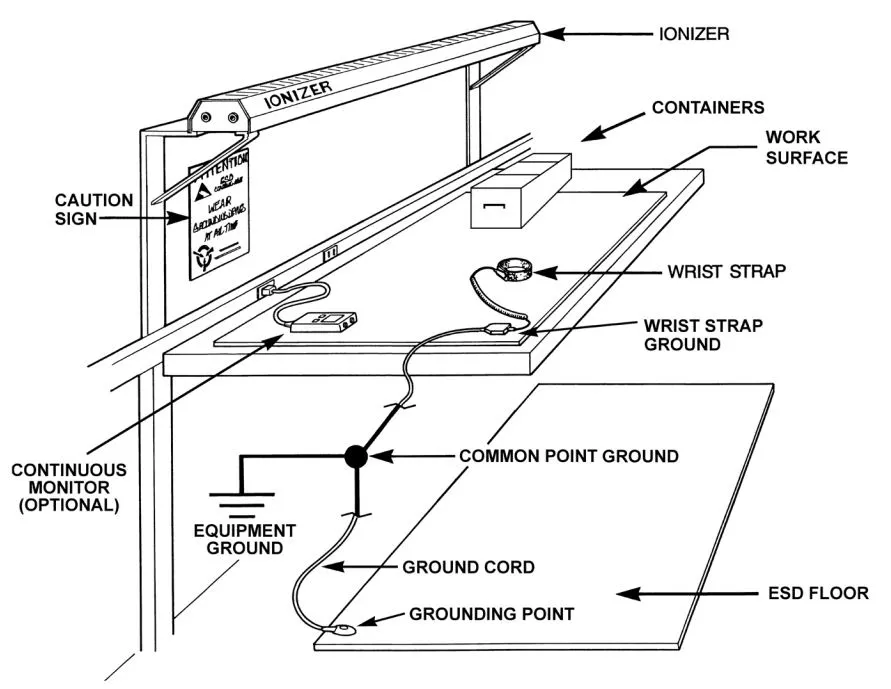

1. Grounding Personnel and Equipment

Grounding is essential to ensure that any built-up static charge is safely dissipated. This involves attaching wrist straps, floor mats, and conductive clothing to a grounded system.

2. Use of Ionizers

Ionizers neutralize static charges by emitting positive and negative ions. These ions attach to charged particles, neutralizing them. Ionizers help control static in environments where grounding alone may not suffice.

3. Maintaining Optimal Humidity

Humidity plays a significant role in controlling static. Low humidity increases the likelihood of static buildup. By maintaining optimal levels of humidity (around 40-60%), static charge buildup can be reduced.

4. Antistatic Materials and Garments

Personnel wear antistatic garments that prevent the accumulation of static charges. Materials like polyester and certain types of vinyl can also be used in floors, walls, and work surfaces to reduce static build-up.

Static Control for Medical Device Cleanrooms

Subheading: Grounding Equipment and Personnel

A comprehensive grounding system is crucial to safely discharge any static buildup, protecting both personnel and equipment.

Subheading: Using Ionizers and Humidity Control

Ionization systems neutralize static charges, while maintaining controlled humidity levels helps minimize static buildup.

Subheading: Proper Materials Selection

Choosing the right materials, such as antistatic clothing and equipment, helps prevent static accumulation during production.

Subheading: Airflow and Filtration Systems

Maintaining proper air filtration and airflow is essential for both static control and particle contamination management in cleanrooms.

summary

In medical device cleanrooms, static control is vital for both product integrity and patient safety. Proper management of static is especially critical when working with sensitive equipment like implants, sensors, and diagnostic tools. Strict adherence to electrostatic discharge (ESD) standards is necessary to prevent malfunctioning or contamination during manufacturing processes.
