Airflow rates in cleanroom air showers usually range from 1,000 to 2,000 CFM (roughly 1,700 to 3,400 m³/h), but the appropriate capacity varies by the chamber dimensions, number of nozzles, number of users, and contamination control requirements. Most importantly, the system should provide filtered air through the nozzles at a speed of roughly 20–25 m/s (4,000–5,000 fpm). There is no standard airflow rate for every installation, so the system's performance must be confirmed by reference to the manufacturer's specifICations, risk assessment, and validation.
_6kdxjXWjqQ
What is the recommended airflow rate for air showers in cleanrooms?
Air showers are critical components in cleanrooms, designed to remove contaminants from personnel and equipment before they enter controlled environments. Understanding the recommended airflow rates for these air showers is essential for maintaining cleanroom standards and ensuring compliance with industry regulations. This article outlines the key considerations regarding airflow rates in air showers and their impact on cleanroom efficacy.
1. Standard Airflow Rate
The standard airflow rate for air showers is commonly set at 70-100 FPM for comfort and efficiency. This range helps eliminate particles while ensuring user comfort.
2. Factors Affecting Airflow Rate
cleanroom classification: Higher classifications require stricter airflow standards.
User Activity: Increased activity may necessitate higher airflow to maintain cleanliness.
Air Shower Design: The design and configuration of the air shower can influence the effective airflow.
3. Compliance with Industry Standards
Adhering to industry standards, such as iso 14644, ensures that air showers operate effectively, maintaining a contaminant-free cleanroom environment. Regular monitoring and adjustments to airflow rates are critical for optimal performance.
The standard flow rate of air
Typical Flow Rate
The standard flow rate for air showers is approximately 200-300 feet per minute (FPM).
Regulatory Guidelines
According to international standards, such as ISO 14644-1, maintaining a consistent airflow is critical for cleanroom operations.
Airflow Measurement
Airflow is typically measured in cubic feet per minute (CFM) to ensure compliance with cleanroom standards.
Impact on Cleanroom Performance
Proper airflow rates directly influence the effectiveness of contamination control measures, ensuring a sterile environment.
What is a comfortable air flow rate?
A comfortable airflow rate in air showers is essential for user experience while maintaining cleanliness. Generally, a rate of 70-100 FPM is considered comfortable for personnel. This range minimizes discomfort while ensuring effective contamination removal.
1. User Comfort
A comfortable airflow reduces the risk of drafts.
2. Effective Contamination Control
Maintaining cleanliness is paramount.
3. Compliance with Standards
Adhering to guidelines ensures operational efficiency.
4. Balancing Comfort and Efficiency
Finding the right balance is crucial for cleanroom operations.
5. Monitoring Airflow
Regular monitoring helps maintain optimal conditions.
6. Adjusting for Conditions
Airflow may need adjustments based on external factors.

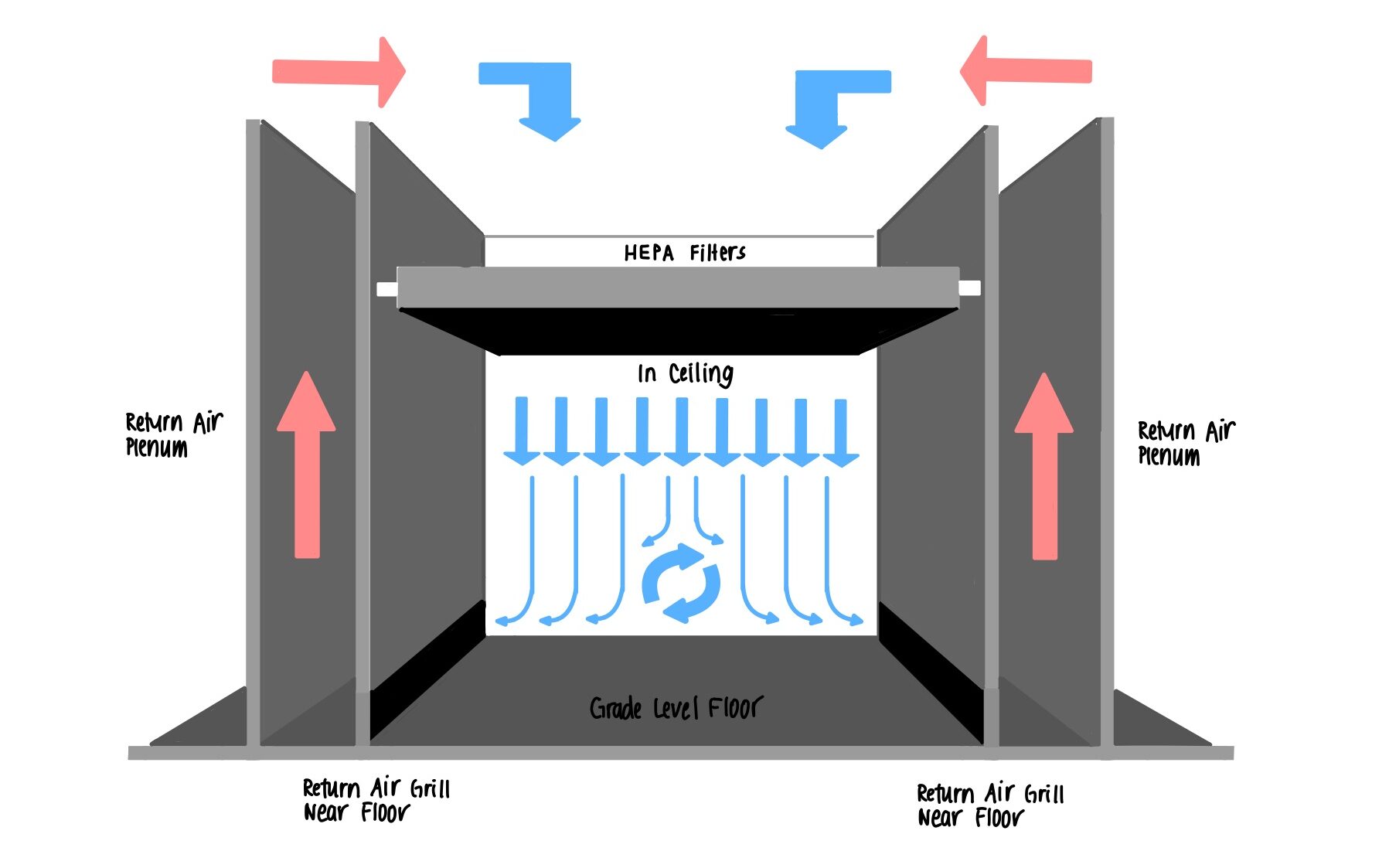

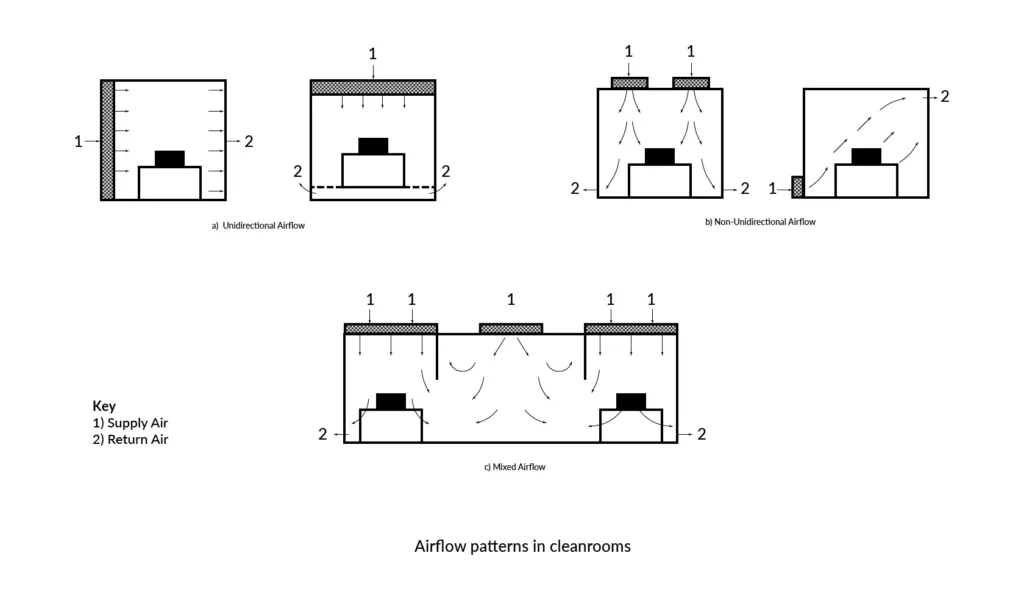

The type of airflow in a cleanroom
Laminar Flow
Provides a uniform flow of air.
Turbulent Flow
Allows for better mixing of air.
Importance of Airflow Type
Choosing the right airflow type is essential for maintaining cleanliness and meeting specific cleanroom requirements.

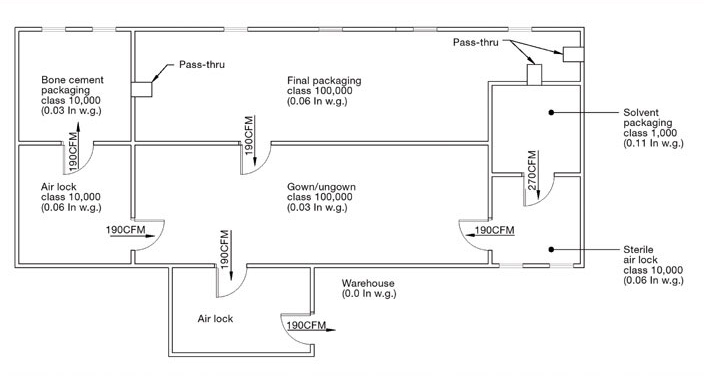

How do you calculate CFM for a clean room?
Calculating CFM for a cleanroom involves several factors.
1. Determine Room Volume
Calculate the volume of the cleanroom in cubic feet.
2. air changes per Hour (ACH)
Identify the required ACH based on cleanroom classification.
3. Calculate CFM
Use the formula: CFM = (Room Volume × ACH) / 60.
4. Adjust for Efficiency
Consider system efficiency and filter resistance in calculations.
Deiiang Company Case Study
Deiiang Company has successfully implemented advanced cleanroom technologies, enhancing operational efficiency and ensuring compliance with national standards. Our commitment to quality and innovation positions us as a leader in the cleanroom industry, contributing to the development of a robust and sustainable environment.
faq(Frequently Asked Questions)
What is the standard air flow capacity of air showers in clean rooms?
Normal air showers deliver 1,000 to 2,000 CFM of re-circulated, HEPA filtered air. The airflow required depends on the dimensions of the air shower and the number of nozzles, the number of people that use it and the application to be accomplished.
What should be the velocity of the airflow through the nozzle?

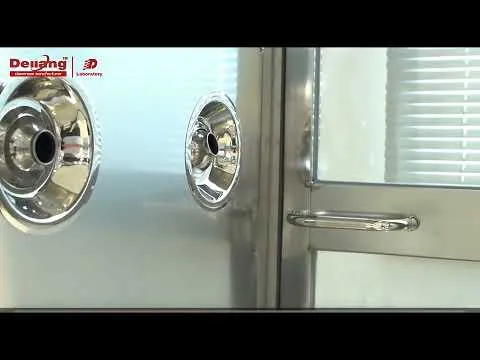

The nozzles generally work at velocity of about 20 to 25 m/s. This high air velocity is meant to remove the free particles from the cleanroom clothes as well as the surfaces of the materials.
Is the airflow rate the same as the nozzle velocity?
No. Airflow rate shows how many cubic meters of air are transported during a certain time period (the units used are CFM or m³/h), whereas nozzle velocity demonstrates how quickly the air exits the nozzle (the units used are m/s or fpm). Both values influence air shower performance.
Does the international standard iso 14644 provide an air shower air flow rate?
The ISO standard does not state a single air flow rate for all air showers. The air flow rate must be determined in accordance with a user requirement specification, Contamination Control Strategy, risk analysis, manufacturer recommendations and applicable GMP norms.
What are the main factors determining the air flow rate?
Some of the key factors include the size of the chamber, the number of and location of nozzles, the number of users, duration of cycle, the type of garment, filtration efficiency, cleanliness requirement and dimensions or configuration of the materials that go into the clean room.
How can you measure the air flow of an air shower?
The total air flow can be checked using air flow meters calibrated while nozzle velocity is usually measured with an anemometer. Keeping an appropriate testing regime is highly recommended.
Can the increase in the air flow increase the particle removal rate?
An increase in the air flow will improve the rate of particle removal up to the limits established by the operating specifications of the system but too much air flow can cause a number of negative consequences such as more noise, uncomfortable operation, higher energy costs and disturbance of the garments without bringing any palpable improvements in air shower performance.
How often should the air flow in an air shower be tested?
The air flow must be checked during commissioning and qualification and after changing the filter and performing any major maintenance activities as well as according to the risk based timetable determined according to the facility 的 procedures.
