How do I know if my air filter is dirty?

If your system does not have a pressure gauge and no recorded value, first look for the information on the manufacturer's documentation. Then contact an HVAC service contractor to measure the differential pressure based on recorded operating conditions. That will give you the number to follow rather than a guess.

Here is a quick check that can be done prior to working through the more detailed information, which is a practical way to begin when you ask how do i know if my air filter is dirty.

Just having symptoms doesn't necessarily indicate that the filter is dirty. Rather, these symptoms would provide the technician with a path to follow to make a measurement.

In the case of terminology, it is important to note that a loaded filter would be one in which dust build-up has accumulated, causing resistance to be generally higher. However, the level of resistance may vary based on filter design, airflow, nature of dust, etc.

If a filter is damaged such as torn or seal bypass, the resistance may indicate less resistance as opposed to more. The airflow issue may reside in the ductwork, fan or control, rather than within the filter [1].

The article then transitions through safe visual inspection, steps through pressure and airflow measurements, and continues through HVAC, cleanroom, and industrial settings. Each section answers, in turn, how do i know if my air filter is dirty in that particular context. The article ends with decisions concerning replacement, verification testing, and frequently asked questions. The numbers within the pages are associated with referenced models or serve to illustrate examples.

Tf7fW4O7YnI

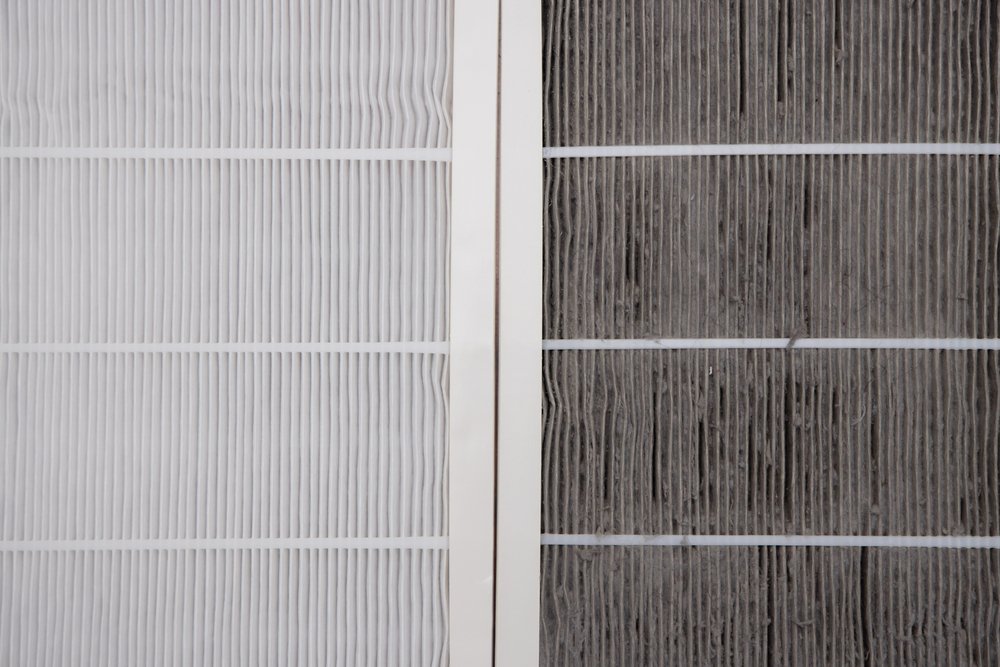

Visible Signs Your Air Filter Is Dirty

usrImQ6k53M

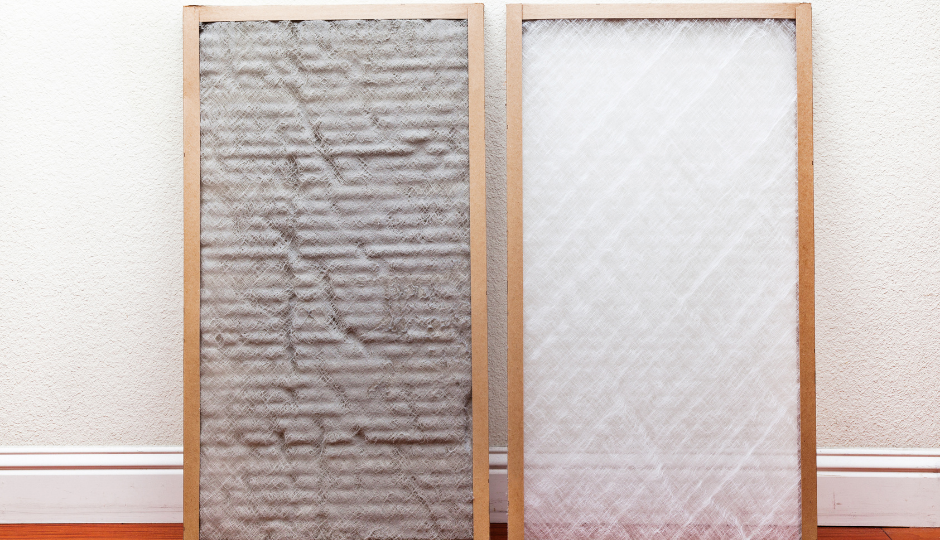

Visual inspection helps you to narrow down your search but does not give you a definitive answer. Discoloration serves as an indicator, but the colours of the media differ widely from one product line to another. Therefore, both statements, "gray indicates a clogged filter" and "white indicates a functioning filter" are misleading.

Among the ordinary signs your air filter is dirty, what you should be looking for are the dust build-up, the presence of damaged pleats, and improper sealing of the filter. If possible, take the same brand of filter and compare each filter visually. The results will be much more meaningful than relying on simply the colour of the filter.

It is important to know that just because a filter is gray does not mean that it has reached the end of its life cycle. Similarly, it is important to understand that just because a white HEPA filter looks clean does not mean that it is functioning, if only because HEPA media captures particles smaller than those visible to the naked eye.

Thus, the physical indicators of a dirty filter should prompt a pressure measurement rather than automatically replacing the filter, which is why visual clues and clogged air filter indicators are treated differently.

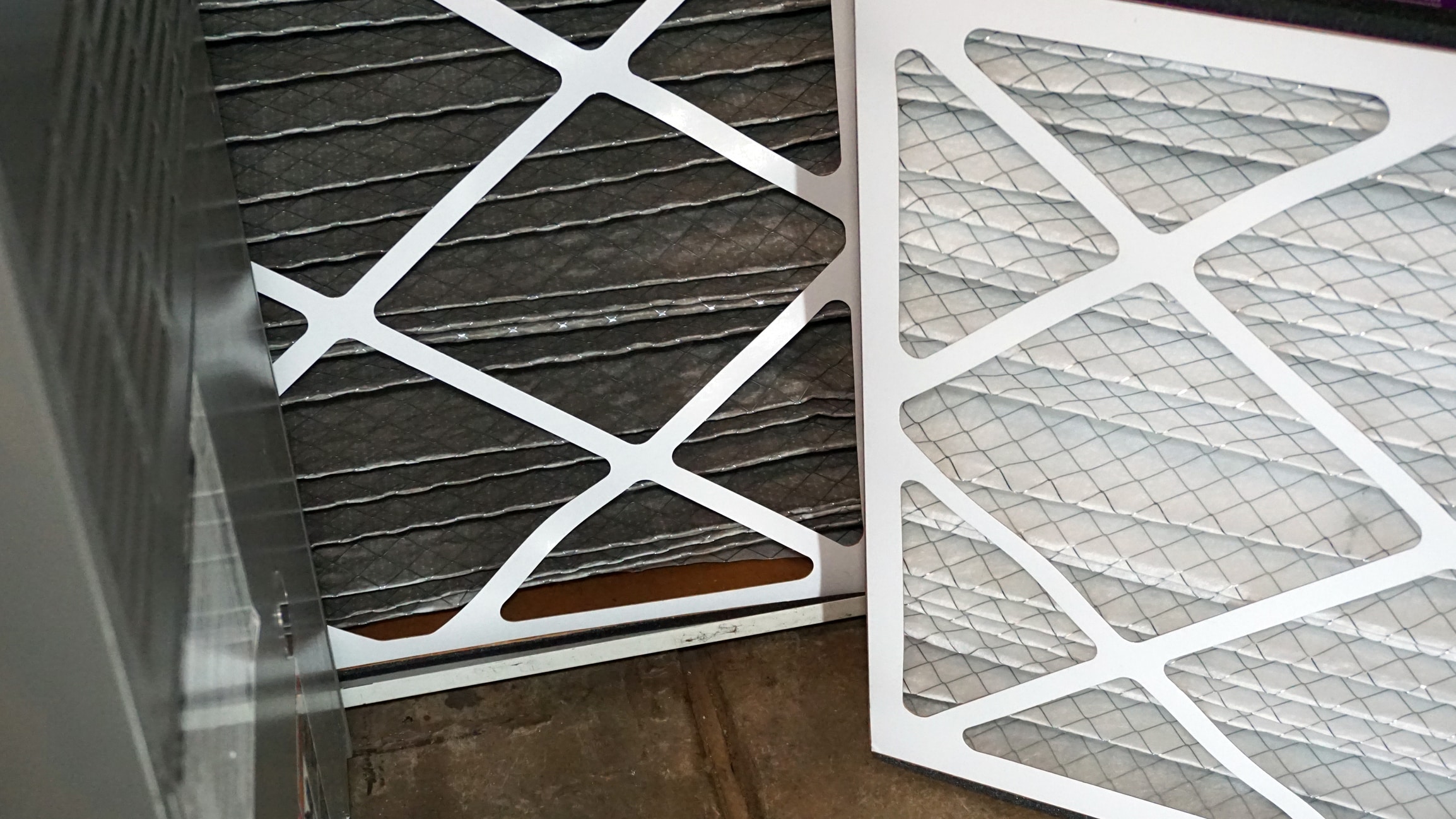

Visual Inspection Steps for General HVAC Filters

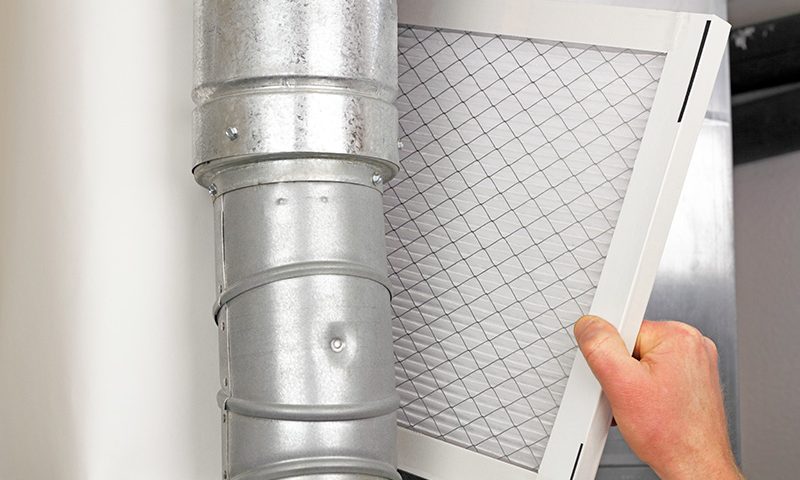

Always turn off the system when working on any equipment. Always follow the manufacturers' instructions for opening the designated equipment access points. Do not perform maintenance on pressurized or potentially toxic equipment until you are properly trained on how to do so. If any process involved the use of chemicals or biological agents, please contact a qualified service technician.

Before you intervene with the filter, you need to take a picture of it so that you could have a reference point; the signs your air filter is dirty that you record today become the baseline for the next inspection.

You should also keep in mind that knowing when to ｒｅｐｌａｃｅ dirty air filter media is not the same as knowing when a filter is loaded, so a dirty filter does not necessarily mean that it will be changed at the same time.

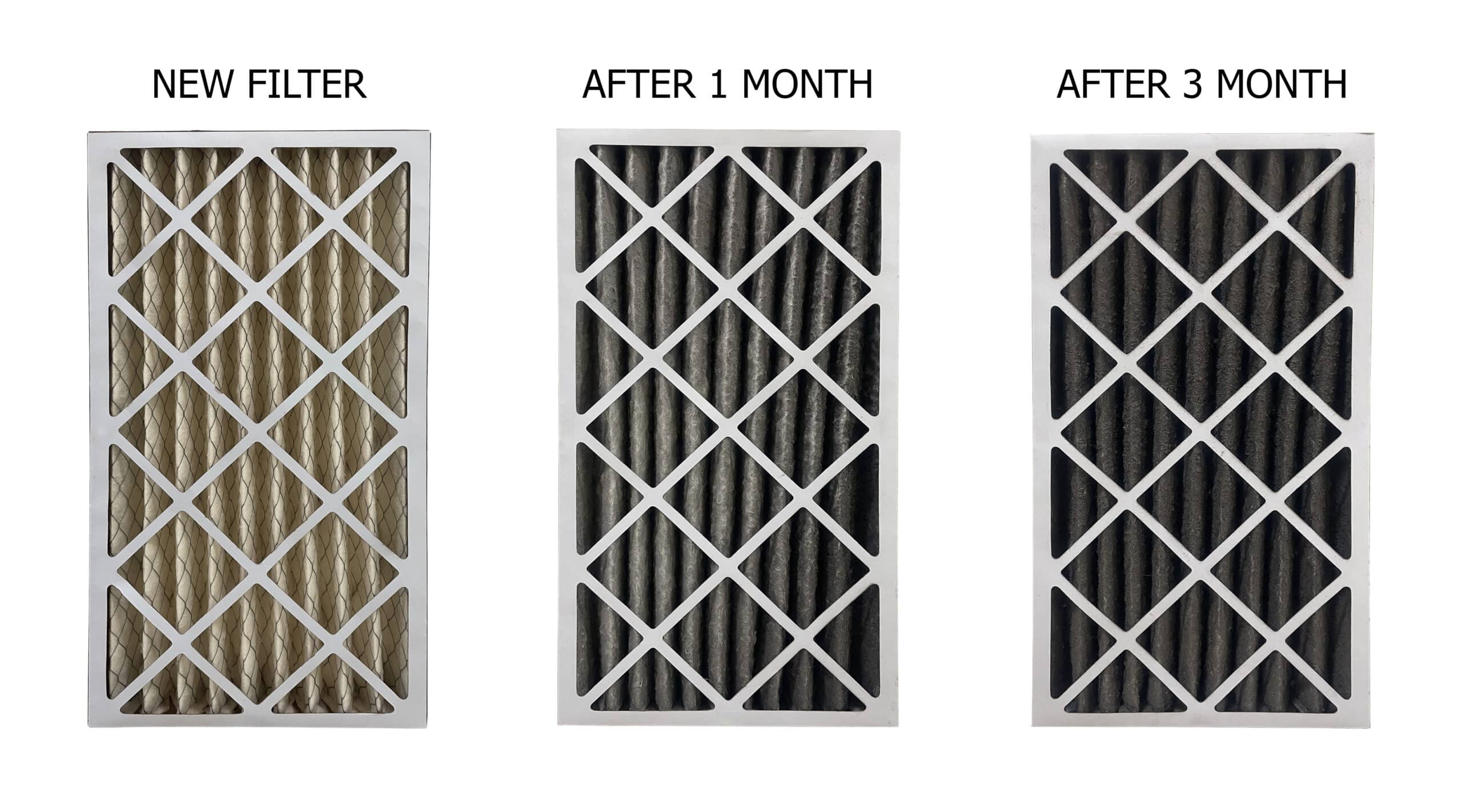

Dirt Accumulation Patterns That Indicate Failure

Dirt does not equally accumulate and this is why some patterns of dirt are used to explain whether there could be a problem existing or not. And this is not always the case since no one can be one hundred percent sure about the existence of a problem only based on the presence of one specific pattern.

A dark line at the side of the filter can imply that there was some leaking through the housing. If there is more dirt in the center of the filter, then there is an indication of the presence of bad airflow in the housing and other similar explanations.

But before concluding the following pattern regarding the cause of the problem that is present, one should confirm if there was an equal amount of water flowing through the device instead of doing so.

Table 1: Pattern of the problem, possible cause of that problem and what needs to be checked.

Performance-Based Clogged Air Filter Indicators

The pressure drop and airflow are, however, the vital clogged air filter indicators, if you take into consideration the measurement position, the airflow condition, and whether this reading is made based on filter only or system differential pressure [1].

Reading measurements on the filter alone will not be comparable with those taken across the air handling unit. Make sure you state which method you are using before comparing the values to any limits.

Pressure Drop Thresholds for Clog Detection

There is no single end-of-life pressure value. The practice of "twice the clean resistance" is a guideline that does not have any meaning for each class of filter. The best choice is to use the clean resistance and established final resistance specific to your filter type.

The table above gives you the explanation of the patterns you may see. The next table describes what each measure conveys and what to do next.

Table 2: Measurement instruction

The Deiiang catalogue data demonstrates an example of this. The 592 mm x 592 mm x 292 mm H14 combined HEPA filter has a maximum airflow of 2500 m3/h and has an initial pressure drop of 220 Pa or less and a final pressure drop of between 400 Pa and 600 Pa according to the catalogue. These values pertain to that particular filter and are not reflective of all H14 filters.

Taking into account that F5 and F8 are legacy EN 779 classes, it is important to note that this standard has been withdrawn. It has been replaced with the ISO 16890 method of classification of filtration products under the ePM1, ePM2.5, and ePM10 specifications. It is also vital to understand that the F8 classification should not be treated in the same manner as the ePM ratings since the two systems are not interchangeable.

Airflow Reduction Measurements in Duct Systems

Airflow is considered as the second indicator to be measured. It is important to use some type of traverse method rather than a one-point measurement, as this will not provide you with an average airflow of the duct.

The calculations are simple to do as well. A duct 0.5 m x 0.5 m with air at 4 m/s will yield an airflow of 1.0 m3/s. If velocity falls to 3.4 m/s, airflow drops to 0.85 m3/s, which represents a 15% reduction in airflow. This number is used for illustration purposes only.

One should only treat a 10% reduction in airflow as an inquiry trigger if a cutoff figure is provided by the owner of the facility or designer. Otherwise, it is important to merely report the decline.

How to Tell if HVAC Air Filter Is Dirty

Knowing how to tell if HVAC air filter is dirty means reading the system, then ruling out other causes. It also means applying the same how to tell if HVAC air filter is dirty test in the same place under the same flow conditions. Poor airflow, short cycling, excessive runtimes, icing, and overheating can also result from something other than a dirty filter.

Start with the cheapest checks. Make sure that the filter fits and is installed correctly, then check for blocked Return Air ducts, registers that are shut, coil condition, and the fan settings. If problems persist, call a professional instead of changing filters repeatedly.

HVAC System Operational Symptom Checks

These dirty air filter symptoms justify checking the filter, and the same dirty air filter symptoms can also come from a blocked duct or a failing fan, so none can confirm a dirty filter on their own.

• Less heating or cooling at the last registers.
• Short cycling, which indicates a control or sizing problem in many cases.
• Longer cooling time to the set temperature value than was the case the previous season.
• Frost or moisture on coils for cooling systems.
• Multiple trips of the hot limit switch or hot motor.

Icing, multiple limit trips, or ongoing dirty air filter symptoms after filter replacement call for professional assistance. Such patterns indicate that the problem lies somewhere other than the filter.

Energy Consumption Spike Diagnosis

Energy alone is not a good indicator. A 100 Pa rise in pressure does not produce a specific amount of fan power, as the type of fan, fan speed control and system curve change the data. Every percentage referenced must be associated with a particular system and measurement technique.

Comparing your bills from year to year does not take into consideration changes in outdoor weather, occupancy, tariffs, or equipment use. The rise in bill amounts signifies a subject for investigation but not evidence of filter loading.

cleanroom air filter Dirty Signs

When it comes to determining whether your cleanroom filter is dirty, the cleanroom air filter dirty signs are almost always a matter of performance rather than what can be seen. HEPA and ULPA filter media can trap particles much smaller than a size where any visible dirt on the filter face is noted.

To interpret data accurately, however, requires caution. An iso 14644 classification is based on concentrations of airborne particles at a historical level, using a certain size of particle limit and specific conditions during the sampling process with stated criteria [2]. Classification provides the answer to one question, while a routine monitoring signal provides another and results of a filter leak show yet another.

Thus moving from iso class 6 to iso class 7 is not necessarily proof that there is a dirty filter. The change can be attributed to occupancy, process activity inside of the cleanroom, airflow, or sampling differences. Thus the change should be viewed as a cue for investigation and should not lead to a conclusion in itself.

Particle Count Deviation as Primary Indicator

Your contamination control program needs to establish alert and action limits; they should not be established from a general percentage. Alert and action limits must be based on your target classification, type and location of sampling, the instrument used, and the general variability under normal operating conditions. Before determining a baseline, ensure that you check the same sampling conditions and instruments to compare the data accurately.

The Deiiang-reported project case is an example. An iso class 6 pharmaceutical packaging cleanroom came under scrutiny due to a high level of ambient particles with little plenum height. As a result, the filter began to show counts higher than the alert level after around 500 Pa of pressure was exhausted from the filter.

The H14 filters that Deiiang provided have a low profile and are composed of high-efficiency filters, measuring 592 mm x 592 mm x 292 mm and with a flow rate of 2500 m3/h. The surface area of the media of the filter is 20.04 m2, and the initial resistance of the filter is no more than 220 Pa. The filter includes F7 pre-filters, sealing gaskets, and other components.

The customer conducted per unit aerosol challenge testing after replacing the filters. Following this process, the customer was able to return the particle counts to the specified level.

Visual and Physical Cleanroom Filter Inspections

The physical inspection is a necessary complement to particle counting and leak testing, and cleanroom air filter dirty signs are therefore read together with the monitoring record.

• Downstream filter face: look for evidence of dust streaks.
• Filter housing seal and gasket: look for signs of dirt tracks.
• Gel seal channels: check for worn gel seal to verify there are no gaps.
• Frame corners: assess the frame corner condition for cracks or deformation.
• Sampling ports: check that the sampling ports are correctly located and sealed.

Another cleanroom will have downstream of a HEPA filter, although this dust could also have resulted from other contamination. Therefore, it is necessary to verify the source of the contamination before attributing the dust downstream of the HEPA to a leak. It is recommended to utilize the term aerosol challenge except when an actual challenge is known.

Industrial Air Filter Dirt Check Protocols

When performing an industrial air filter dirt check, the process is defined by continuous monitoring and process-based limits. Since downtime is costly, differential pressure trending is used instead of calendar-based inspections.

EN 1822 and ISO 29463 are not independent from each other in the standard documents, but you must indicate the specific edition and class you are referring to throughout your work [4][5]. Operational procedures need to conform to the process requirements and manufacturer's specifications.

Heavy-Duty Industrial Filter Inspection Methods

The following industrial air filter dirt check frequencies represent a sample site plan and should not be interpreted as universal requirements and must be established based on risk, the criticality of process, and operational data.

• Differential pressure should be recorded on a daily basis in the sample schedule.
• Emissions output must be tested monthly in the location where process air is exhausted.
• Pre-filter loading should be examined weekly as it protects the last stage.
• Duct transitions must be checked for dust accumulation.
• The actual fan curve must be compared with the theoretical fan performance every three months.

Deiiang has produced a catalogue that specifies that an F8 glass-fibre bag filter with a flow rate of 2050 m3/h has a media area of 3.18 m2, an initial pressure drop of less than 100 Pa, and a pressure drop range of 250 to 400 Pa. This last block is model-specific and is therefore not indicative of a universal 300 Pa tolerance level and only applies when the test is performed under the conditions specified in the catalogue.

Process Efficiency Impacts of Dirty Filters

A loaded filter can limit air movement, restricting drying, coating, and/or cooling rates. The extent of this restriction can vary based on the specific process in question, and you should quantify effects for your own specific case.

For example, if a coated line were to lose 15% of air movement and air flow limitation would have a negative effect on productivity, the speed of the line would have to drop in response. The exceeding of a final resistance value, however, does not necessarily indicate that the media will tear or that captured particles will be released. They represent different failure modes. Before concluding anything, inspect physical damage and pressure loading.

Hidden Bad Air Filter Warning Signs

Some bad air filter warning signs may not always be apparent on gauges, as they may present themselves through different signs, i.e., indoor air quality complaints or a change in system sounds. It is crucial to differentiate between the two before determining filter diagnostics.

Headaches, body irritation and allergy-like symptoms are very generalized symptoms that do not help identify a dirty filter but many other illnesses or causes. Therefore, any complaints that are given by occupants should arouse the need for investigation within the indoor atmosphere.

This graphic is merely illustrative; it illustrates a hypothetical relationship, which has not been measured, so it should be replaced with locally collected monitoring data.

Indoor Air Quality Degradation Symptoms

Pay attention to the following bad air filter warning signs and investigate the reasons instead of making presumptions.

• Dust accumulation on surfaces in less than a week after cleaning.
• Recurring complaints about eye, nose, or throat irritation.
• Seeing haze or fog in beams of light.
• Changes in humidity or odour detected.
• Symptoms that disappear after the individuals leave the area.

Unusual System Noises and Odors

A whistling sound may signal a leak or blockage somewhere within a housing or an O-ring seal. It may not mean that a filter is saturated, as sounds are also affected by fan speed, duct design, and damper settings.

A musty smell can arise from several places, including sump pan, duct lining, and stagnant water. The smell may often be eliminated without the need to change the filter. Before changing the filter, check for moisture and make sure that there is no leakage. Disposable filters cannot be cleaned and reused, but the manual should be referred to for cleaning instructions in case they are the reusable type.

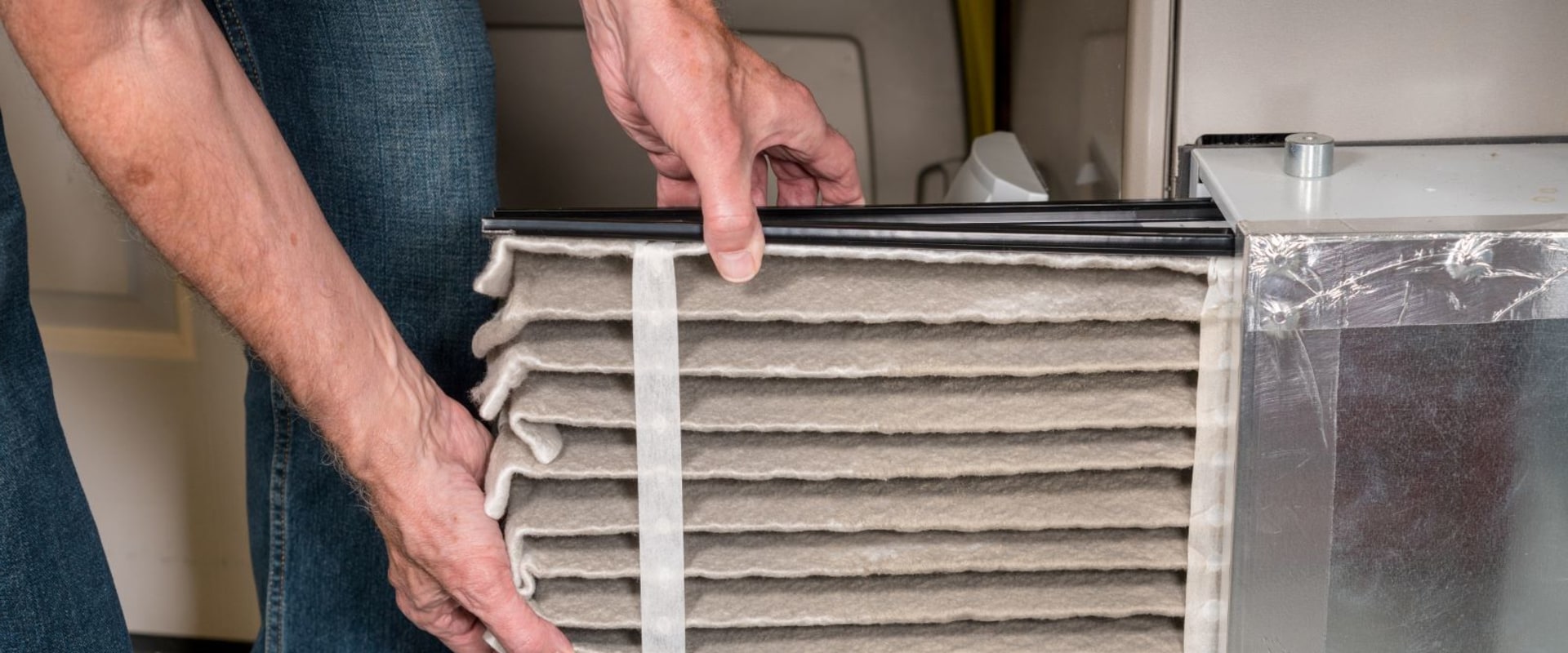

When to ｒｅｐｌａｃｅ Dirty Air Filter

The decision regarding when to ｒｅｐｌａｃｅ dirty air filter is governed by three different triggers: timing, a pressure threshold and visible damage. The first occurrence takes precedence, provided the pressure threshold comes from the manufacturer's specification for that model.

An interactive decision tool can be used. After making a selection on the type of filter, application, visible damage, and a pressure reading, the next recommended course of action and the threshold limit to be used can be found.

A printed inspection checklist can also be extremely helpful, as well as a pressure log. Both are general tools for organizing observations, not certified procedures tied to any single manufacturer.

Replacement Timing by Filter Type and Application

The actual service life of the filter primarily depends on the level of loading of dust, duration of the operation, velocity of air passing through it, and so on. It must respect the manufacturer's guidelines and monitoring records.

Table 3: Common replacement intervals and applicable guidelines

MERV is a certification and not a filter type or replacement interval. The classification EN 1822 cannot by itself give an indication of when the filter must be changed. Depend on the manufacturer's rated limits, and only then apply the data for your facility.

Emergency Replacement Trigger Conditions

Whenever you have verified any of the above occurrences, you must make a prompt replacement.

• Tearing, holes or separation of the media from the frame.
• Identification of the existence of bypass or downstream contamination.
• Water infiltration or microbial growth on the media.
• Leakage verification of the gasket failure.
• Identification of the damage on the media verified due to a sudden pressure drop.

A sudden differential pressure change may indicate a rupture or bypass, but it may also mean that a change in the flow rate has occurred, a bad sensor is present, or a measurement may have been taken inaccurately. Please ensure that the instrument is operating correctly and that the flow is verified.

In critical situations, ensure that the root cause is known prior to replacing components since an unknown condition may indicate a problem with something other than just the filter in use.

Standardized Dirt Verification Testing Methods

There are various testing methods that provide different answers to different questions. Mixing the test methods will lead to incorrect answers since the pressure drop test measures the pressure drop in the filter to evaluate resistance, the leak scan detects if the filter is working well, and classified testing evaluates whether the filter is performing according to standards. None of these is a routine substitute for verifying the manufacturer's limits for pressure along with service limits.

Make sure you use the appropriate tests in asking certain questions, documenting methods, instruments and conditions used for each data point.

Laboratory and Field Efficiency Testing

The laboratory classification testing will use a specific challenge aerosol and test method for the air filter. The EN 1822 classification is used for EPA, HEPA and ULPA filters based on filtration efficiencies at the most penetrating particle size while using separate limitations for class H13 and class H14 filters [4].

The commonly stated figure of 99.97% belongs to the U.S. HEPA convention rather than the EN standard for the classification of H13 filters. Therefore it is important to cite the standard and the test method when giving a percentage.

The equation is much too often misstated. Efficiency is equal to 100% - (concentration downstream divided by concentration upstream x 100%). Therefore efficiency is equal to 100% - penetration for an approved test method. It is incorrect to present the formula as merely subtracting one percentage from another.

On-Site Leak Detection for Clogged Filters

Leak detection is an integrity test, not a loading test. It does not indicate whether or not your filter is blocked. Instead, it indicates if your filter and the seal to your filter are leaking a larger amount of aerosol than your pass limit determined by the standard.

Do not depend on generic scan speeds or penetration limits. The scan speed, probe size, aerosol used and acceptance limit will differ based on the standard used, the grade of the filter and the procedure followed at your facility. Always refer to the applicable standard and your facility's protocols while recording the method used.

Note that MIL-STD-282 specifies the DOP aerosol test. However, it should be viewed as a historical standard in terms of a universal field method due to the improvements made in aerosol filtration since the writing of the standards.

Frequently Asked Questions

How often should I check if my air filter is dirty?

In residential settings filters should be checked monthly by visual inspection, making sure to reference the manufacturer's guidelines. For commercial and cleanroom environments it is necessary to monitor pressure, the frequency of which will be determined by risk and operational conditions. Any difference in comfort levels or airflow indicates that checking may be necessary sooner than scheduled.

Can a dirty air filter cause higher energy bills?

Possibly, as a full filter creates more resistance which prevents the fan from operating efficiently. This phenomenon, however, will depend upon a variety of factors such as fan type as well as the speed control methods utilized; thus there is no set percentage to use. Use a bill increase or change as an indicator to investigate potential problems while taking into account historical information.

What's the difference between dirty and clogged filters?

Contaminated signifies that dirt has built up but air movement could still be adequate. Blocked means that pressure resistance has gotten to the rated specification for that product and there has been substantial loss of airflow. There is damage and bypass which is a different situation both where a filter could still lose pressure.

Do cleanroom HEPA filters show visible dirt before failing?

No, it is usually not visible. HEPA material captures particles smaller than seen by the naked eye, so often the filter looks clean when it has lost its effectiveness as well as seal integrity. Use particle monitoring history along with pressure readings and leak checks. Physical inspection will focus on seals, gaskets, as well as downstream areas.

Can I clean a dirty air filter instead of replacing it?

Only filters made or labeled as washable can be cleaned. Disposable HEPA, ULPA, and almost all panel or bag filters cannot be washed since washing destroys the media and nullifies performance. Follow the instructions for your particular product and you should not do any washing with any filter that has been contaminated.

What happens if you run a system with a dirty filter?

Air flow may commence dropping while fan load increases based on the unit. In cleanroom or industrial applications there can be extra contamination and product hazards with the presence of a loaded or damaged filter. If there are ongoing issues following a filter replacement then problems will not be filter related.

References

• [1] ASHRAE 52.2, Method of Testing General Ventilation Air-Cleaning Devices for Removal Efficiency by Particle Size. Test method; no general end-of-life pressure rule established.
• [2] ISO 14644-1, cleanrooms and associated controlled environments, Part 1: Classification of air cleanliness by particle concentration.
• [3] iso 14644-3, Cleanrooms and associated controlled environments, Part 3: Test methods.
• [4] EN 1822-1, High efficiency air filters (EPA, HEPA and ULPA), Part 1: Classification, performance testing, marking.
• [5] ISO 29463-1, High-efficiency filters and filter media for removing particles from air, Part 1: Classification, performance testing and marking.
• [6] EN 779, Particulate air filters for general ventilation, determination of filtration performance. Withdrawn; retained as historical context only.
• [7] ISO 16890-1, Air filters for general ventilation, Part 1: Technical specifications, requirements and classification system based upon particulate matter efficiency (ePM).
• [8] IEST-RP-CC001, HEPA and ULPA Filters. Recommended practice.
• [9] MIL-STD-282, Filter units, protective clothing, gas-mask components and related products: performance-test methods. Historical reference.
• [10] Deiiang filter product catalogue, cleanroomequips.com. Company catalogue data; product designer Jason Peng. Not independent validation.
