Introduction

Cleanrooms are specialized engineering systems designed to control airborne particle concentrations, temperature, humidity, and pressure differentials to achieve specific environmental cleanliness levels. These controlled environments are critical in industries where even microscopic contaminants can compromise product quality, safety, or research outcomes.

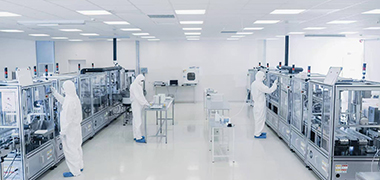

Cleanroom Facility Image

This comprehensive guide explores the international standards, national regulations, and industry-specific requirements that govern Cleanroom design and operation. Whether you're designing a pharmaceutical manufacturing facility, an Electronics assembly plant, or a medical research laboratory, understanding these standards is essential for regulatory compliance and operational success.

Why Cleanroom Standards Matter

Compliance with cleanroom standards is not optional—it's a regulatory requirement in most industries. Beyond compliance, properly designed cleanrooms:

Ensure product quality and consistency
Protect sensitive manufacturing processes
Minimize contamination risks
Reduce operational costs through efficient design
Provide documentation for regulatory audits

International & National Standards Framework

ISO 14644 Cleanliness Classification

The globally recognized standard for CleanRoom Classification defines 9 levels of air cleanliness based on particulate count per cubic meter:

ISO Class	Max Particles/m³ (≥0.5μm)	Typical Applications
ISO 5	≤3,520	Pharmaceutical filling lines, implant surgery
ISO 6	≤35,200	Medical device assembly, compounding pharmacies
ISO 7	≤352,000	Vaccine production, electronics cleanrooms
ISO 8	≤3,520,000	Food packaging, automotive painting

ISO Classification Chart

GB 50073-2013: China Cleanroom Standards

China's mandatory cleanroom design code covers all aspects of facility planning and construction:

Location Requirements: Air intakes must be ≥50m from traffic arteries
HVAC Design:

Main duct velocity: 6-10 m/s
HEPA branch velocity: 2-5 m/s

Personnel Management:

≥4 m² per person in gowning areas
1 air shower per 30 personnel (≥15 sec cycle)

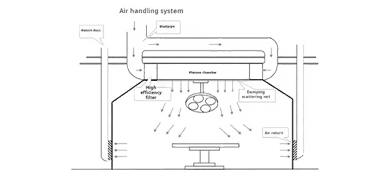

Cleanroom Airflow Diagram

The standard emphasizes contamination control through proper zoning, material selection, and validated operational procedures.

Key Technical Parameter Design Specifications

Control Parameter	Standard Requirements	Industry Application Examples
Air Filtration	3-stage filtration (Pre + Medium + HEPA/ULPA)	Pharmaceutical manufacturing, hospital ORs
Temperature Control	±1°C tolerance (typically 20-24°C)	Microelectronics, precision optics
Humidity Control	45±5% RH (range varies by application)	Lithium battery production, pharmaceutical packaging
Pressure Differentials	≥10 Pa between zones; ≥5 Pa between adjacent rooms	Bio-containment labs, sterile manufacturing
Airflow Velocity	0.45 m/s for unidirectional flow; ≥20 ACH for turbulent flow	Semiconductor manufacturing, compounding pharmacies
Microbial Monitoring	Dynamic air/contact sampling per ISO 14698	Sterile manufacturing, tissue culture labs

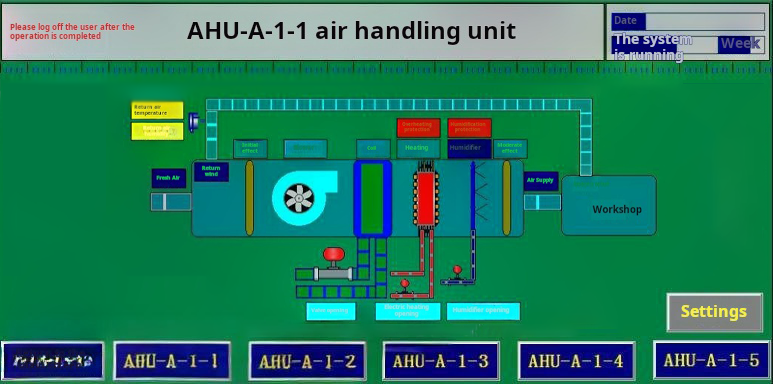

Cleanroom monitoring Station

Industry-Specific Regulatory Requirements

Healthcare & Medical Facilities

Materials: Antimicrobial, seamless surfaces (epoxy floors)
Layout: Unidirectional personnel flow patterns
Testing: Regular microbial surface monitoring
Standard: YY 0033-2000 (China medical device cleanrooms)

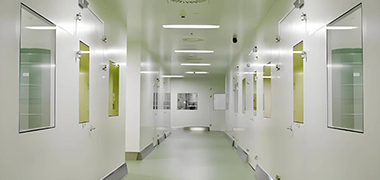

Medical Cleanroom

Pharmaceutical & Biotechnology

FDA cGMP & EU GMP Annex 1 compliance
Environmental monitoring: Viable particle counts
Surface testing: Contact plates (≥25 cm²/plate)
Validation: HEPA filter integrity testing (PAO challenge)
Documentation: Comprehensive cleaning validation protocols

Pharmaceutical Cleanroom

Electronics Manufacturing

Static control: Floor resistance 10⁵-10⁹ Ω (IEC 61340-5-1)
Vibration control: Equipment isolation systems
EMI shielding: Critical for measurement labs
Standard: SEMI F21 for microelectronics environments

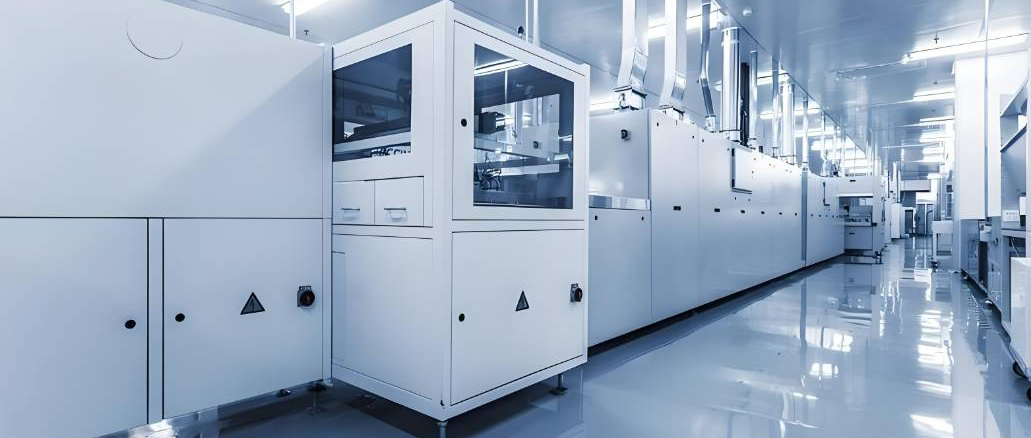

Electronics Cleanroom

Key Design & Implementation Principles

Integrated Approach

Combine architectural, mechanical, and operational controls for comprehensive contamination prevention

Validation Focus

Implement DQ/IQ/OQ/PQ validation protocols with comprehensive documentation

Human Factor Design

Over 50% of contamination originates from personnel - design effective gowning and training programs

Continuous Monitoring

Implement real-time particle monitoring with automated alert systems

Expert Conclusion

Effective cleanroom design requires balancing international standards with industry-specific regulations and practical operational requirements. The most successful facilities adopt a "standards as foundation, validation as measurement, continuous improvement as culture" approach. As regulations evolve (particularly iso 14644-2019 and EU GMP Annex 1 revisions), design teams must stay current through ongoing education and participation in industry standards committees.
