The Ultimate Guide to Semiconductor Cleanroom Design and Con
Maintaining ultralow particulate environments is critical for semiconductor fabrication yield and product reliability. This document details five essential technical controls for managing 0.1μm particle contamination.

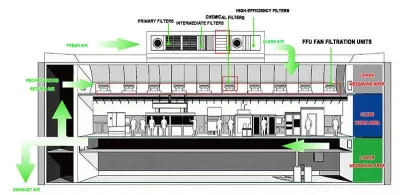

1. Advanced Air Filtration Systems

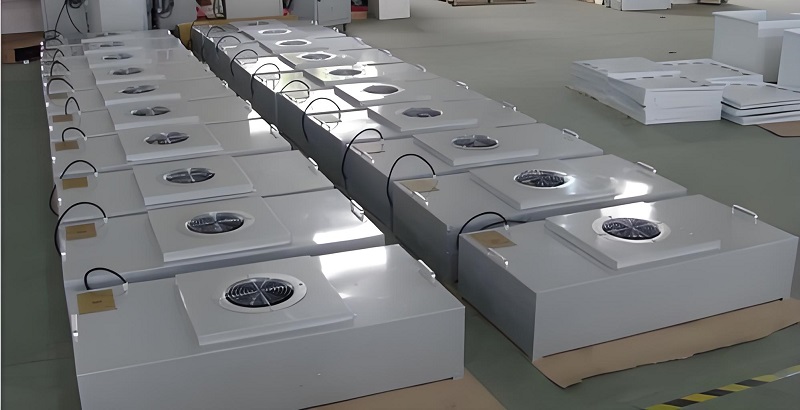

- ULPA Filtration: Implement Ultra-Low Penetration air filters with 99.999% efficiency at 0.12μm, exceeding standard HEPA performance for critical photolithography processes.

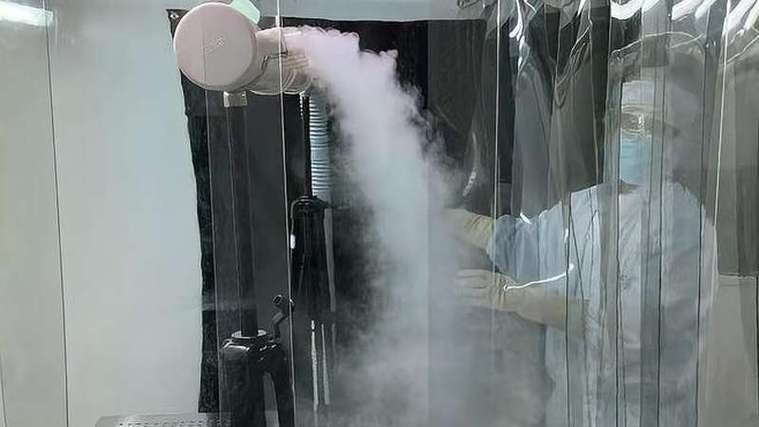

- unidirectional airflow: Maintain vertical laminar flow at 0.45 m/s ±5% with CFD-optimized diffuser placement to minimize turbulence and particle deposition.
- Filter Maintenance Protocol: ｒｅｐｌａｃｅ filters per iso 14644-9 standards with integrity testing every 6 months using PAO/DOP challenge testing.
2. Precision Environmental Controls
- Thermal Stability: Maintain temperature at 21°C ±0.25°C using redundant HVAC systems to prevent thermal drift affecting nanoscale fabrication.
- Humidity Management: Control RH at 45% ±3% with desiccant dehumidifiers to prevent electrostatic discharge (ESD) damage to wafers.
- Pressure Cascades: Implement 15 Pa minimum pressure differentials between zones with automated monitoring and VAV control systems.
3. Material and Personnel Contamination Control
- Material Certification: Require SMP S-20 compliance certification for all materials entering clean zones with outgassing limits below 5.0×10⁻⁹ g/cm²/min.
- Gowning Protocols: Enforce Class 10 SMP ESD-safe garments with double gloves, face masks, and shoe covers using air showers for decontamination.
- Personnel Training: Conduct quarterly contamination control training with particle count performance metrics for all fab personnel.
4. Surface and Equipment Engineering
- Non-Porous Materials: Install continuous welded vinyl flooring with coved bases and 304 stainless steel wall panels meeting iso class 3 cleanability standards.
- Equipment Design: Utilize radius corners on all surfaces and minimize horizontal planes following SEMI F72-0301 standards for contamination control.
- Modular Integration: Employ SMIF-compatible tool interfaces with mini-environments to maintain isolation during wafer transfer.
5. Continuous Monitoring & Maintenance

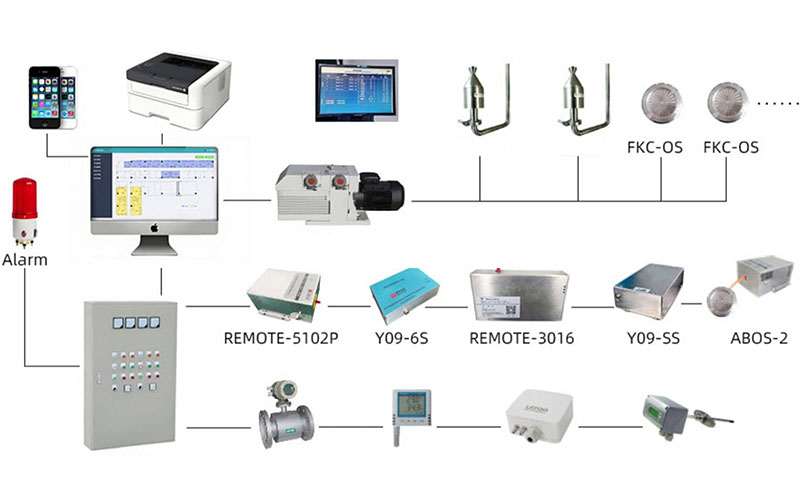

- Particle Counting: Deploy real-time laser particle counters with 0.1μm detection capability and 21 CFR Part 11 compliant data logging.
- Cleaning Validation:
- Preventive Maintenance: Implement predictive maintenance schedules using vibration analysis and thermal imaging for critical equipment.
