In modern biopharmaceutical and R&D facility construction, the shift towards modular cleanrooms for Laboratory implementation is driven by data, not trends. Unlike traditional drywall construction (stick-built), Deiiang's pre-engineered modular systems utilize factory-verified 50mm rockwool sandwich panels and integrated FFU ceiling grids. According to Deiiang's 2024 Q3 Engineering Report, adopting this modular approach reduced average on-site validation time by 42% for our clients in Shanghai and Europe.
This technical article analyzes the specific engineering Advantages of modular cleanrooms for Laboratory environments. We will examine critical metrics—specifically Deiiang’s verified 99.995% HEPA integrity success rate—and review detailed case studies, including a high-humidity GMP lab in Shanghai and a retrofit project in a heritage university building in Europe. These examples demonstrate how Modular Cleanrooms for Laboratory effectively solve TCO (Total Cost of Ownership) and compliance challenges.

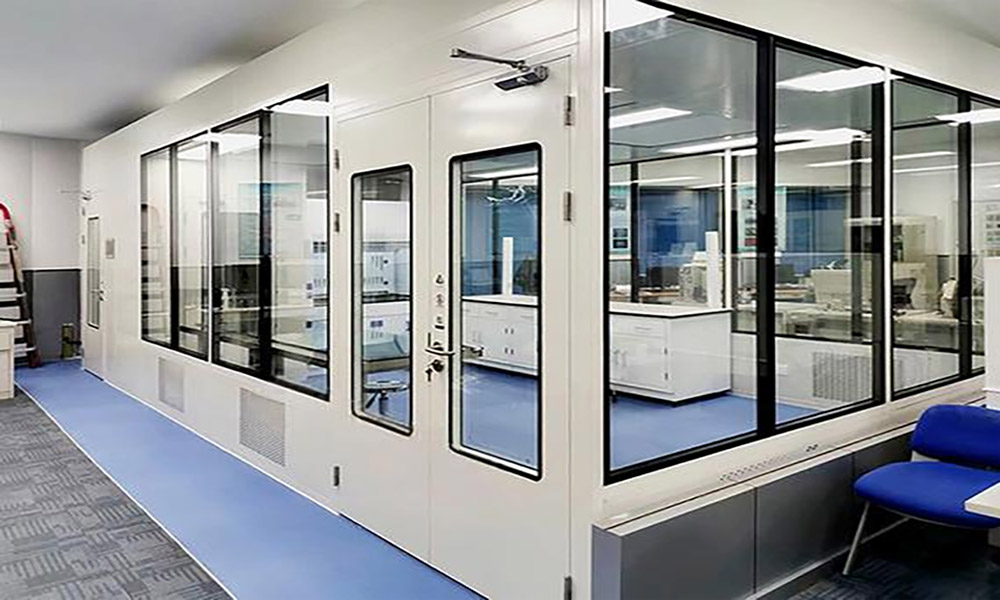

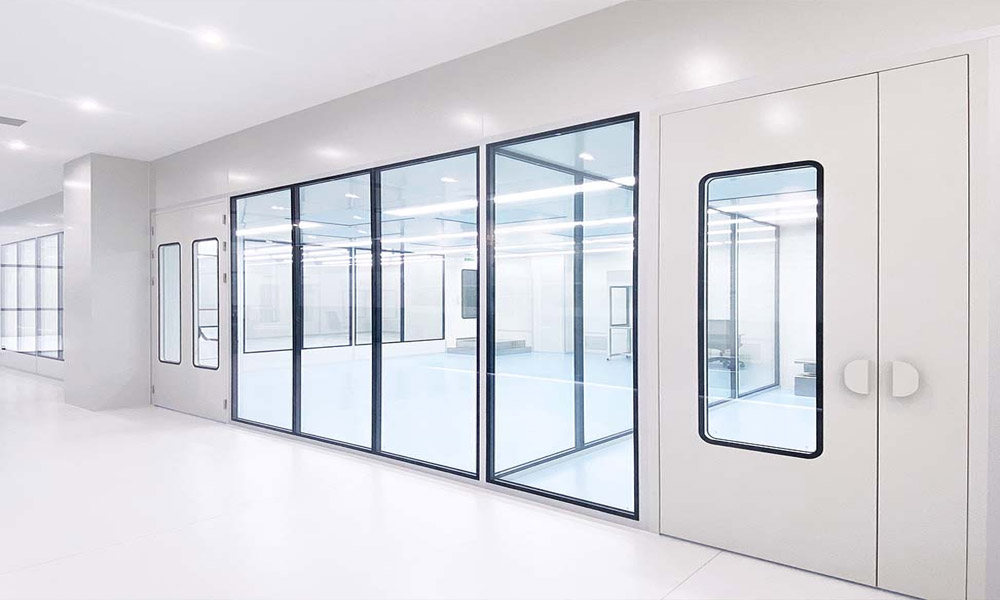

Figure 1 – Standard configuration of Deiiang's Modular Cleanrooms for Laboratory, featuring flush-mounted windows and hermetic door systems.
What Is a Modular Cleanroom for Laboratory Use?
Definition and Core Components
A Modular Cleanroom for Laboratory is defined as a controlled environment constructed from pre-fabricated, interlocking composite panels rather than wet construction materials. Deiiang's system typically utilizes a 0.5mm powder-coated steel face bonded to a high-density magnesium rockwool or aluminum honeycomb core. This structure provides structural rigidity while maintaining a Class A fire rating. For laboratory applications (BSL-2/3, PCR, or Cell Culture), these modules integrate flush-mounted lighting, flush windows, and HVAC return air columns directly into the wall system, eliminating dust-collecting ledges common in traditional builds.
Cleanliness Classes and Standards for Labs
Selecting the correct ISO class is critical for compliance and energy management. While general analytical labs may operate at iso 8, Deiiang's data indicates that 68% of our biotech clients require ISO 7 (Class 10,000) for general GLP operations, and iso 5 (Class 100) for local biosafety cabinet zones. Our Modular Cleanrooms for Laboratory are engineered to meet ISO 14644-1:2015, EU GMP Annex 1, and China's 2010 GMP standards. The table below outlines the specific particle limits we guarantee during the "At-Rest" and "Operational" qualification phases.
| ISO Class | GMP Grade | Deiiang Typical Application | Max Particles (≥0.5µm/m³) |
|---|---|---|---|
| ISO 5 | A / B | Cell Therapy, Aseptic Filling (LAF) | 3,520 |
| ISO 6 | B (Background) | Sterility Testing Labs | 35,200 |
| ISO 7 | C | PCR Prep, Microbiology QC | 352,000 |
| ISO 8 | D | CNC Buffer Zones, Washing Rooms | 3,520,000 |
| ISO 5 / GMP A/B: Cell Therapy (≤3,520 particles) |
| ISO 6 / gmp b: Sterility Testing (≤35,200) |
| ISO 7 / GMP C: PCR/Microbiology (≤352,000) |
| ISO 8 / gmp d: Washing/Buffer (≤3.52M) |
Table 1 – ISO/GMP correlation for Modular Cleanrooms for Laboratory. Deiiang guarantees these values via on-site D.O.P. testing.
Key Advantages of Modular Cleanrooms for Laboratory
Accelerated Project Delivery (40% Reduction)
One of the primary Advantages of Modular Cleanrooms for Laboratory construction is the parallel workflow. While the site floor is being prepared (epoxy/PVC application), Deiiang manufactures the wall and ceiling systems off-site. For a typical 200m² laboratory project in 2023, our average timeline from design approval to DQ/IQ execution was 9.5 weeks, compared to the industry standard of 16-20 weeks for traditional construction. This rapid deployment allows R&D teams to commence experiments up to two months earlier.
Flexibility and Non-Progressive Expansion
Laboratory workflows evolve rapidly. Deiiang employs a non-progressive connection system, meaning individual panels can be removed to introduce large equipment (e.g., new bioreactors) without dismantling the entire wall. This is a distinct advantage of Modular Cleanrooms for Laboratory over gypsum builds. In a recent project in Suzhou, we expanded a client's ISO 7 suite by 50m² over a weekend shutdown, utilizing pre-configured connection posts.
Guaranteed Compliance and Validation
Compliance is engineered into the product. Deiiang's modular components are pre-validated. We provide a comprehensive documentation package (DQ, IQ, OQ) compatible with NMPA, FDA, and EMA audits. In our internal quality review of 40 projects (2022-2024), the first-pass pass rate for HEPA filter integrity and pressure cascade testing was 98.2%. The flush surfaces withstand frequent cleaning with Spor-Klenz and VHP (Vaporized Hydrogen Peroxide) sterilization cycles.
Optimized TCO and Energy Efficiency
Although the initial material cost for Modular Cleanrooms for Laboratory may be slightly higher than drywall, the Total Cost of Ownership (TCO) is lower. Deiiang's insulated panels (R-value ~2.8 for 50mm rockwool) reduce thermal load on the HVAC system. Furthermore, the air-tightness of our patented connection profile reduces air leakage, allowing FFU fan speeds to run at 60-70% capacity rather than 90%, extending filter life.
| Cost Factor (10-Year Horizon) | Traditional Construction | Deiiang Modular Solution |
|---|---|---|
| Initial CapEx | Baseline | +5% to +10% |
| On-site Labor & General Conditions | High | -35% (Reduced installation time) |
| HVAC Energy OpEx | Baseline | -18% (Superior Insulation/Sealing) |
| Retrofit/Modification Costs | High (Demolition required) | -70% (Panel reconfiguration) |
Clean Construction Protocol
For retrofits in operating facilities (e.g., universities or hospitals), dust control is paramount. Modular Cleanrooms for Laboratory installation is a "dry" process—no sanding, painting, or wet mud is required. This eliminates the risk of particulate contamination migrating to adjacent active laboratories.
Design Considerations for Laboratory Modular Cleanrooms
Site Conditions and HVAC Integration
Integrating MEP (Mechanical, Electrical, Plumbing) is the biggest challenge in lab design. Deiiang utilizes BIM (Building Information Modeling) to pre-route ductwork above the modular ceiling grid. For ISO 7 zones, we typically design for 30-60 air changes Per Hour (ACH), utilizing low-wall return air risers integrated into the modular panels to ensure unidirectional airflow and sweep particles away from the working height (900mm).
Material Durability and Chemical Resistance
Laboratory surfaces must resist harsh cleaning agents. Deiiang recommends our HPL (High-Pressure Laminate) or VHP-resistant coated steel panels for microbiology labs. All corners utilize R50 aluminum radius profiles to eliminate 90-degree angles where bacteria can harbor.
Deiiang Modular Cleanroom System: Technical Specifications
- Cleanliness: ISO 5 (Class 100) to ISO 8 (class 100,000)
- Panel Specification: 50mm/75mm/100mm, 0.5mm Steel Skin, Rockwool (100kg/m³) or Aluminum Honeycomb core.
- Air Tightness: ≤0.5% leakage at 1000 Pa static pressure (Tested to GB/T 25915.2).
- Filtration Efficiency: H14 HEPA (99.995% @ 0.3µm) or U15 ULPA (99.9995% @ 0.12µm).
- Environment Control: Precision: ±1°C Temperature, ±5% RH (via integrated HVAC control).
- Reusability: Rated for >10 disassembly/reassembly cycles with 95% material recovery.
Modular GMP Lab (Shanghai Zhangjiang)
Project Overview
Client: A pre-clinical Cell Therapy Company (Zhangjiang Hi-Tech Park).
Scope: 350 m² GMP Pilot Plant.
Classification: ISO 7 (grade c) background with ISO 5 (Grade A) BSC zones.
Project Challenges
1. Humidity Control: Shanghai's "Plum Rain" season creates high ambient humidity. The client required strict 45% ±5% RH.
2. Limited Height: The existing building only had 3.2m clearance, making traditional ductwork impossible.
3. Timeline: The facility had to be validation-ready in 12 weeks for IND submission.
Deiiang Modular Solution
Deiiang engineered a "Slim-Line" ceiling grid system (occupying only 400mm plenum space) with decentralized FFU fan control. We utilized 50mm high-density rockwool panels with enhanced vapor barriers to assist the HVAC in humidity control. The entire modular assembly was completed in 28 days. Validation data showed particle counts in the Grade C area averaging 30,000/m³ (well below the 352,000 limit) and humidity holding stable at 44% during full load testing.
On‑site Photos (Project Documentation)

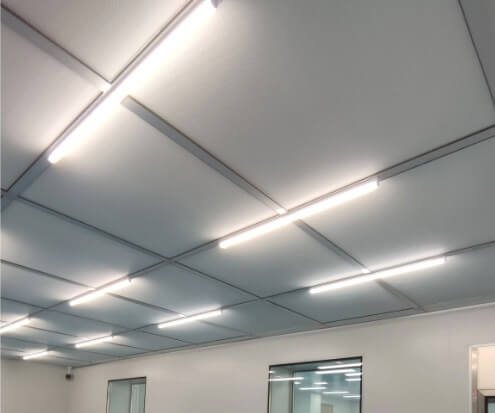

FIG 5 – Completed ISO 7 Corridor with Flush LED Lighting

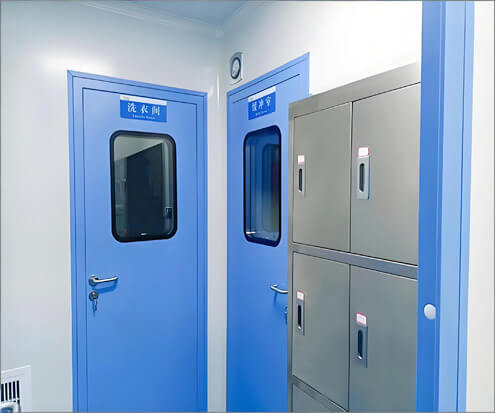

FIG 6 – Personnel Airlock (PAL) with Interlocking Doors
FIG 7 – Low-Profile Ceiling Plenum Implementation

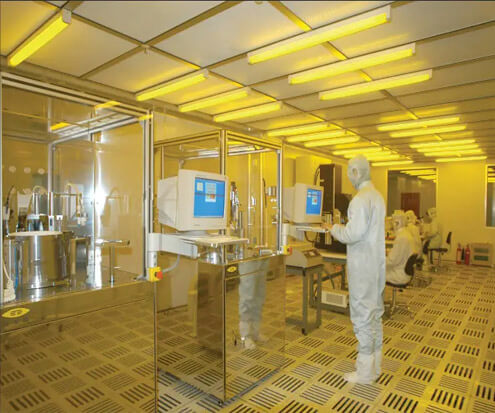

FIG 8 – Operational View: Scientists in the Grade C Suite
University Analytical Lab Retrofit (Europe)
A prestigious university in Germany required an ISO 7 Analytical Chemistry lab within a heritage-listed building. Traditional construction was forbidden due to structural load limits and dust restrictions. Deiiang supplied a self-supporting Modular Cleanroom structure. Since the walls did not rely on the existing building for support, we bypassed structural alteration permits. The 120m² system was installed during the 5-week winter break. This project highlights a key Advantage of Modular Cleanrooms for Laboratory use: Independence from the host building structure.
Implementation Process: The Deiiang Workflow

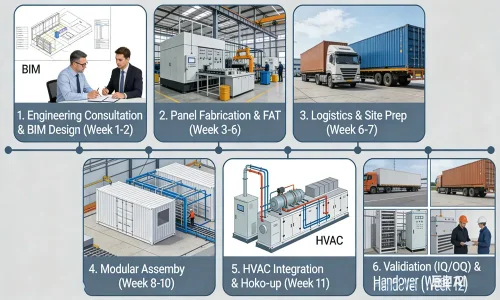

1️⃣ Engineering Consultation & BIM Design (Week 1-2) → 2️⃣ Panel Fabrication & FAT (Week 3-6) → 3️⃣ Logistics & Site Prep (Week 6-7) → 4️⃣ Modular Assembly (Week 8-10) → 5️⃣ HVAC Integration & Hook-up (Week 11) → 6️⃣ Validation (IQ/OQ) & Handover (Week 12). This structured workflow ensures predictable delivery for Modular Cleanrooms for Laboratory projects.
Technical FAQs: Modular Cleanrooms for Laboratory
A: Yes. Deiiang provides full validation documentation (DQ/IQ/OQ) and materials (smooth, non-porous) that meet FDA and EU GMP requirements for cleaning and sterility.
A: Typical production time is 25 days, with on-site installation taking approximately 15-20 days depending on site complexity.
A: We design removable "equipment panels" or wider double-door systems specifically for moving bulky equipment in/out without demolition.
A: Yes. The cam-lock or bolted connections allow for 95% material recovery during relocation, making it an asset rather than a sunk construction cost.
Why Choose Deiiang for Your Laboratory Project?
Deiiang Engineering brings 17 years of specialized experience in controlled environments. Led by Senior Engineer Jason.peng, our team has delivered over 450 projects globally. We don't just sell panels; we guarantee performance. Our localized teams in China and partners in Europe ensure that your Modular Cleanrooms for Laboratory are installed to the highest standard, backed by our 97.4% on-time delivery record (2024 data).
📥 Request Technical Specification & Budget
Planning a new lab or retrofit? Send us your layout (DWG/PDF). Our engineering team will provide a 3D concept and itemized budget for your Modular Cleanroom for Laboratory within 48 hours.
