Cleanroom standard-209E，ISO 14644-1，GMP

How are HEPA Filters Classified?

HEPA (High-Efficiency Particulate Air) filters are critical components in air purification systems, designed to capture a significant percentage of airborne particles. The classification of HEPA filters is based on their efficiency and the size of particles they can filter. Different standards exist globally, providing a framework for assessing filter performance.

Efficiency Ratings:HEPA filters are classified based on their efficiency in capturing particles of a specific size. The most common standard, EN 1822, categorizes filters into H13 and H14, with H13 filters capturing at least 99.95% of particles ≥0.3 micrometers, while H14 filters achieve a minimum efficiency of 99.995%. This quantification is crucial for applications requiring high air purity, such as hospitals and laboratories.

Particle Size Consideration:The efficiency of HEPA filters varies with particle size. According to the U.S. Department of Energy (DOE) standards, HEPA filters must capture a minimum of 99.97% of particles that are 0.3 microns in size. This particular size is considered the most penetrating particle size (MPPS), where filters have the lowest efficiency. Thus, effective classification must account for this critical size metric, ensuring reliable performance in diverse environments.

Filter Construction and Material:The classification of HEPA filters also involves the materials used in their construction. Typically, HEPA filters are made from fiberglass, synthetic materials, or a combination of both. The International Organization for Standardization (ISO) provides guidance on materials, which influences filter performance and lifespan. For example, filters constructed with higher density media can improve particle capture rates significantly.

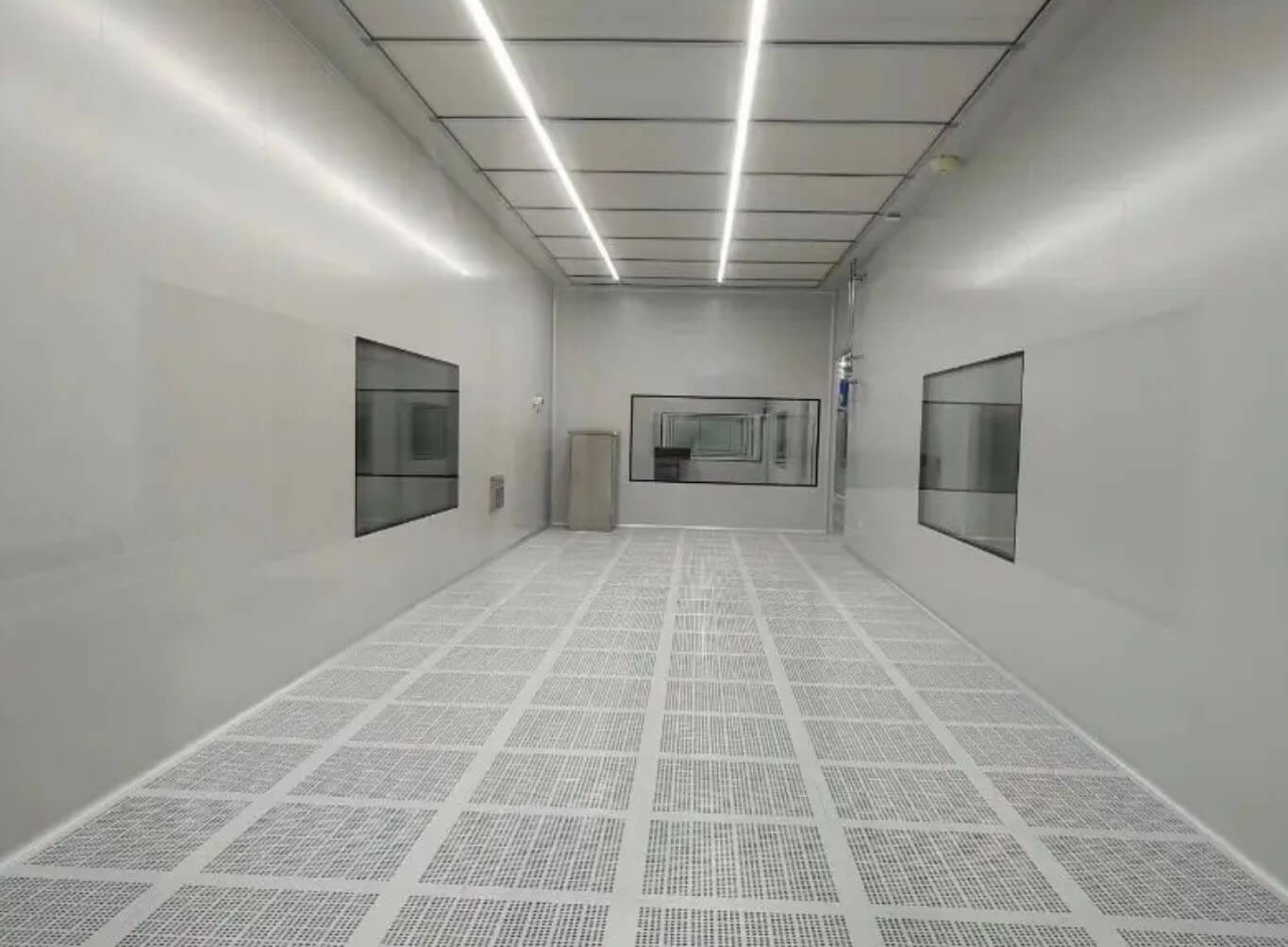

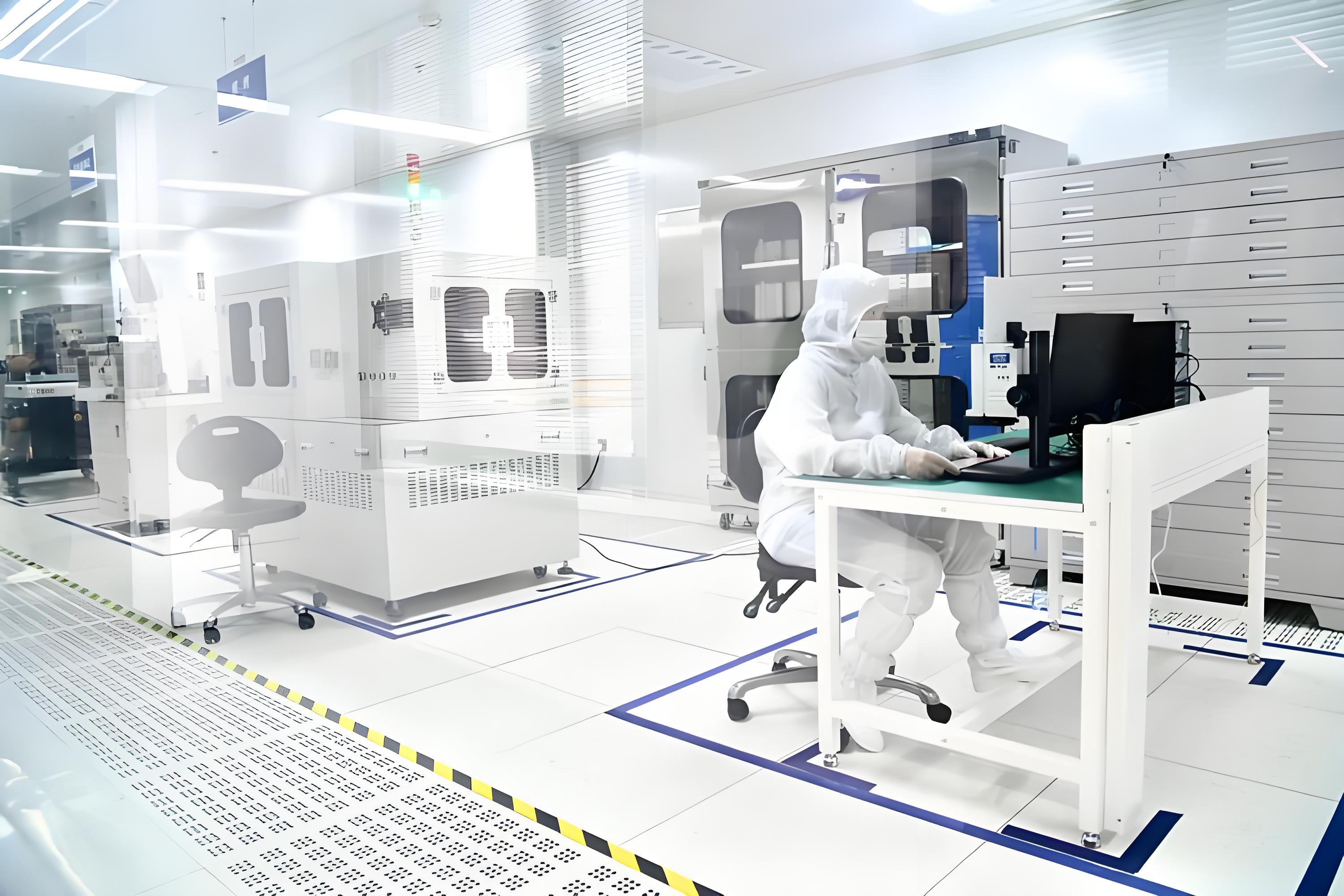

Cleanrooms are vital controlled environments where airborne particle concentration is meticulously managed to protect sensitive processes in industries like pharmaceuticals, biotechnology, Electronics, and medical device manufacturing. The foundation of Cleanroom design, operation, and validation lies in adhering to established Cleanroom Standards. The most significant among these are the historical FS 209E, the globally recognized ISO 14644-1, and the regulatory framework of Good Manufacturing Practice (GMP). Understanding these standards is essential for achieving the required level of cleanliness and ensuring product quality and safety.

1. The Cornerstone: iso 14644-1 Classification

Role:ISO 14644-1 is the primary international standard for classifying cleanrooms based on the concentration of airborne particles.
Mechanism:It defines cleanroom classes (ISO Class 1 through ISO Class 9), specifying the maximum allowable number of particles per cubic meter of air, categorized by particle size.
Application:This standard provides the fundamental framework for designing, testing, and monitoring cleanrooms globally.

Design Impact

Airflow: Requires High-Efficiency Particulate Air (HEPA) or Ultra-Low Penetration Air (ULPA) filtration systems.
Air Changes: Mandates sufficient air changes per hour to dilute and remove contaminants.
Pressure Control: Necessitates maintaining pressure differentials relative to adjacent areas to prevent infiltration.
Materials & Surfaces: Specifies the use of non-shedding, easily cleanable materials.

2. The Historical Benchmark: FS 209E

Role:Federal Standard 209E was the predominant US CleanRoom Classification standard for decades.
Mechanism:It defined cleanliness classes using imperial units (e.g., Class 100,000, Class 10,000, Class 100) based on particles per cubic foot ≥ 0.5 µm.
Status:Officially canceled in 2001 and superseded by ISO 14644-1.

Relevance: While no longer an active standard, FS 209E classifications are still frequently referenced, especially in older documentation or specific US industry contexts. Understanding its terminology remains useful for interpreting historical data and certain legacy requirements. ISO 14644-1 classes generally have approximate equivalents to FS 209E classes (e.g., ISO Class 5 ≈ Class 100).

3. The Regulatory Mandate: Good Manufacturing Practice (GMP)

Role:GMP is not solely A CleanRoom standard but a comprehensive regulatory framework for ensuring product quality and safety.It incorporates and often builds upon cleanroom standards like ISO 14644-1.

Requirements

Cleanroom Classification: Requires adherence to ISO 14644-1 classifications
Monitoring: Mandates rigorous, ongoing environmental monitoring during operation
Validation & Qualification: Requires formal validation of the cleanroom and its HVAC system
Procedures: Demands strict procedures for personnel, material transfer, and cleaning
Documentation: Enforces comprehensive documentation of all aspects

Focus: GMP emphasizes consistent control during actual production and prevention of contamination risks to the product, going beyond just particle counts.

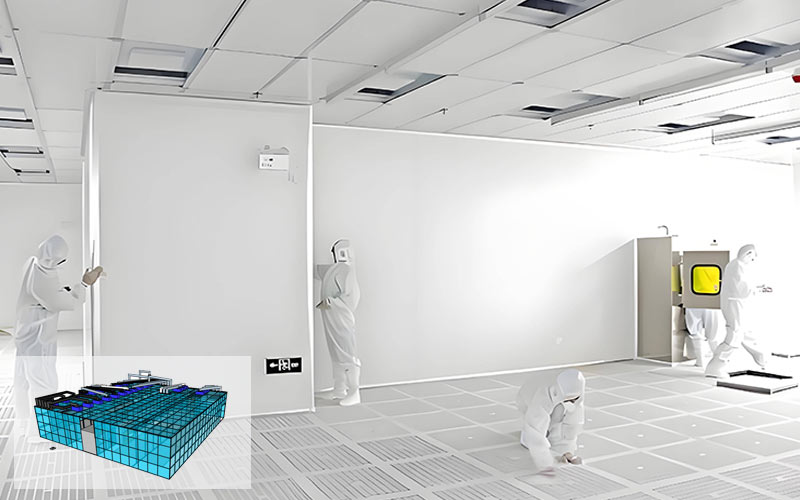

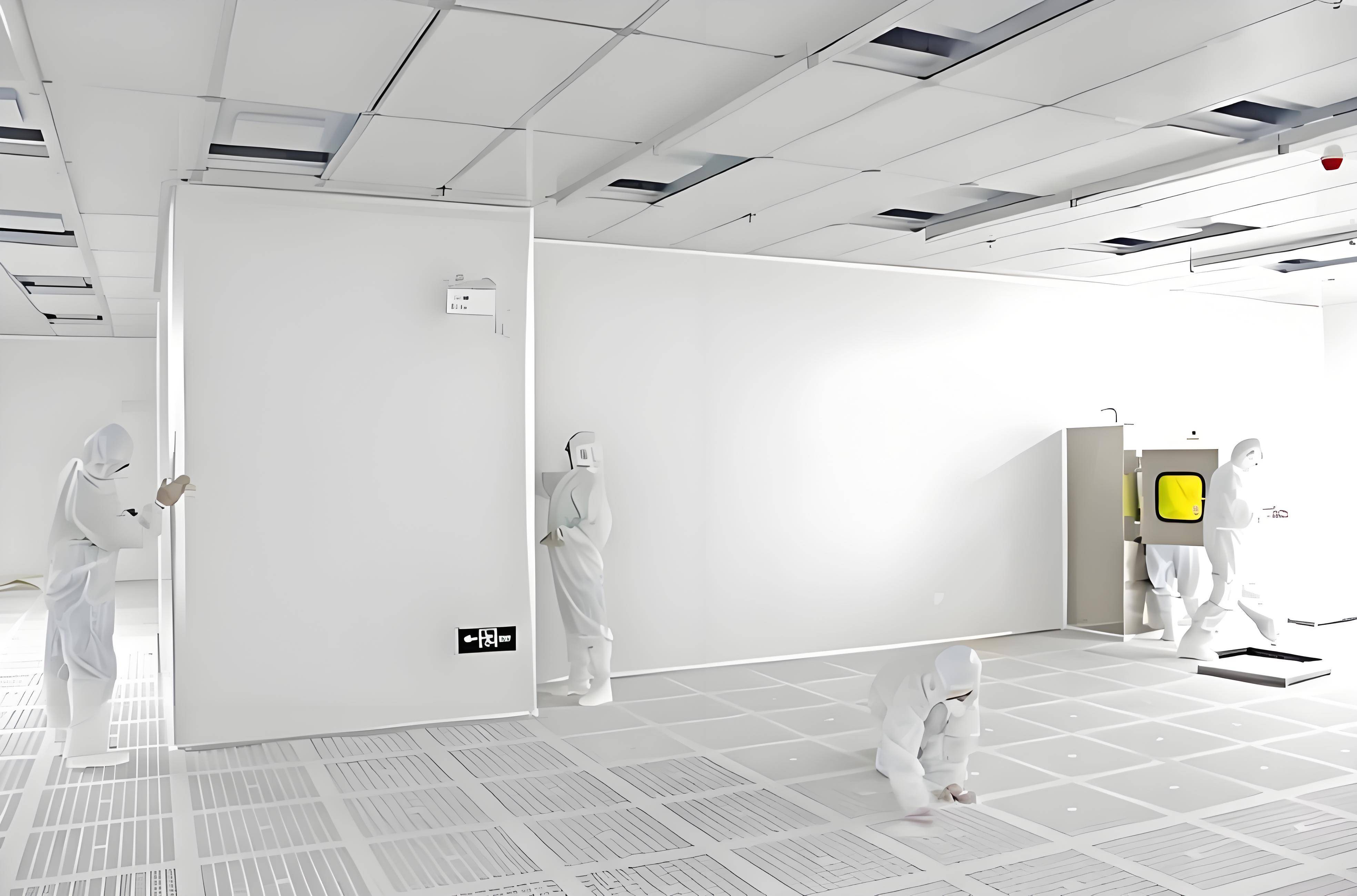

How Cleanroom Types Align with Standards

The choice of cleanroom structure directly impacts its ability to meet target standards

Cleanroom Type	Standards Alignment	Key Characteristics
softwall Cleanrooms	ISO Class 5 to ISO Class 8	Flexible, cost-effective; suitable for non-GMP critical applications
Hybrid Cleanrooms	FS 209E (Class 10,000/100,000)	Blend of softwall flexibility and hardwall rigidity

Applications of HEPA Filters:HEPA filters are utilized in various applications, including cleanrooms, hospitals, and residential HVAC systems. The classification based on efficiency and particle size is fundamental to ensuring appropriate use. For instance, in cleanrooms, H14 filters are often mandated due to stringent cleanliness requirements, while H13 filters may suffice for general household air purifiers.

EN 1822- European Standard for HEPA and ULPA filters.

ISO 29463- International Standard for High-Efficiency Filters for Removing Particulate Matter.

DOE Standard- U.S. Department of Energy's specifications for HEPA filters.

ASHRAE 52.2- American Society of Heating, Refrigerating and Air-Conditioning Engineers Standard for Testing Air-Cleaning Devices.

What Does It Take to Be Classified as a True HEPA Filter?

Efficiency Rating

To be classified as a true HEPA filter, it must capture at least 99.97% of particles that are 0.3 micrometers in size. This efficiency is crucial for ensuring high air quality in sensitive environments.

Particle Size Consideration

HEPA filters specifically target the most penetrating particle size (MPPS), which is 0.3 microns. This size represents the threshold where filters perform least effectively, making it a key benchmark in classification.

Construction Materials

True HEPA filters are typically constructed from fiberglass or synthetic materials, providing high filtration efficiency. The quality of the materials used significantly impacts the filter's performance and durability.

What Makes a Filter a HEPA Filter?

Capture Efficiency

A HEPA filter must achieve a minimum efficiency of 99.97% for 0.3-micron particles. This high capture rate distinguishes it from standard filters, ensuring cleaner air in various applications.

Particle Size Range

HEPA filters are designed to remove a wide range of particle sizes, particularly those between 0.1 and 0.3 microns. This capability is essential for trapping allergens, dust, and pathogens effectively.

Filter Design

The design of HEPA filters often includes pleated structures that increase surface area. This design enhances air flow while maximizing the amount of particulate matter captured.

How Are HEPA Filters Certified?

Testing Procedures

HEPA filters are subjected to standardized testing procedures to verify their efficiency. These tests measure the filter's ability to capture particles of various sizes, particularly the critical 0.3-micron size.

Compliance Standards

Certification is conducted according to recognized standards such as EN 1822 or ASHRAE 52.2. Adhering to these guidelines ensures the filter meets established performance benchmarks.

Laboratory Verification

Independent laboratories typically perform the certification testing. These third-party evaluations are essential for validating the claims made by manufacturers regarding filter efficiency and performance.

Documentation and Marking

Once a HEPA filter passes certification, it is documented and marked accordingly. This labeling provides consumers with assurance of the filter's capabilities and compliance with industry standards.

What Biosafety Level Is a HEPA Filter?

Biosafety Level Classification

HEPA filters are crucial in laboratory settings classified as Biosafety Level 2 (BSL-2) and higher. These filters help contain potentially infectious agents, preventing their release into the environment.

Air Filtration Requirements

In BSL-3 and BSL-4 laboratories, HEPA filters are mandatory for both supply and exhaust air systems. This ensures that all airborne particles are effectively filtered, maintaining a safe laboratory environment.

Protection Mechanism

HEPA filters provide a physical barrier against biological aerosols, including viruses and bacteria. Their high filtration efficiency is essential for protecting laboratory personnel and the surrounding community.
