Modular Hardwall Cleanroom: Complete Guide to Design, Specs, Costs & Procurement
Comprehensive technical guide to modular hardwall cleanroom systems featuring design specifications, compliance standards, cost analysis, and procurement strategies for critical environments.
This comprehensive guide provides essential information for professionals seeking to understand, specify, and procure modular hardwall cleanroom systems. Covering technical specifications, compliance requirements, cost considerations, and procurement strategies, this resource serves as a complete reference for planning critical environment projects.
What Is a Modular Hardwall Cleanroom?
A modular hardwall cleanroom is a prefabricated structure with rigid wall panels that create a permanently sealed environment for contamination-sensitive processes. These systems offer superior environmental control compared to softwall alternatives and faster deployment than traditional construction.
Hardwall Cleanroom

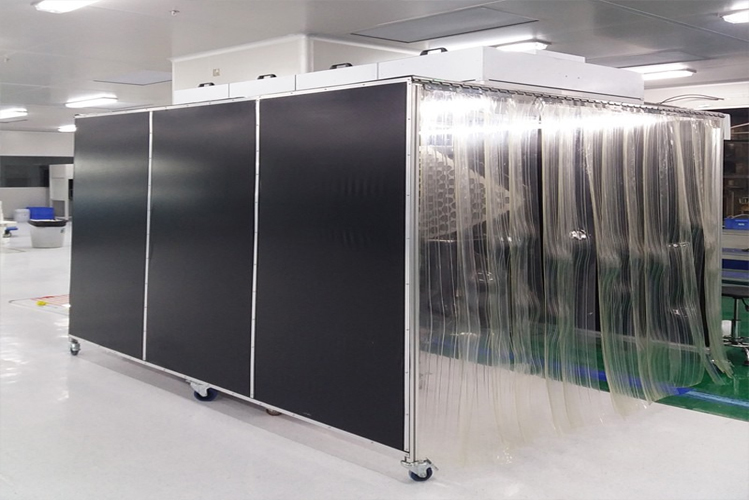

Softwall Cleanroom
Comparison: Hardwall vs Softwall vs Traditional Construction
| Feature | Hardwall | Softwall | Traditional |
|---|---|---|---|
| Lifespan | 15-20 years | 5-8 years | 20+ years |
| Installation Time | 4-12 weeks | 2-4 weeks | 6-18 months |
| Cost per m² | $2,000-$4,000 | $800-$1,500 | $3,000-$6,000 |
| ISO Class Capability | ISO 1-8 | ISO 5-8 | ISO 1-8 |
| Flexibility | High (reconfigurable) | Very High | Low (permanent) |
When to Choose Hardwall vs Softwall or Site-built
Selecting the right cleanroom type depends on your specific operational requirements, budget constraints, and timeline considerations. Below are typical scenarios where modular hardwall cleanrooms provide optimal solutions.
Decision Matrix
| Scenario | Recommended Type | Key Factors |
|---|---|---|
| Pharmaceutical ISO 5/7 | Hardwall | Regulatory compliance, durability, precise environmental control |
| Semiconductor Packaging | Hardwall | ESD protection, vibration isolation, chemical resistance |
| Aerospace Large Assembly | Hardwall | Structural integrity, vibration control, large component handling |
| Long-term Manufacturing | Hardwall/Traditional | Durability, maintenance costs, operational stability |
| R&D Laboratory | Softwall | Flexibility, lower cost, temporary needs |
Case Example: Pharmaceutical ISO 7 Facility
A major pharmaceutical company selected modular hardwall cleanrooms for their new vaccine production facility. The decision was based on: 12-month faster deployment than traditional construction, 25% cost savings, and ability to meet EU GMP Annex 1 requirements for Grade B classification.
Standards & Compliance
Modular hardwall cleanrooms must comply with international standards to ensure performance, safety, and regulatory acceptance across various industries and applications.
Key Standards for Modular Hardwall Cleanrooms
- ISO 14644-1/2/3/4: CleanRoom Classification, testing, and monitoring
- GMP (EU & US FDA): Good Manufacturing Practices for pharmaceuticals
- ISO 14698: Biocontamination control
- ASTM E595: Outgassing testing for aerospace materials
- IEC 61340: Electrostatic discharge control
- AS9100: Aerospace quality management systems
Contract Recommendation
Require FAT/SAT testing according to ISO 14644 sampling plans with minimum 95% confidence level for particle counts. Specify minimum sampling locations based on cleanroom area: √A (rounded up) where A is cleanroom area in m².
Core Technical Specs & Performance Parameters
Panel Specifications
| Panel Type | Thickness | Core Material | R-value | Applications |
|---|---|---|---|---|
| Aluminum Honeycomb | 50mm, 75mm, 100mm | Aluminum honeycomb | R-16 to R-24 | Aerospace, high-cleanliness |
| Composite | 40mm, 60mm | PUR/PIR foam | R-22 to R-28 | Pharmaceutical, general manufacturing |
| Fire-rated | 60mm, 80mm | Mineral wool | R-13 to R-19 | Healthcare, laboratories |
ISO Classification & Particle Limits
| ISO Class | Maximum Particles/m³ (≥0.5μm) | Recommended ACH | Pressure Differential |
|---|---|---|---|
| ISO 5 | 3,520 | 240-480 | +15 to +30 Pa |
| ISO 6 | 35,200 | 90-180 | +10 to +25 Pa |
| ISO 7 | 352,000 | 30-70 | +5 to +20 Pa |
Air Changes Per Hour Calculation
Airflow (m³/s) = (Room Volume × ACH) / 3600
Example Calculation: 500 m² ISO 7 Cleanroom with 3m ceiling height at 50 ACH:
Volume = 500 m² × 3 m = 1,500 m³
Airflow = (1,500 × 50) / 3600 = 20.83 m³/s
Required HVAC capacity: ~75,000 m³/h (20.83 × 3600)
Temperature & Humidity Control
Typical requirements for modular hardwall cleanrooms:
- Temperature stability: ±1°C to ±2°C
- Relative humidity: ±5% RH control
- Common setpoints: 21°C ±2°C, 45% ±5% RH
Materials, Construction Details & Node Drawings
Material Comparison
| Material | TML (%) | CVCM (%) | Advantages | Limitations |
|---|---|---|---|---|
| Powder-coated steel | <0.1 | <0.01 | Durable, cost-effective | Heavier than aluminum |
| Anodized aluminum | <0.05 | <0.005 | Lightweight, excellent for aerospace | Higher cost |
| Stainless steel | <0.01 | <0.001 | Excellent cleanability, pharmaceutical grade | Premium cost |
Construction Details

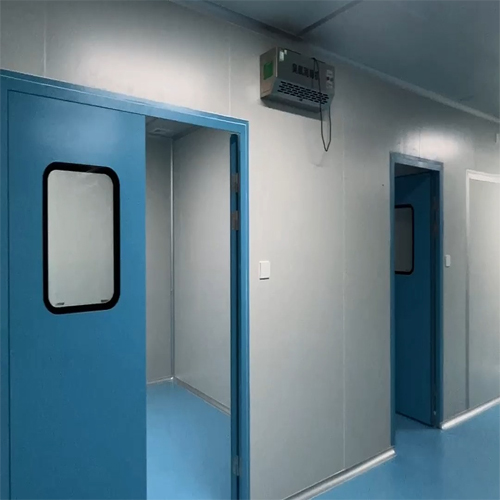

Wall Section Detail

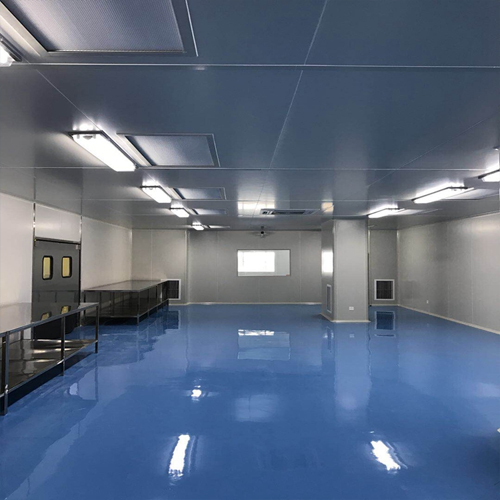

Ceiling Integration

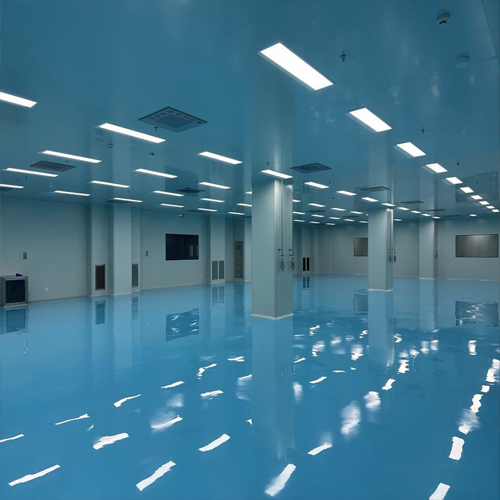

ESD Flooring System
HVAC, Filtration & airflow design
Filtration Cascade
Typical filtration system for modular hardwall cleanrooms:
- Pre-filters: G4/F5 (85-95% efficiency) - 6-12 month replacement
- Secondary filters: F7/F9 (95-99% efficiency) - 1-2 year replacement
- Final filters: HEPA H13/H14 (99.97-99.995% efficiency) - 3-5 year replacement
- ULPA filters: U15-U17 (99.9995%+ efficiency) - For ISO 1-3 applications
Airflow Patterns
Full Laminar Flow
ISO 1-5 applications, unidirectional airflow

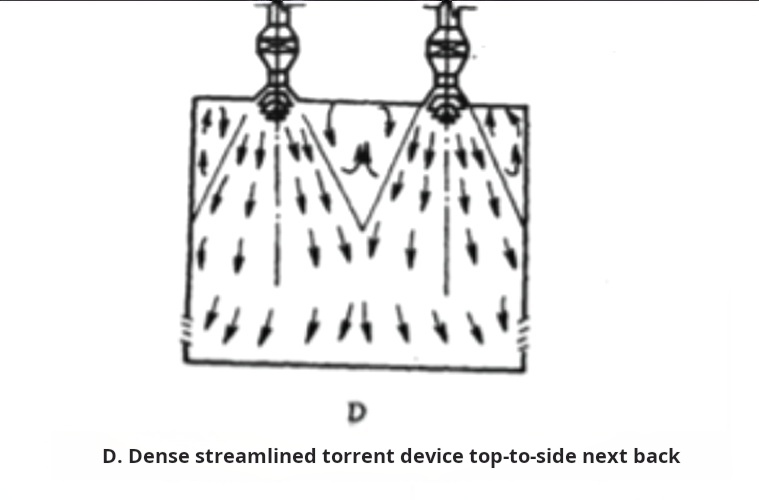

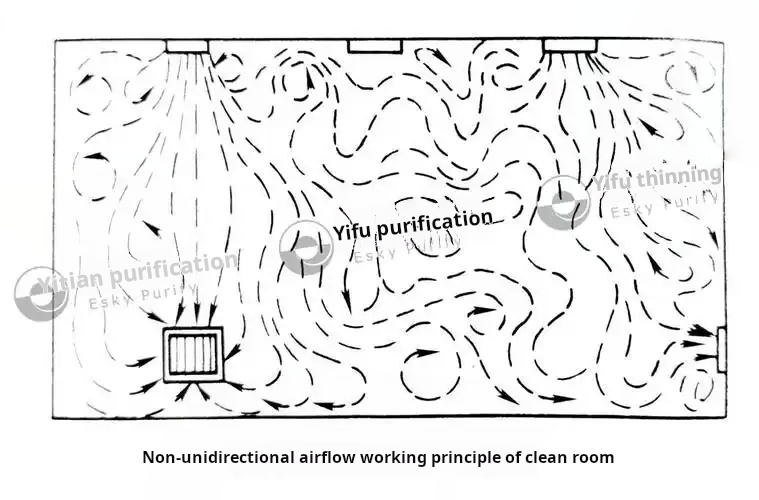

Turbulent Mixing
ISO 6-8 applications, cost-effective
Pressure Cascade Example
Typical pressure differentials for multi-room facilities:
- ISO 5 Core Room: +30 Pa
- ISO 7 Gowning Room: +20 Pa
- ISO 8 Air Lock: +15 Pa
- Corridor: +10 Pa

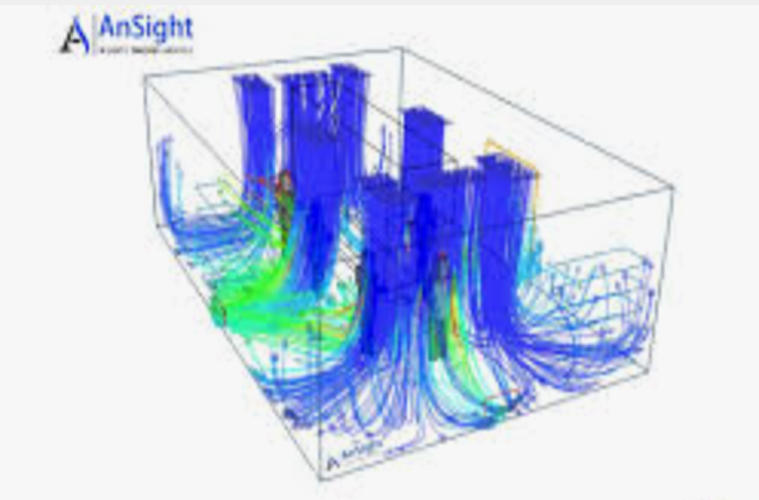

CFD Analysis of Airflow Patterns
Installation, Transport & Lift Considerations
Typical Installation Timeline
Week 1-2: Site preparation, utility rough-ins
Week 3-5: Structural assembly, panel installation
Week 6-7: HVAC integration, electrical systems
Week 8-9: Finishing, filter installation
Week 10-12: Commissioning, SAT, validation
Transport & Logistics
- Standard panel dimensions: 1200mm × 2400mm to 1200mm × 3600mm
- Maximum shipping dimensions: 13.6m × 2.5m × 2.9m (standard container)
- Weight considerations: 25-40 kg/m² depending on panel type
- On-site crane requirements: 2-10 ton capacity depending on module size
Validation & Commissioning (IQ/OQ/PQ)
Validation Protocol Structure
| Phase | Key Activities | Deliverables |
|---|---|---|
| IQ | Document verification, installation checks | As-built drawings, manuals, certificates |
| OQ | Operational testing, performance verification | Test reports, calibration records |
| PQ | Process simulation, routine operation | Performance data, monitoring results |
Particle Counting Sampling Plan
Based on iso 14644-1 requirements:
- Minimum sampling locations: √A (rounded up)
- Minimum sample volume: 20L for ISO 5, scaled for other classes
- Sampling height: 0.8-1.2m (working height)
- Confidence level: 95% minimum
Operation, Maintenance & Lifecycle Costs
Maintenance Schedule
| Component | Frequency | Activity | Estimated Cost |
|---|---|---|---|
| Pre-filters | 6-12 months | Replacement | $200-$500 |
| HEPA filters | 3-5 years | Replacement | $3,000-$8,000 |
| Pressure monitoring | Annual | Calibration | $500-$1,000 |
| ESD flooring | Quarterly | Resistance testing | $200-$400 |
5-Year Total Cost of Ownership Comparison
| Cost Component | Modular Hardwall | Traditional Construction |
|---|---|---|
| Initial CAPEX | $750,000 | $1,200,000 |
| Annual OPEX | $45,000 | $60,000 |
| Energy Costs (5yr) | $125,000 | $150,000 |
| Maintenance (5yr) | $75,000 | $100,000 |
| Total 5-year TCO | $1,175,000 | $1,750,000 |
Procurement & RFP Checklist
Essential RFP Requirements
- Detailed technical specifications with performance guarantees
- Comprehensive FAT/SAT protocols
- BIM models and as-built documentation
- CFD analysis reports for airflow validation
- Warranty terms and service level agreements
- Training programs for operations staff
- Spare parts inventory recommendations
- Financial stability documentation
Supplier Evaluation Matrix
| Criterion | Weight | Scoring (1-5) | Notes |
|---|---|---|---|
| Technical Compliance | 30% | Meets all specification requirements | |
| Project Experience | 25% | Similar scale and industry projects | |
| Cost Competitiveness | 20% | Total cost of ownership | |
| Service & Support | 15% | Local support, response times | |
| Quality Certifications | 10% | ISO, GMP, industry-specific |
Common Pitfalls & Red Flags
Vague Scope of Delivery
Suppliers who cannot provide detailed scope documentation, including exact specifications, deliverables, and exclusion lists, often lead to project cost overruns and delays.
No Factory Acceptance Test (FAT)
Reputable suppliers always conduct FAT to verify system performance before shipment. Avoid suppliers who cannot provide comprehensive FAT protocols.
Lack of BIM/CFD Capabilities
Modern cleanroom projects require Building Information Modeling and Computational Fluid Dynamics analysis for optimal design and performance validation.
Insufficient Local Support
Suppliers without local service networks cannot provide timely maintenance and emergency support, risking production downtime.
Material TML/CVCM Non-compliance
For aerospace and semiconductor applications, materials must meet ASTM E595 outgassing requirements (TML<1.0%, CVCM <0.1%).
Quick Audit Checklist
- Detailed scope of delivery document
- Comprehensive FAT/SAT protocols
- BIM models and CFD reports
- Local service network map
- Material compliance certificates
- Client references and case studies
- Quality management certifications
- Financial stability documentation
Case Studies & Photo Gallery

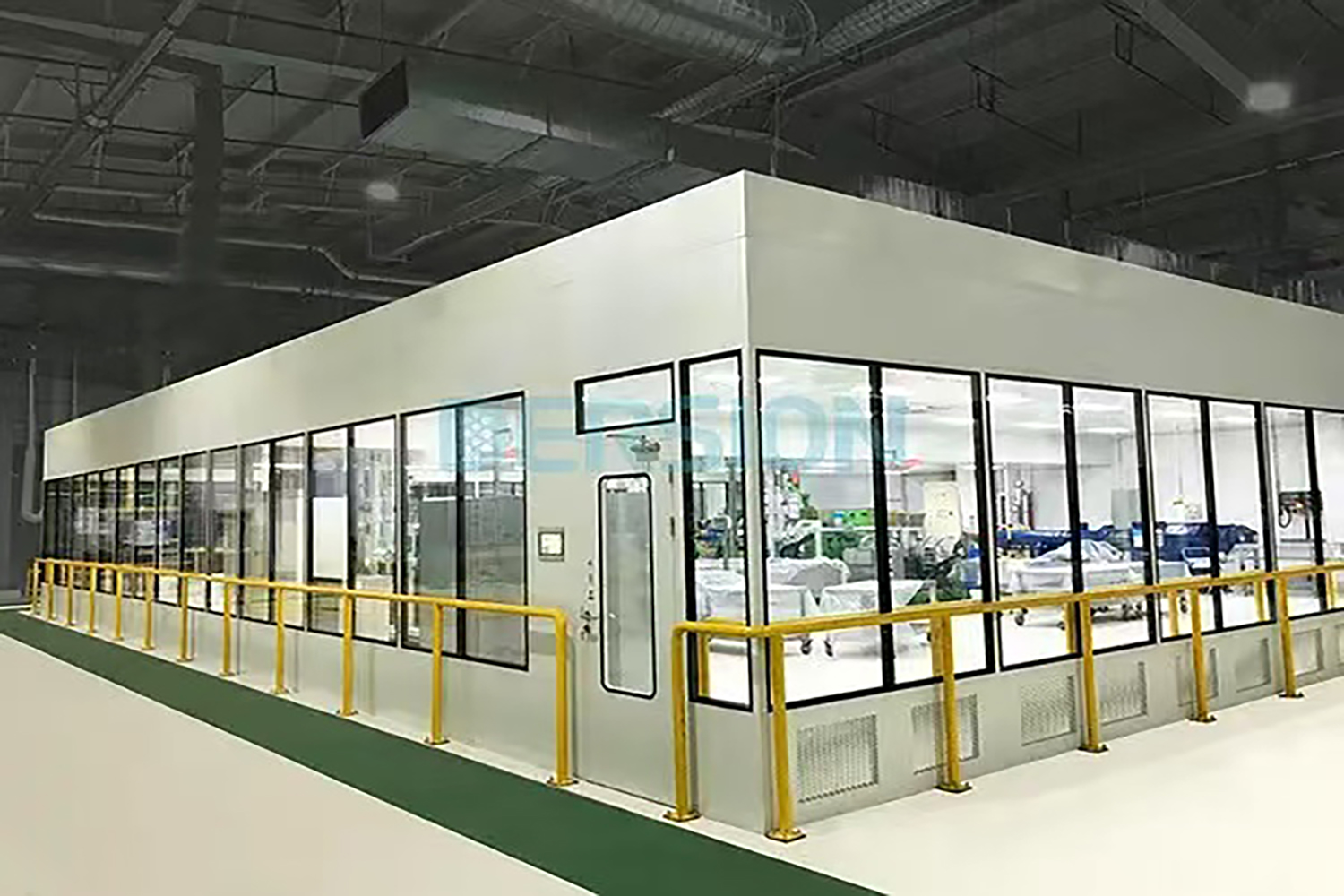

Pharmaceutical ISO 7 Facility
Industry: Pharmaceutical
Area: 350 m²
ISO Class: 7 (Grade B)
Timeline: 14 weeks
Challenge: EU GMP Annex 1 compliance with tight deadlines
Solution: Modular hardwall with integrated monitoring systems

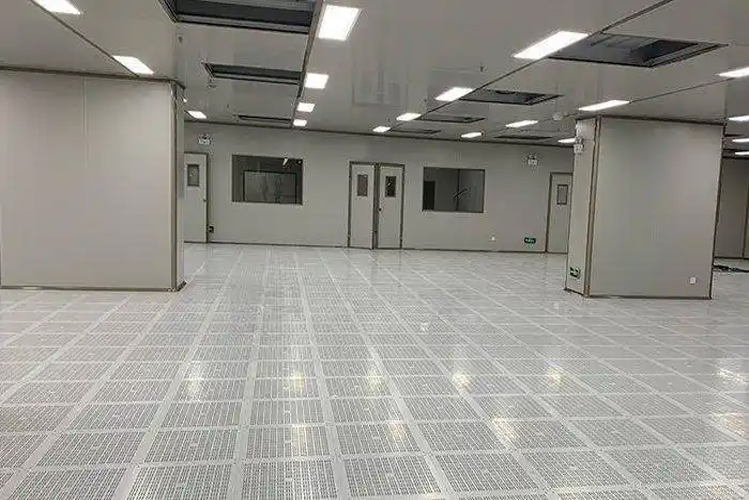

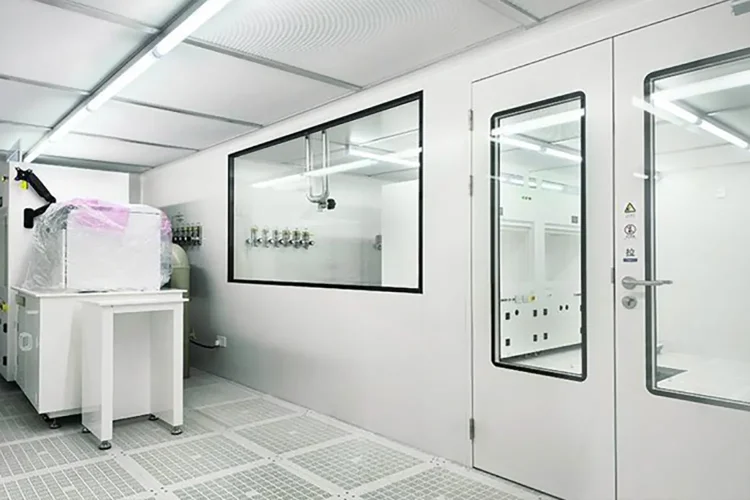

Aerospace Component Assembly
Industry: Aerospace
Area: 600 m²
ISO Class: 6
Timeline: 18 weeks
Challenge: Vibration control for sensitive instrumentation
Solution: Specialized isolation system with<1.0% TML materials

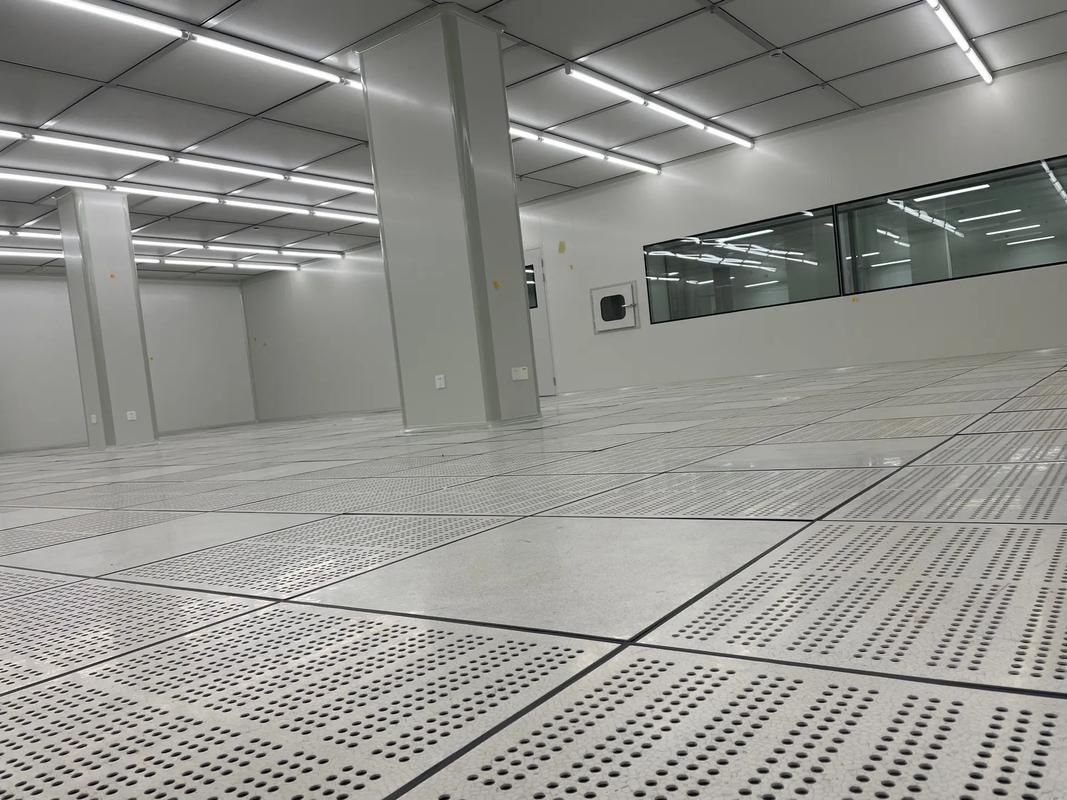

Semiconductor Packaging
Industry: Semiconductor
Area: 250 m²
ISO Class: 5
Timeline: 12 weeks
Challenge: ESD protection and chemical resistance
Solution: Conductive flooring with chemical-resistant panels
Project Installation Timelapse
Frequently Asked Questions
What ISO classes can hardwall cleanrooms achieve?
Properly designed modular hardwall cleanrooms can achieve and maintain ISO Class 1 through ISO Class 8, with ISO Class 5 being the most common for critical applications in pharmaceuticals, aerospace, and semiconductors.
How long does hardwall cleanroom installation take?
Installation typically takes 4-12 weeks depending on size and complexity, compared to 6-18 months for traditional construction. This includes site preparation, assembly, HVAC integration, and commissioning.
How are large equipment and components brought into hardwall cleanrooms?
Modular hardwall cleanrooms can be designed with large equipment doors (up to 4m × 4m), removable wall sections, overhead cranes, and reinforced structural elements to accommodate heavy equipment and large components.
What is the typical filter replacement cycle?
HEPA filters typically last 3-5 years, while pre-filters should be replaced every 6-12 months depending on environmental conditions and usage. ULPA filters in critical applications may require more frequent replacement (2-4 years).
Can hardwall cleanrooms be expanded or reconfigured?
Yes, one of the key advantages of modular hardwall cleanrooms is their reconfigurability. Systems can be expanded, reduced, or completely reconfigured to accommodate changing production needs with minimal downtime.
What are the energy consumption considerations?
Energy consumption is primarily driven by HVAC systems. A typical 500 m² ISO 7 cleanroom consumes 60-100 kW depending on temperature/humidity requirements, filtration level, and operational hours. Modern systems incorporate energy recovery and variable speed drives for optimization.
How does modular construction compare to traditional for vibration control?
Modular hardwall cleanrooms can be designed with specialized vibration isolation systems that often outperform traditional construction, with natural frequencies below 8 Hz achievable for sensitive instrumentation in aerospace and semiconductor applications.
What warranty periods are typical for hardwall cleanrooms?
Standard warranties range from 2-5 years for structural components and 1-2 years for mechanical systems. Extended warranties are often available for critical components like HEPA filters and control systems.
Next Steps & Contact
Ready to move forward with your modular hardwall cleanroom project? Our team of experts is available to provide customized solutions and guidance throughout your procurement process.
Take the Next Step
Contact Information
Phone: +1 (800) 123-4567
Email: solutions@cleanroomexpert.com
Technical Support: support@cleanroomexpert.com
Address: 123 Cleanroom Drive, Tech Park, CA 94000
Request Callback
References & Further Reading
Standards & Guidelines
- ISO 14644-1:2015 - Cleanrooms and associated controlled environments — Part 1: Classification of air cleanliness
- iso 14644-2:2015 - Cleanrooms and associated controlled environments — Part 2: Monitoring to provide evidence of cleanroom performance
- ISO 14644-3:2019 - Cleanrooms and associated controlled environments — Part 3: Test methods
- ISO 14644-4:2022 - Cleanrooms and associated controlled environments — Part 4: Design, construction and start-up
- ISO 14698-1:2003 - Cleanrooms and associated controlled environments — Biocontamination control — Part 1: General principles
- ASTM E595-15 - Standard Test Method for Total Mass Loss and Collected Volatile Condensable Materials from Outgassing in a Vacuum Environment
- IEC 61340-5-1 - Electrostatics — Part 5-1: Protection of electronic devices from electrostatic phenomena — General requirements
- EU GMP Annex 1: Manufacture of Sterile Medicinal Products
- FDA Guidance for Industry - Sterile Drug Products Produced by Aseptic Processing
Technical References
- Whyte, W. (2010). Cleanroom Technology: Fundamentals of Design, Testing and Operation
- ASHRAE Handbook - HVAC Applications (Clean Spaces Chapter)
- ICCCS Recommended Practices for Cleanroom Operations
- NASA Handbook for Outgassing Materials for Space Applications
Author: Jason Peng, Product Designer & Cleanroom Engineer | Experience: 15+ years in Cleanroom design and validation
