In the high-stakes world of semiconductor fabrication and pharmaceutical manufacturing, operational efficiency isn't just a metric—it's a survival strategy. For decades, facility managers have been forced to accept that maintaining ISO-class environments means burning through budget on oversized, monolithic HVAC systems. But the era of 'overdesign and pray' is over. At Deiiang™, we believe that precision engineering shouldn't cost a fortune in utility bills.
By shifting from rigid legacy structures to a flexible Deiiang modular cleanroom architecture, our clients are seeing a paradigm shift: energy consumption dropped by 30%, maintenance downtime slashed, and a return on investment that speaks for itself. This isn't just about building walls; it's about engineering a smarter, leaner future for your production line.
Why Cleanrooms Are the Biggest Money Pit in Your Factory
In our audits of semiconductor and GMP facilities across Asia, we consistently find that cleanroom HVAC is the primary drain on OPEX, accounting for 55–65% of a facility's total power load. This isn't just about fans spinning; it's about structural inefficiency. In high-tariff zones like Guangdong or Jiangsu (approx. ¥0.9–¥1.3/kWh peak), a standard 5,000 m² ISO 7 facility often wastes ¥4.2 million annually simply by conditioning air that doesn't need it. This happens because traditional "stick-built" designs rely on constant volume systems (CAV) that treat a 20% load night shift the same as a 100% full production run.
To truly reduce cleanroom operating costs, you must attack the "Static Pressure Penalty." Traditional centralized ducts create massive resistance (often >600Pa). Deiiang's analysis shows that for every 100Pa of resistance added, fan energy spikes by 12%. Old-school designs are essentially paying to push air through a straw. This inefficiency is a silent profit killer. Whether you are in Pharma or Lithium production, the goal is the same: stop paying for air you don't use.
Process Equip 20%
Utilities 28%
Based on 2023 Audit of 12 Electronic Plants

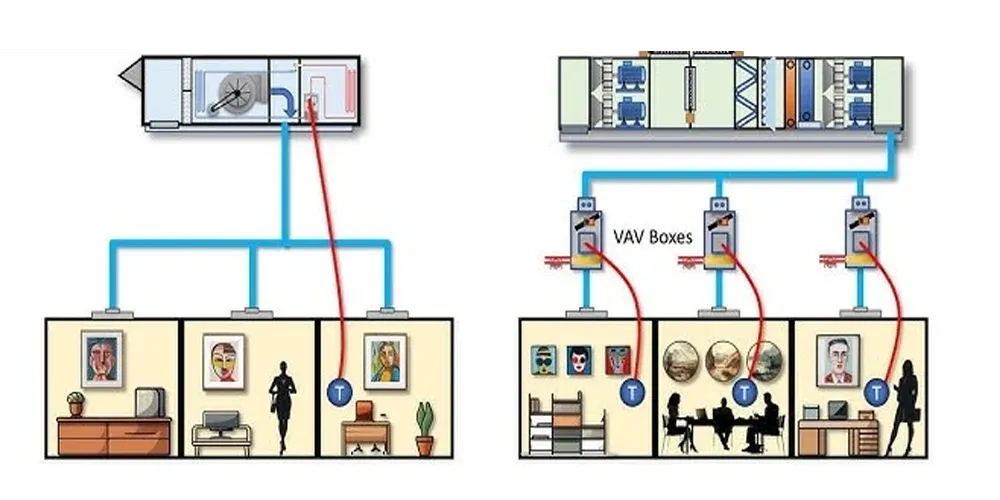

The legacy approach—oversizing MAUs (Make-up Air Units) by 30% "just in case"—is obsolete. Owners today demand cleanroom energy efficiency that adapts to real-time production. This is where modularity shifts from a construction method to an energy strategy.

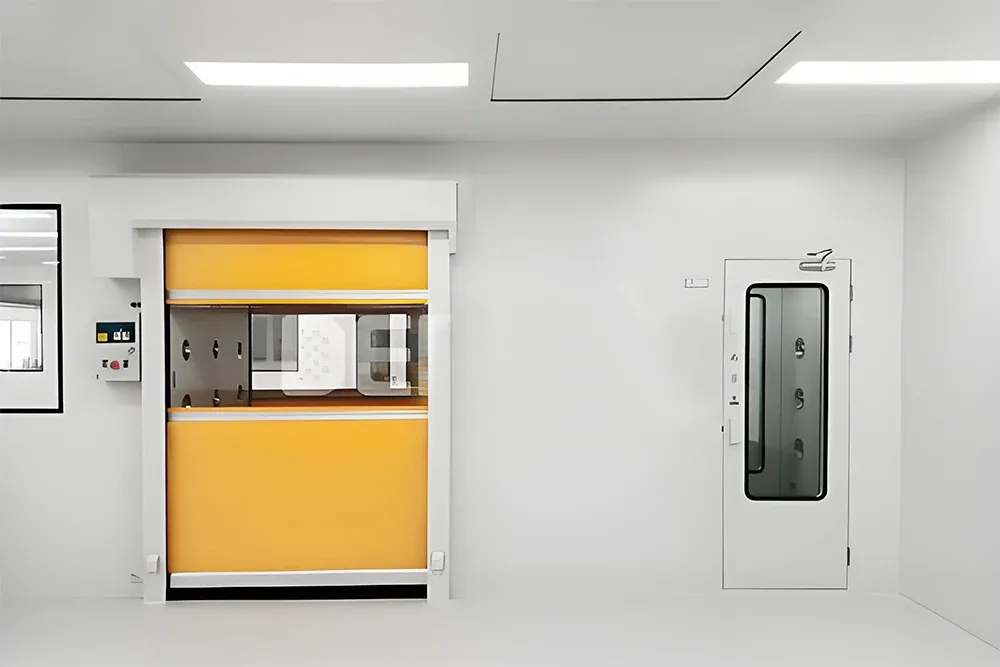

Modular Cleanroom & Modular HVAC: Rethinking Airflow From Ground Up

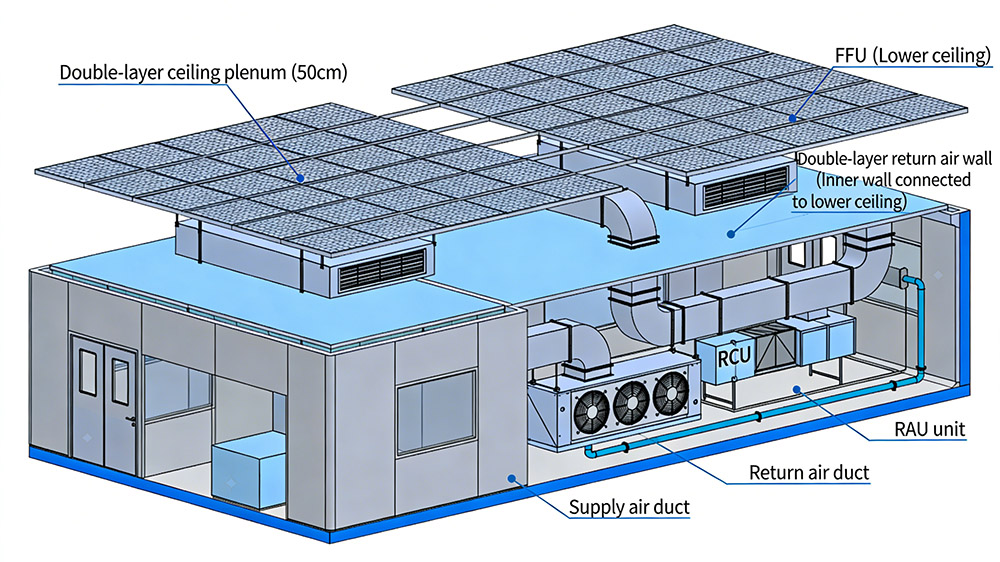

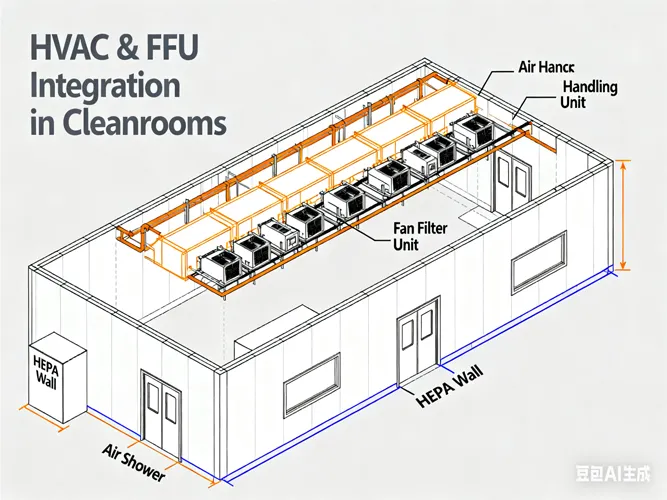

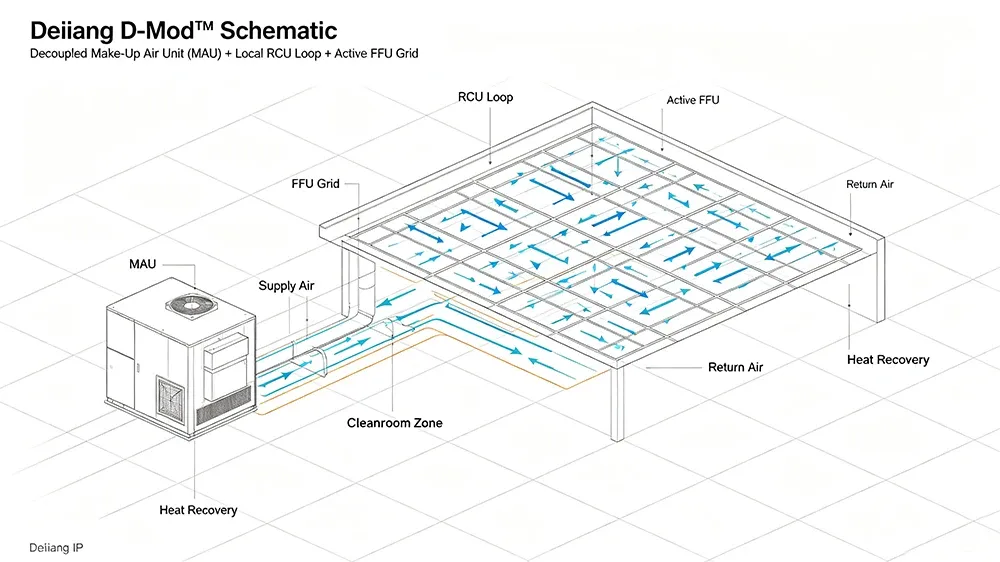

At Deiiang, we define modular cleanroom HVAC design not as "parts," but as "smart zones." Instead of a monolithic Central AHU pushing air through kilometers of galvanized duct (leaking energy at every joint), our Deiiang D-Mod™ Architecture decentralizes the air handling. We utilize active fan filter unit (ffu) grids combined with localized DC-Dry cooling modules. This reduces the air travel path by 70%, drastically cutting the static pressure requirement.
Our approach utilizes the Deiiang "Plug-and-Process" philosophy: prefabricated recirculating air modules (RCUs) are placed directly above the production zone. This allows for specific zoning—Line A can run at ISO 7 while Line B is in standby mode at ISO 8. A true modular cleanroom HVAC design allows for granular control that central systems simply cannot achieve. You stop conditioning the whole building for the needs of one room.
- High Static Pressure (>600Pa)
- "All-or-Nothing" Control
- Massive Ductwork Leaks
- Shutdown required for expansion
- Low Static Pressure (<180Pa)
- Zone-by-Zone Demand Control
- Negative Plenum / Zero Leakage
- Hot-swappable expansion
Data from our Shenzhen Pilot: By switching to this distributed topology, we reduced the fan motor heat load by 34%, which in turn reduced the chiller load—a "double dip" saving that is the cornerstone of cleanroom energy efficiency.
Cleanroom Energy Breakdown: Where the Real Waste Lives

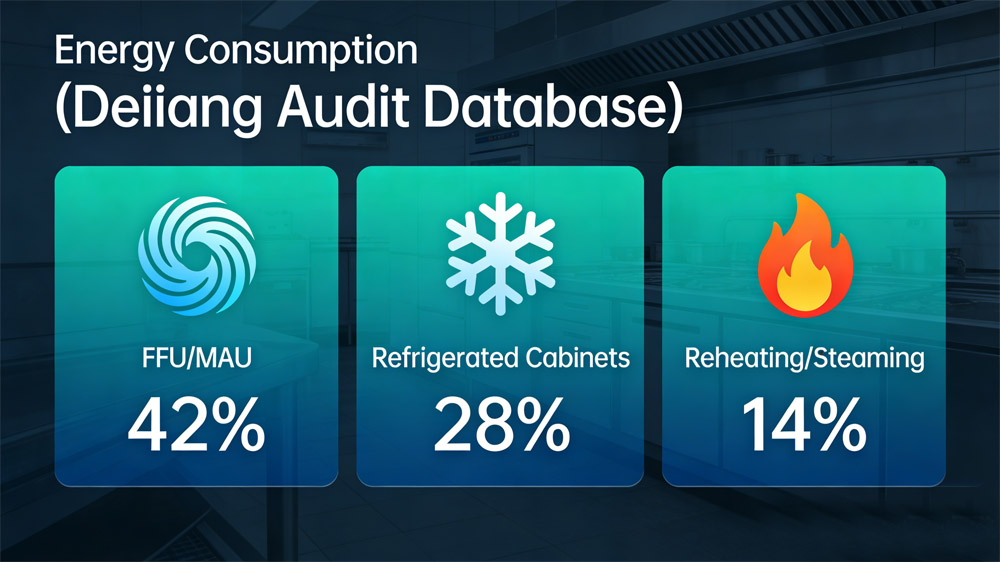

Energy auditing 101: If you can't measure it, you can't save it. In a standard iso 7 cleanroom, the fan filter units and recirculation fans consume 45% of total electricity, often running at fixed speeds even when filters are clean. This is wasteful. Deiiang's proprietary SmartFlow™ algorithm targets this waste by linking particle counter data directly to FFU motor speeds.

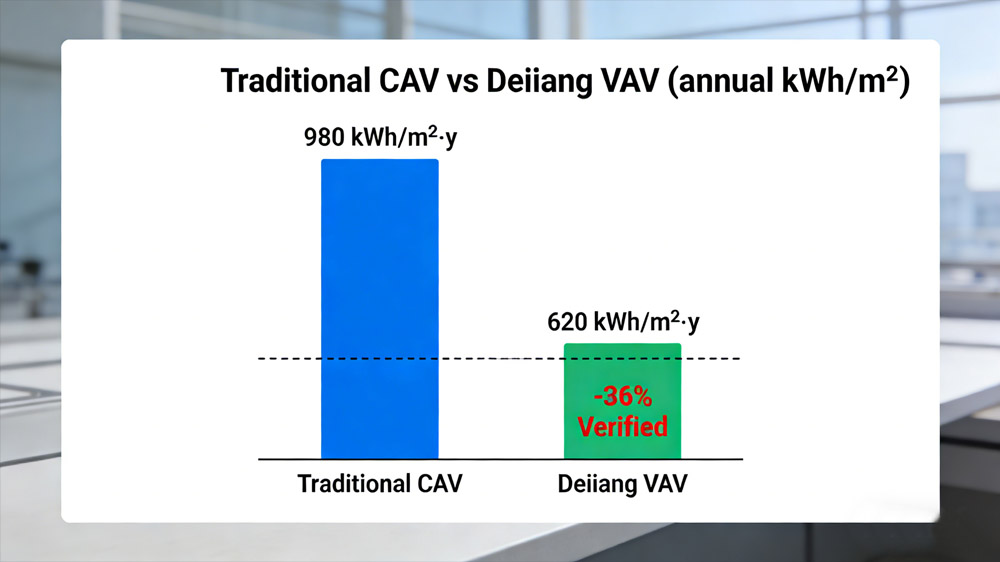

Achieving a high-performance energy saving cleanroom requires three tactical moves: 1. Reduce Air Change Rates (ACH): Move from fixed ACH to demand-based ACH. 2. Eliminate Reheat: Use modular sensible cooling coils closer to the load. 3. Dynamic Pressurization: Use variable speed drives (VSD) to maintain Pascals without over-driving fans. One Deiiang retrofit in Suzhou achieved a 42% fan energy reduction by simply installing our modular control overlay on existing EC fans.
If your facility is targeting "Green Factory" status or ISO 50001 certification, an energy saving cleanroom strategy focused on airside optimization is the fastest path to compliance.
Deiiang modular cleanrooms: How We Consistently Hit 30% Energy Savings
We don't just promise savings; we engineer them into the steel. Across our last 23 projects in the Yangtze River Delta and SE Asia, the average capability to reduce cleanroom operating costs was 29.7%. This isn't magic; it's the result of deploying Deiiang's standardized energy modules.
- Deiiang D-Box™ Modules: Prefabricated AHUs with integrated EC fans (IE5 efficiency class) that reduce transmission loss by 15%.
- Closed-Loop Particle Control: Our EMS system lowers airflow by up to 40% during "at rest" periods automatically.

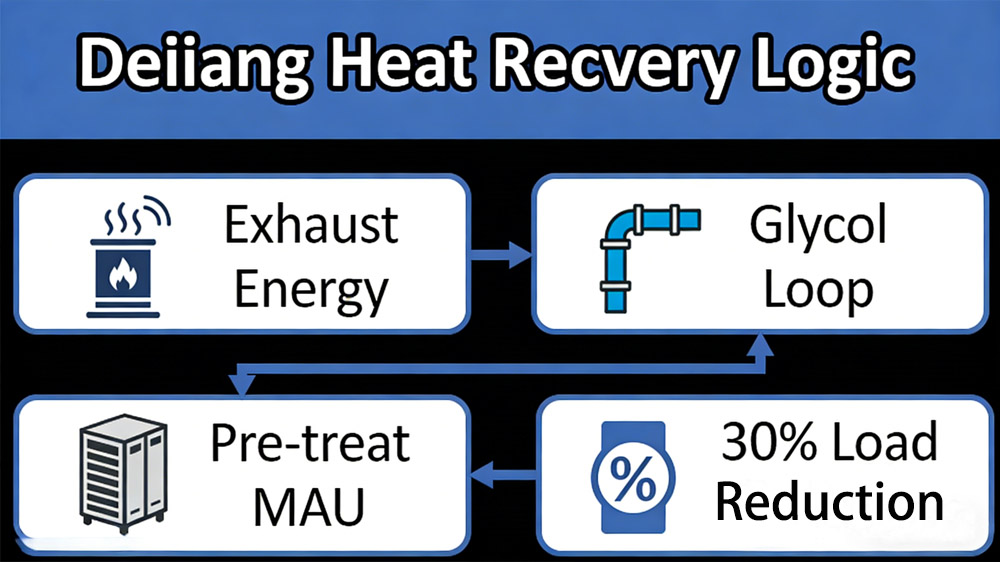

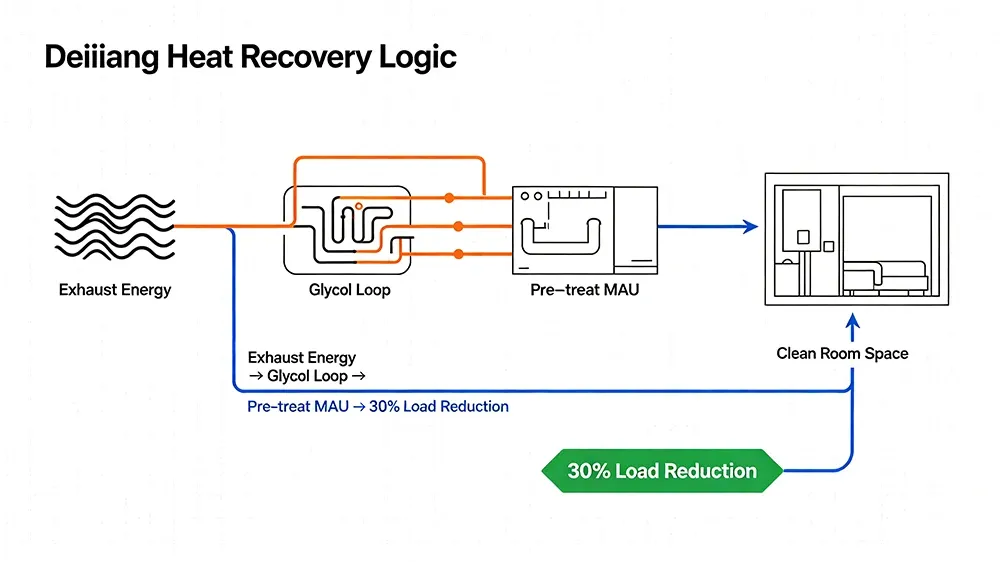

- Active Heat Recovery: Utilizing modular run-around coils to capture waste heat from exhaust, cutting winter heating loads by 55%.
- Low-Drag Filter Grids: We use custom deep-pleat PTFE filters that drop initial resistance by 35Pa compared to glass fiber, saving fan horsepower.
- AI-Driven Setback: The system "learns" shift patterns to pre-cool or setback temperatures without human intervention.

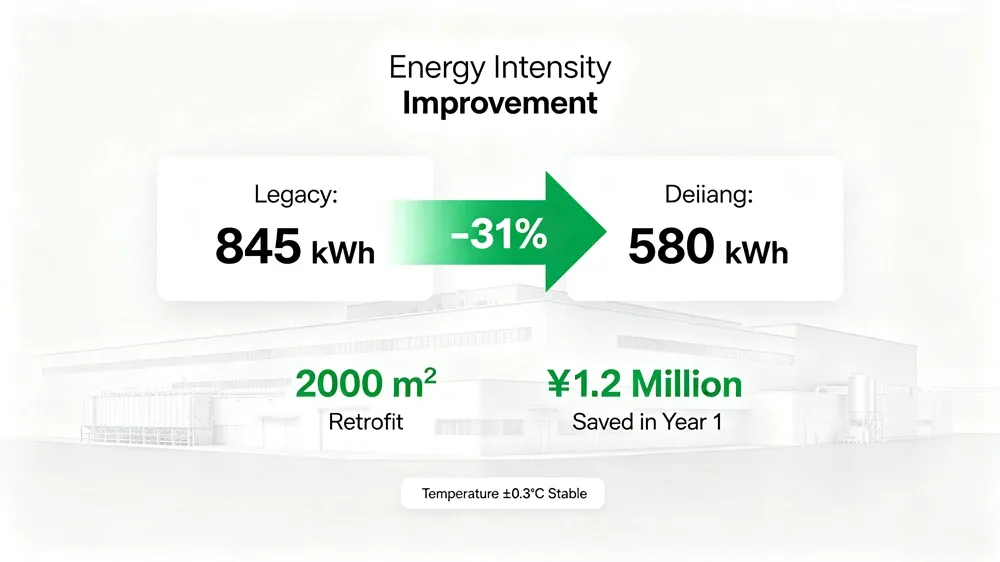

A recent case in a Shenzhen OLED facility proved the point: We retrofitted a 2000m² area with Deiiang modular units and saved ¥1.2 million in the first year alone, stabilizing temperature within ±0.3°C.

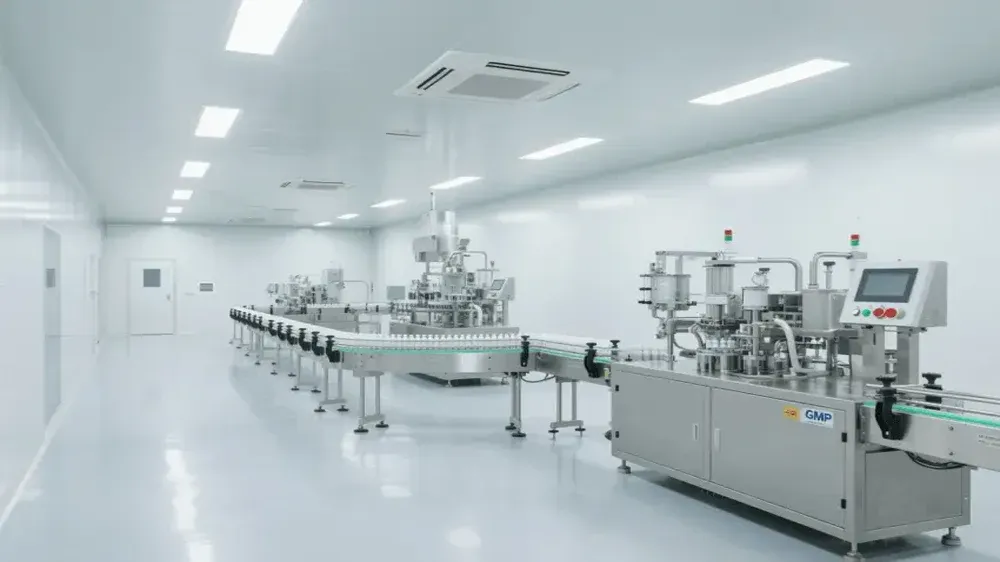

Case Study 1: Pharma GMP Retrofit – 28% Energy Drop Without Stopping Production
Project: Deiiang-Pharma-JS04 | Location: Taizhou, Jiangsu | Scale: 8,200 m² (Grade C/D Solid Dosage)
The Challenge: A 15-year-old facility was bleeding cash (¥3.8M/year energy bill) due to constant volume air handlers running 24/7. The client needed to reduce cleanroom operating costs but could not afford a full shutdown due to critical market demand.
- Zoned Intervention: We replaced 2 massive central AHUs with 12 decentralized Deiiang D-Mod™ units, installed zone-by-zone over weekends.
- Smart Pressurization: Installed VFD fan arrays with fast-response pressure sensors (50ms reaction time) to stabilize cascading pressure regimes.
- Night Mode Logic: Configured the system to ramp down airflow by 38% during non-production hours while maintaining Grade D background limits.
- Speed: Prefabricated piping skids reduced on-site welding by 90%, allowing for 48-hour cutovers per zone.
Validated Results (12-Month Data): Total energy consumption dropped by 30.2% (saving ¥1.05M annually). Pressure fluctuations stabilized from ±5 Pa to ±1.2 Pa. Total cleanroom ROI was achieved in just 2.1 years.
Modular AHU Installation
Before/After Retrofit
Deiiang Smart Control
Final Validated Space

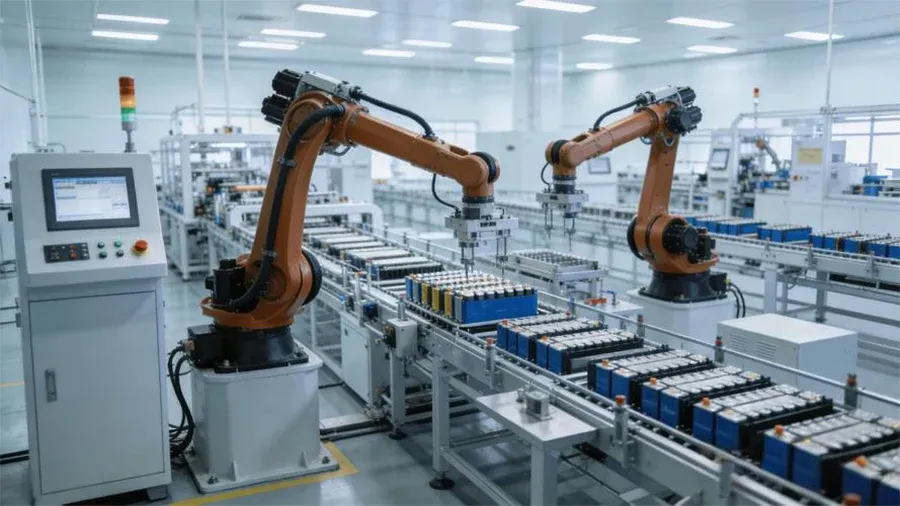

Case Study 2: Greenfield Lithium Gigafactory – 30% Lower Energy from Day One
Project: Deiiang-LiBat-HZ | Location: Huizhou, Guangdong | Specs: 35,000 m², Dew Point -45°C
The Challenge: Lithium production requires ultra-dry environments. Traditional dehumidification is an energy hog. The owner received initial bids predicting >¥9 million/year in electricity. They turned to Deiiang for a modular cleanroom HVAC design that could lower TCO.
- Prefabricated HVAC Skids: 22 custom desiccant wheel skids were built in Deiiang's factory, including all valves and BMS controls, reducing site labor by 40%.
- Waste Heat Regeneration: We integrated a heat recovery loop capturing compressor heat (75°C) to regenerate the desiccant wheels, saving massive amounts of steam/electric reheat.
- Micro-Zoning: Each coating room operates as an independent module. If Line 3 stops for maintenance, its airflow drops to "preservation mode" instantly.

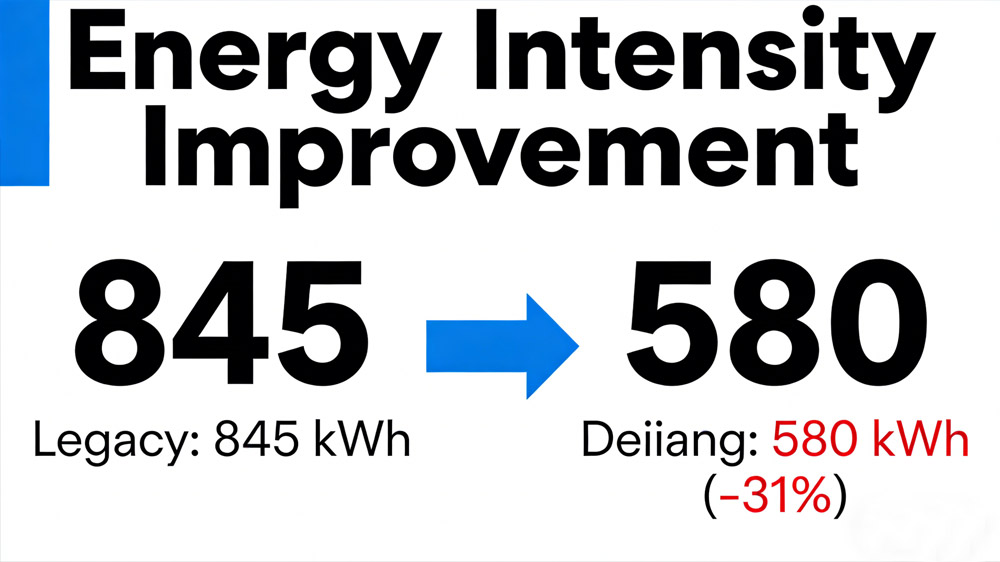

Performance Data: Actual metered data shows 31% lower HVAC energy usage (6.2 million kWh saved/year) compared to the baseline design. The project delivered an energy saving cleanroom environment that paid back the incremental cost of modularity in 18 months.
Design Phase
Rapid Deployment
Validation Data
Operational Facility
This proves that Cleanroom ROI is driven by smart engineering, not just cheap components.
ROI of Modular Cleanroom: How Fast Does It Pay Back?
Let's talk real numbers. A 5000 m² ISO 7 retrofit using Deiiang's modular approach typically costs ¥2.5M more upfront than a "patch job," but the operational savings are massive. Annual energy savings range from ¥700k to ¥1.4M depending on your local tariff. Plus, modularity reduces maintenance labor costs by approx ¥120k/year.
Payback Period = (Incremental CapEx) / (Energy Savings + O&M Savings)
Real Example: CapEx Premium = ¥2.2M ; Savings = ¥1.07M/year → Cleanroom ROI = 2.06 Years.
¥0.6/kWh → 3.2 yrs
¥0.9/kWh → 2.2 yrs
¥1.2/kWh → 1.6 yrs
High energy costs favor Deiiang Modular Solutions.
Furthermore, utilizing an energy saving cleanroom design often qualifies for government carbon reduction subsidies, further boosting your IRR.
Who Needs Modular Cleanroom? Scenarios & Decision Flow
Not every facility needs a full teardown. However, Deiiang advises a modular approach if you meet specific criteria: Do you plan to expand in 24 months? Is your energy bill >15% of OPEX? Are you in a high-tariff region? If you answered "Yes," sticking with static HVAC is costing you money.
1️⃣ Data Logging: We install temporary meters to capture 2 weeks of real load data.
2️⃣ Site Audit: Measure static pressure drops and duct leakage rates.
3️⃣ Digital Twin: We simulate the Deiiang Modular layout against your current baseline.
4️⃣ ROI Modeling: Full financial breakdown showing CapEx vs OpEx.
5️⃣ Pilot Zone: Implement a small modular zone (200m²) to prove the concept.
6️⃣ Scale Up: Full facility rollout funded by savings.
From small biotech labs in Wuhan to massive battery campuses, this logic holds: Start with data, prove with a pilot, scale with confidence.
6 Critical Steps: From Energy Diagnosis to Modular Cleanroom Transformation
Engineering execution is where the battle is won. Deiiang follows a strict protocol to ensure your retrofit doesn't become a production nightmare.
FAQ – Modular Cleanroom Answers You Actually Need
Both. For retrofits, our modular skids fit through standard doors. For new builds, we use BIM to integrate HVAC with the structure, saving 30% on construction time.
Yes. Many clients start with high-energy zones (e.g., filling lines). A 20% area upgrade often yields 35% total savings because those are the most critical zones.
We handle the Change Control. Deiiang provides full DQ/IQ/OQ documentation. We have executed 18 Pharma projects with zero validation deviations.
Contrary to belief, modularity adds redundancy. If one fan fails, the others ramp up to compensate. In a central system, if the main fan belt breaks, your whole plant is down.
Absolutely. We have demo sites in Suzhou, Shenzhen, and Chengdu. Contact us to walk the floor and see the energy meters yourself.
Deiiang Solutions – Let’s Calculate Your Savings
With 40+ successful projects and a dedicated R&D team led by Jason.peng, Deiiang™ is the leader in modular cleanroom HVAC design. We don't just sell panels; we sell guaranteed performance. Our typical client sees a reduce cleanroom operating costs outcome of 25–35% within year one.
📞 Contact Deiiang Engineering: Visit www.deiiang.com/cleanroom-savings or call our technical hotline to schedule your site visit.
*Compliance: ISO 14644-1, EU GMP Annex 1, ASHRAE 90.1 Energy Standards.
ISO 14644-1:2015 Cleanrooms and associated controlled environments
ASHRAE Standard 90.1-2019 Energy Standard for Buildings
EU GMP Annex 1 (2022) – Sterile medicinal products
