Softwall cleanrooms provide flexible, cost-effective contamination control solutions for applications where permanent construction isn't feasible or necessary. This comprehensive guide covers everything from technical specifications and installation to validation and cost analysis for softwall cleanroom systems.

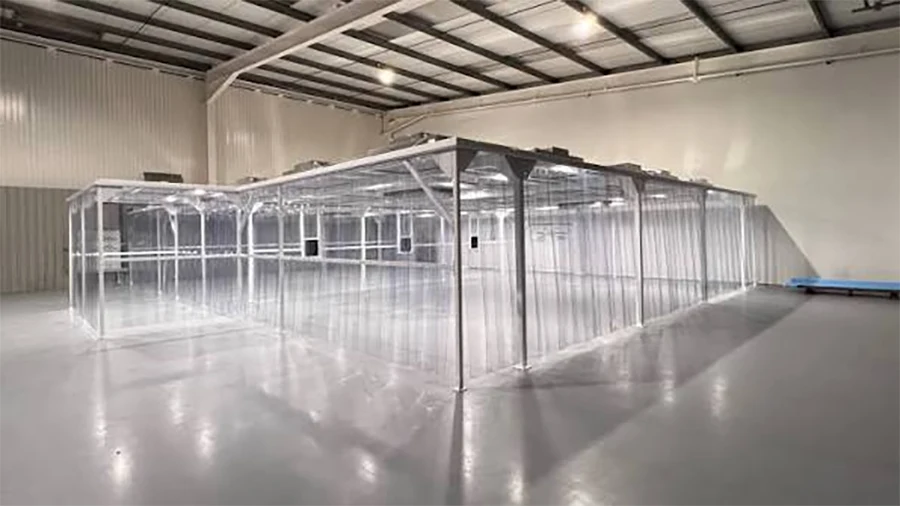

What Is a Softwall Modular Cleanroom?
A softwall modular cleanroom is a flexible enclosure system consisting of transparent PVC or PU curtains suspended from lightweight aluminum frameworks, typically integrated with portable HEPA filtration units to create controlled environments.

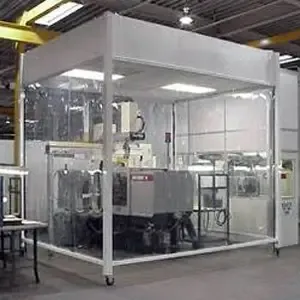

Softwall Cleanroom Component Breakdown
Rapid Deployment
Installation in days versus weeks or months for traditional cleanrooms
Cost Effective
50-70% lower initial cost compared to hardwall alternatives
Relocatable
Easy disassembly and relocation as operational needs change
Typical Use Cases & Applications
Flexible wall cleanrooms quickly boost local cleanliness in small cleanrooms and dust‑free workshops.
Internal use in electronic cleanrooms
provide ESD‑safe HEPA zones for SMD rework, inspection, assembly; features: ionizers, anti‑static curtains, passthroughs.
Internal use in semiconductor cleanrooms
create mini‑environments for wafer handling and probe stations with low‑outgassing materials and vibration control.
Internal use in optical cleanrooms
dust‑free enclosures for lens assembly, interferometry, coating inspection with tight thermal and airflow control.
Internal use in lithium‑battery cleanrooms
isolate coating, assembly, sealing; features: flame‑retardant, anti‑static materials, VOC/exhaust control.
Localized use in laboratories
temporary aseptic or analytical zones with smooth, cleanable surfaces, pass‑throughs, controlled ventilation.
Softwall vs Hardwall vs Site-built — Decision Matrix
| Parameter | Softwall | Hardwall | Site-built |
|---|---|---|---|
| Cleanliness Capability | ISO 7-9 | ISO 1-8 | ISO 1-8 |
| Durability | 3-7 years | 15-20 years | 20+ years |
| Installation Time | 1-14 days | 4-12 weeks | 6-18 months |
| Cost per m² | $500-$1,500 | $2,000-$4,000 | $3,000-$6,000 |
| ESD Control | Limited | Excellent | Excellent |
| Relocation Flexibility | High | Moderate | None |
When to Choose Softwall Cleanrooms
Choose softwall when: You need rapid deployment, have temporary space requirements, operate with limited budget, require flexibility for future changes, or need ISO 7-9 classification for non-critical processes.
Consider alternatives when: You require ISO 1-6 classification, need precise environmental control (temperature/humidity), have strict ESD requirements, or need long-term (10+ years) operational life.
Key Technical Parameters & Performance
Particle Control Capabilities
| ISO Class | Maximum Particles/m³ (≥0.5μm) | Recommended ACH | Softwall Feasibility |
|---|---|---|---|
| ISO 7 | 352,000 | 30-70 | Limited (with local laminar flow) |
| iso 8 | 3,520,000 | 10-25 | Good |
| ISO 9 | 35,200,000 | 5-15 | Excellent |
air changes Per Hour Calculation
Airflow (m³/s) = (Room Volume × ACH) / 3600
Example 1 - ISO 8 Area: 50 m² softwall cleanroom with 2.5m ceiling height at 20 ACH
Volume = 50 × 2.5 = 125 m³
Airflow = (125 × 20) / 3600 = 0.69 m³/s (2,500 m³/h)
Example 2 - Local Laminar Flow: 10 m² ISO 7 zone with 400 ACH
Volume = 10 × 2.5 = 25 m³
Airflow = (25 × 400) / 3600 = 2.78 m³/s (10,000 m³/h)
Pressure Control & Sealing
Positive Pressure: Typically +5 to +15 Pa achievable
Negative Pressure: Limited capability due to curtain flexibility
Sealing: Magnetic strips, weighted bottoms, overlapping curtains
Air Leakage: 5-15% typical, higher than hardwall systems
Materials, Components & Durability
| Component | Materials | Advantages | Limitations |
|---|---|---|---|
| Curtains | PVC, PU, transparent/anti-static variants | Flexible, transparent, easy to clean | Limited durability, can tear |
| Framework | Aluminum, stainless steel | Lightweight, corrosion resistant | Limited structural strength |
| Filtration | Portable HEPA units (H13/H14) | Mobile, easy to service | Limited capacity, noise |
| Sealing | Magnetic strips, weighted bottoms | Effective containment | Air leakage at seams |

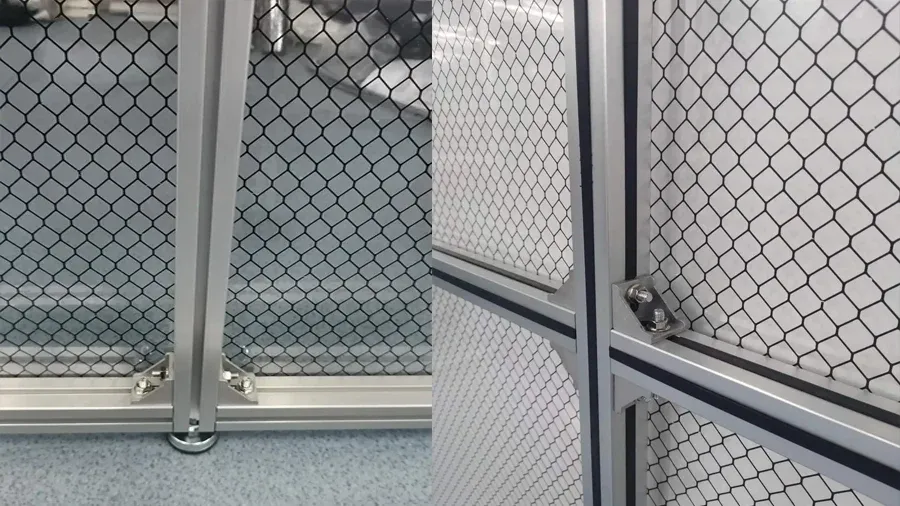

Softwall Cleanroom Material Construction
Installation, Transport & Time-to-Deploy
Standard Installation Process
Day 1: Site assessment, utility connections, framework assembly
Day 2: Curtain installation, sealing verification, HEPA unit placement
Day 3: System commissioning, basic performance testing
Day 4+: Validation testing, staff training (if required)
Deployment Timeline by Project Size
| Project Size | Area | Typical Timeline | Team Size |
|---|---|---|---|
| Small Module | 10-25 m² | 1-3 days | 2 persons |
| Medium Room | 25-100 m² | 3-7 days | 3-4 persons |
| Large Area | 100-250 m² | 1-2 weeks | 4-6 persons |
Validation, Testing & Compliance
Recommended Testing Protocol
| Test | Frequency | Standard | Acceptance Criteria |
|---|---|---|---|
| Particle Counts | Initial/6 months | ISO 14644-1 | Meet target ISO class |
| Pressure Differential | Continuous | iso 14644-3 | +5 to +15 Pa |
| Airflow Velocity | Initial/Annual | ISO 14644-3 | 0.35-0.55 m/s (laminar) |
| Smoke Visualization | Initial | ISO 14644-3 | Proper airflow pattern |
Cost, ROI & When Softwall Is Cost-Effective
Cost Breakdown by Project Size
| Cost Component | Small (25 m²) | Medium (75 m²) | Large (150 m²) |
|---|---|---|---|
| Materials & Equipment | $12,000-$18,000 | $30,000-$45,000 | $55,000-$85,000 |
| Installation | $2,000-$4,000 | $6,000-$10,000 | $12,000-$18,000 |
| Validation | $1,000-$2,000 | $2,000-$4,000 | $4,000-$6,000 |
| Total Project Cost | $15,000-$24,000 | $38,000-$59,000 | $71,000-$109,000 |
5-Year Total Cost of Ownership Comparison
| Cost Component | Softwall | Hardwall |
|---|---|---|
| Initial CAPEX | $50,000 | $150,000 |
| Annual OPEX | $8,000 | $6,000 |
| Replacement (Year 4) | $25,000 | $0 |
| 5-Year TCO | $115,000 | $180,000 |
ROI Calculation Example
Scenario: Temporary production line requiring ISO 8 environment for 2-year project
Softwall Cost: $60,000 (including installation and validation)
Hardwall Cost: $180,000 (including installation and validation)
Savings: $120,000 (67% cost reduction)
ROI: 200% return on choosing softwall versus hardwall for this temporary application
Procurement Checklist & RFP Template
Essential RFP Requirements
Target ISO classification with performance guarantees
Required air changes per hour (ACH) specifications
Factory and site acceptance testing protocols
Transportation and site access requirements
Warranty terms and service level agreements
Spare parts availability and lead times
Operator training and documentation
Maintenance schedules and service costs
Case Studies & Photo Gallery

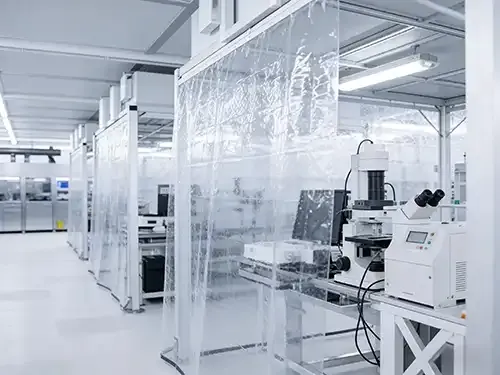

University Research Lab
Application: Nanomaterial research
Area: 35 m²
ISO Class: 8
Deployment: 3 days
Result: Achieved target particle counts, enabled flexible lab configuration

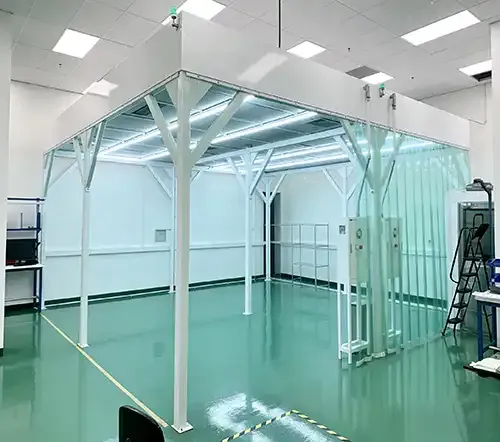

Medical Device Assembly
Application: Temporary production line
Area: 80 m²
ISO Class: 8
Deployment: 5 days
Result: 60% cost savings vs hardwall, met project timeline

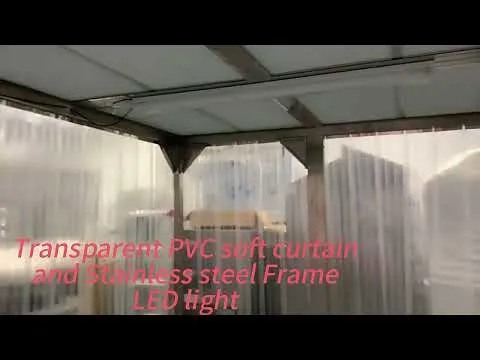

azeBUG0BUbk
Frequently Asked Questions
What ISO classes can softwall cleanrooms achieve?
Softwall cleanrooms typically achieve ISO 8-9 classification consistently. ISO 7 is possible with careful design, local laminar flow units, and optimal operational practices, but may not be sustainable long-term.
Are softwall cleanrooms suitable for pharmaceutical applications?
Softwall cleanrooms can be used for certain pharmaceutical applications, primarily for non-sterile processes, packaging areas, or temporary operations. They are generally not suitable for aseptic processing or Grade A/B areas under EU GMP.
How long do softwall cleanrooms typically last?
With proper maintenance, softwall cleanrooms typically last 3-7 years. Curtains may need replacement every 2-4 years depending on usage and cleaning frequency.
Can softwall cleanrooms handle ESD requirements?
Basic ESD control is possible with anti-static curtains and proper grounding, but for sensitive electronics, additional measures like ESD flooring and ionization may be required. Hardwall solutions are generally better for strict ESD environments.
How quickly can a softwall cleanroom be deployed?
Small to medium softwall cleanrooms (10-100 m²) can typically be deployed in 1-7 days, compared to weeks or months for hardwall alternatives.
What maintenance is required for softwall cleanrooms?
Regular maintenance includes curtain cleaning, HEPA filter replacement (typically 12-24 months), airflow verification, and inspection of seals and framework connections.
Can softwall cleanrooms be relocated?
Yes, one of the key advantages of softwall cleanrooms is their relocatability. Systems can be disassembled, moved, and reinstalled in new locations with minimal effort.
What are the noise levels in softwall cleanrooms?
Noise levels typically range from 60-68 dB, primarily from HEPA fan units. This is higher than hardwall cleanrooms but generally acceptable for most applications.
Next Steps & Contact
Softwall cleanrooms offer an ideal solution for temporary needs, budget-conscious projects, and applications requiring flexibility. If your requirements align with the capabilities outlined in this guide, our team can help you implement the right solution.
Contact Information
Phone: +1 (800) 123-4567
Email: solutions@cleanroomexpert.com
Technical Support: support@cleanroomexpert.com
Request Information
References & Standards
Standards & Guidelines
ISO 14644-1:2015 - Cleanrooms and associated controlled environments — Part 1: Classification of air cleanliness
ISO 14644-2:2015 - Cleanrooms and associated controlled environments — Part 2: Monitoring to provide evidence of cleanroom performance
iso 14644-3:2019 - Cleanrooms and associated controlled environments — Part 3: Test methods
iso 14644-4:2022 - Cleanrooms and associated controlled environments — Part 4: Design, construction and start-up
IEST-RP-CC012.3 - Considerations in Cleanroom Design
EU GMP Annex 1: Manufacture of Sterile Medicinal Products
Technical References
Whyte, W. (2010). Cleanroom Technology: Fundamentals of Design, Testing and Operation
ASHRAE Handbook - HVAC Applications (Clean Spaces Chapter)
ICCCS Recommended Practices for Cleanroom Operations
