What Are The Basic Parameters And Unit Conversions Of Laboratory Fume Hoods?

In a laboratory environment, fume hoods are key equipment to ensure experimental safety and operational effectiveness. In order to ensure the performance and safety of fume hoods, it is essential to understand their basic parameters and unit conversions. The following is a detailed introduction to the basic parameters of laboratory fume hoods and their unit conversions.

What Are The Basic Parameters And Unit Conversions Of Laboratory Fume Hoods?

Air volume (Q)

Air volume refers to the total amount of gas medium passing through a unit cross section per unit time, and is usually used to indicate the size of air flow. The units are mainly the following:

• Cubic meters per hour (m³/h), abbreviated as CMH;

• Cubic meters per minute (m³/min), abbreviated as CMM;

• Cubic meters per second (m³/s), abbreviated as CMS.

For example, 1 m³/s = 60 m³/min = 3600 m³/h. According to international standards, the air volume of fume hoods should be designed according to the actual needs of the laboratory to ensure effective airflow control and removal of pollutants.

Wind Pressure

Wind pressure is divided into dynamic pressure and static pressure. Dynamic pressure refers to the pressure generated by the flow of the medium, which is always positive; static pressure is the pressure at a certain point inside the static fluid, which is usually independent of the air flow velocity. The units of wind pressure include:

• Pascal (Pa)

• Meter water column (mmH₂O), 1 mmH₂O ≈ 9.80665 Pa.

In laboratory fume hoods, the design of wind pressure should follow relevant standards to ensure sufficient airflow and negative pressure environment to prevent the escape of harmful gases.

Speed

The speed is the speed at which the fan impeller rotates, usually expressed in revolutions per minute (RPM). The speed of the fan directly affects the performance of air volume and air pressure. The speed and the working efficiency of the fan should be considered when selecting to ensure that the fan operates in the best condition.

Shaft Power

The shaft power is the actual power required by the fan when it is running. The power of the motor should be greater than the shaft power to ensure that the fan can operate stably and overcome the system resistance. Commonly used power units are kilowatts (kW) and horsepower (HP), where:

• 1 imperial horsepower = 0.746 kW

• 1 metric horsepower = 0.735 kW

When selecting a motor, it is necessary to configure it reasonably according to the shaft power of the fan and the system requirements.

Balance Grade

The balance grade is used to measure the residual imbalance of rotating equipment during operation. According to national standards, the balance grade of the fan impeller should reach the G6.3 standard, and high-quality products can reach the G4.0 standard. The higher the balance grade, the less vibration and noise generated during operation, and the bearing life will be correspondingly extended, improving the overall quality and service life of the equipment.

Common Unit Conversion

Air volume conversion:

• 1 m³/h = 0.2778 L/s

• 1 CFM (cubic feet per minute) ≈ 0.02832 m³/min

Air pressure conversion:

• 1 standard atmospheric pressure = 101.325 kPa

• 1 mmHg = 133.322 Pa

Power conversion: 1 HP = 0.7457 kW

By understanding these basic parameters and unit conversions, laboratory personnel can better select and use fume hoods to ensure laboratory safety and efficiency.

Laboratory Fume Hood Size Specifications

Laboratory fume hoods come in various sizes to accommodate different laboratory setups. Common dimensions include widths of 3 to 8 feet, depths of 2 to 3 feet, and heights around 6.5 to 7 feet, ensuring versatility for diverse applications.

Fume hood sizes are determined by the intended use and available laboratory space. Standard widths range from 3 to 8 feet, with depths typically between 2 to 3 feet. The height is usually around 6.5 to 7 feet. Proper sizing ensures adequate airflow and workspace for safe handling of hazardous materials.

Selecting the appropriate size for a laboratory fume hood is crucial for safety and efficiency. Fume hoods are available in various dimensions to fit specific laboratory needs, with standard widths often ranging from 3 to 8 feet. Depths typically range from 2 to 3 feet, while heights are generally around 6.5 to 7 feet. The choice of size depends on the types of processes conducted inside the hood and the required airflow. A properly sized fume hood maximizes containment efficiency and minimizes the risk of exposure to hazardous substances. Additionally, space considerations and the layout of laboratory equipment can influence the final selection of fume hood dimensions.

Choosing the right size for a fume hood is essential for ensuring safety, compliance, and effective containment in laboratory environments.

Fume hood sizes can vary based on specific laboratory requirements. Standard configurations are designed to provide adequate workspace while maintaining effective airflow. Proper sizing is vital to ensure that the hood operates efficiently and protects users from exposure to harmful substances.

Laboratory fume hoods should be selected based on the specific applications and the layout of the laboratory. Regular assessments of hood size and airflow are necessary to maintain optimal performance and safety standards.

Laboratory Fume Hood Duct Size

The duct size for laboratory fume hoods is critical for maintaining efficient airflow and proper exhaust of hazardous fumes. The duct must accommodate the volume of air being drawn from the hood and must also be compatible with the overall Ventilation system of the laboratory. Standard duct sizes typically range from 6 to 12 inches in diameter, depending on the size and type of the fume hood. Proper sizing ensures that the system can handle the required airflow without causing excessive resistance or noise.

Choosing the right duct size is essential for maintaining optimal face velocity, which is crucial for protecting laboratory personnel from exposure to harmful substances. A duct that is too small can create restrictions, leading to increased turbulence and uneven airflow, while a duct that is too large may result in low face velocity, compromising containment. Regular assessments of duct size and condition are necessary to ensure effective operation.

Compliance with relevant domestic and international standards, such as the American National Standards Institute (ANSI) and the Occupational Safety and Health Administration (OSHA), is vital when designing duct systems for fume hoods. These standards provide guidelines for airflow rates, duct construction, and maintenance practices, ensuring that laboratory environments adhere to safety regulations and best practices.

• Duct sizes typically range from 6 to 12 inches in diameter, depending on the hood's specifications.

• Proper duct sizing maintains optimal airflow and ensures effective fume containment.

• Compliance with standards like ANSI and OSHA is essential for safe fume hood operation.

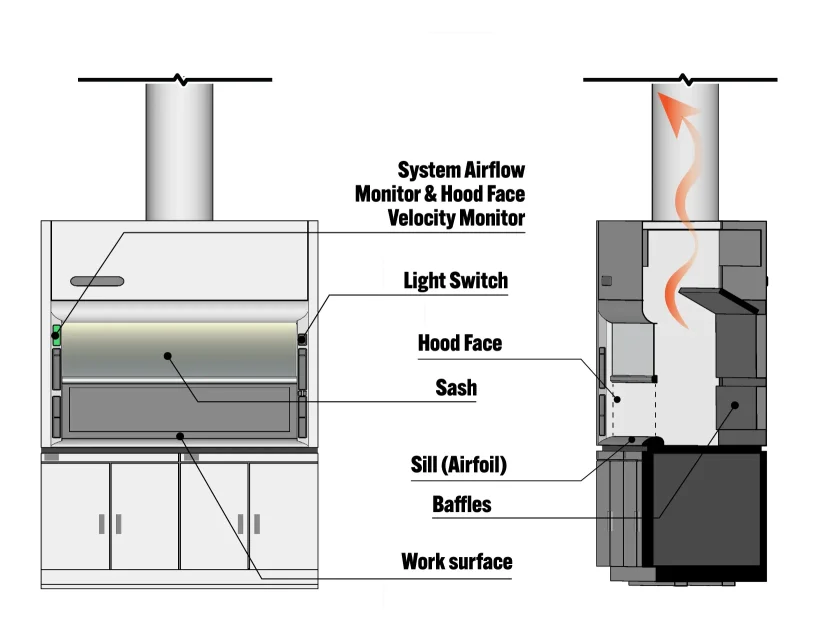

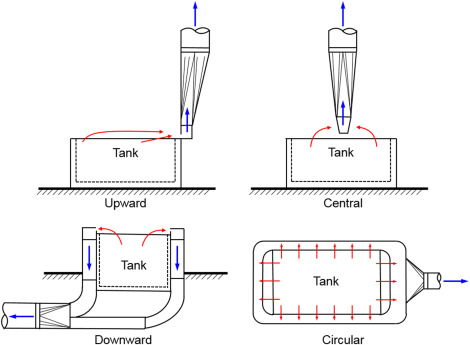

Laboratory Fume Hood Airflow Management

Airflow management in laboratory fume hoods is crucial for safety and efficiency. Proper airflow ensures that hazardous fumes are effectively captured and exhausted. Regular monitoring of face velocity and airflow patterns helps maintain optimal performance and compliance with safety standards, protecting laboratory personnel from exposure to harmful substances. Effective airflow management is essential in laboratory fume hoods to ensure the safe handling of hazardous materials. The face velocity, typically maintained between 80 and 120 feet per minute, is critical for capturing and containing fumes. Regular monitoring of airflow is necessary to ensure that the hood operates within these parameters, as fluctuations can compromise user safety.

Adjustable sash heights and variable air volumes can help optimize airflow, but they must be carefully managed to avoid creating turbulent conditions that may affect containment. Laboratory personnel should be trained to understand the importance of airflow management and how to operate the fume hood correctly. Additionally, regular maintenance, including inspection of ductwork and airflow devices, is crucial to prevent obstructions and ensure compliance with safety standards.

Laboratory Fume Hood Main Functions

1. Containment of Hazardous Substances

Laboratory fume hoods primarily function to contain hazardous fumes, vapors, and particulates generated during experiments. By drawing contaminated air away from users, they provide a crucial layer of protection, promoting a safe working environment.

2. Protection of Laboratory Personnel

One of the main functions of a laboratory fume hood is to protect personnel from exposure to harmful chemicals. When conducting experiments involving volatile substances, the hood captures and exhausts toxic vapors, preventing them from circulating in the lab. This containment is vital for ensuring the safety and health of laboratory workers.

Furthermore, fume hoods are designed to maintain a constant airflow, creating a negative pressure environment that effectively pulls contaminants away from users. This is especially important during processes like chemical reactions or handling hazardous materials.

Additionally, fume hoods serve as a physical barrier, shielding users from splashes or accidental releases of chemicals. Proper utilization and maintenance of fume hoods are essential for maximizing their protective functions and ensuring compliance with health and safety regulations.

3. Compliance with Safety Standards

Fume hoods are essential for adhering to safety regulations in laboratory environments.

Laboratory Fume Hood Noise Levels

Laboratory fume hoods can generate noise during operation, primarily due to airflow and exhaust systems. The noise levels are influenced by factors such as duct design, airflow velocity, and the type of fan used. Maintaining acceptable noise levels is essential for a conducive working environment.

Typical noise levels for laboratory fume hoods range from 60 to 85 decibels. This range can vary based on the hood's design and operational conditions. Prolonged exposure to high noise levels can be detrimental to laboratory personnel health and productivity.

Excessive noise can lead to communication difficulties and increased stress among laboratory personnel, underscoring the need for effective noise control measures in laboratory settings.

To manage noise levels, laboratories may implement sound-dampening features, such as insulated ductwork and vibration isolation systems. Regular maintenance of fans and exhaust systems is also crucial to ensure they operate quietly and efficiently. Compliance with relevant standards, such as those from the American National Standards Institute (ANSI), is necessary for ensuring acceptable noise levels.

Monitoring and controlling noise levels in fume hoods is essential for maintaining a safe and productive laboratory environment. Adhering to guidelines and implementing noise reduction measures can significantly improve comfort for laboratory personnel.
