What Principles And Requirements Should Be Followed In Laboratory Ventilation Design？

When designing laboratory Ventilation systems, several principles and requirements must be followed to ensure safety, efficiency, and compliance with relevant standards. Here are the key principles and requirements:

What Principles And Requirements Should Be Followed In Laboratory Ventilation Design？

1. airflow design Principles

• Sufficient air changes: Laboratories should have a minimum airflow rate that ensures adequate dilution and removal of airborne contaminants. Typically, this is around 6 to 12 air changes per hour, depending on the lab's specific use.

• Directional Airflow: The design should promote directional airflow towards the fume hoods or other containment devices to prevent the spread of contaminants within the laboratory.

2. Fume Hood Design Standards

• Face Velocity: Maintain an average face velocity of 80–120 linear feet per minute (lfpm) at the sash opening to ensure effective capture of hazardous fumes.

• Sash Management: Design the fume hood to allow for easy adjustment of sash height, and incorporate features that encourage users to keep the sash at optimal levels.

3. Duct and exhaust system Specifications

• Material Selection: Use corrosion-resistant materials for ductwork and exhaust systems to withstand chemical exposure.

• Smooth Duct Design: Ensure ducts are smooth-walled and designed with gentle curves to minimize turbulence and pressure drops.

• Dedicated Exhaust: Each fume hood should have a dedicated exhaust system to prevent cross-contamination.

4. Energy Efficiency

• Variable Air volume (VAV) Systems: Implement VAV systems that adjust airflow based on real-time demand to reduce energy consumption.

• Heat Recovery: Consider heat recovery systems to improve energy efficiency by reclaiming heat from exhaust air.

5. Safety and Compliance

• Regulatory Compliance: Follow standards set by organizations such as OSHA, ANSI, ACGIH, and NIOSH for ventilation design, ensuring compliance with local regulations.

• Emergency Systems: Incorporate emergency systems, such as alarms and automatic shut-off valves, to manage airflow in case of system failure or hazardous conditions.

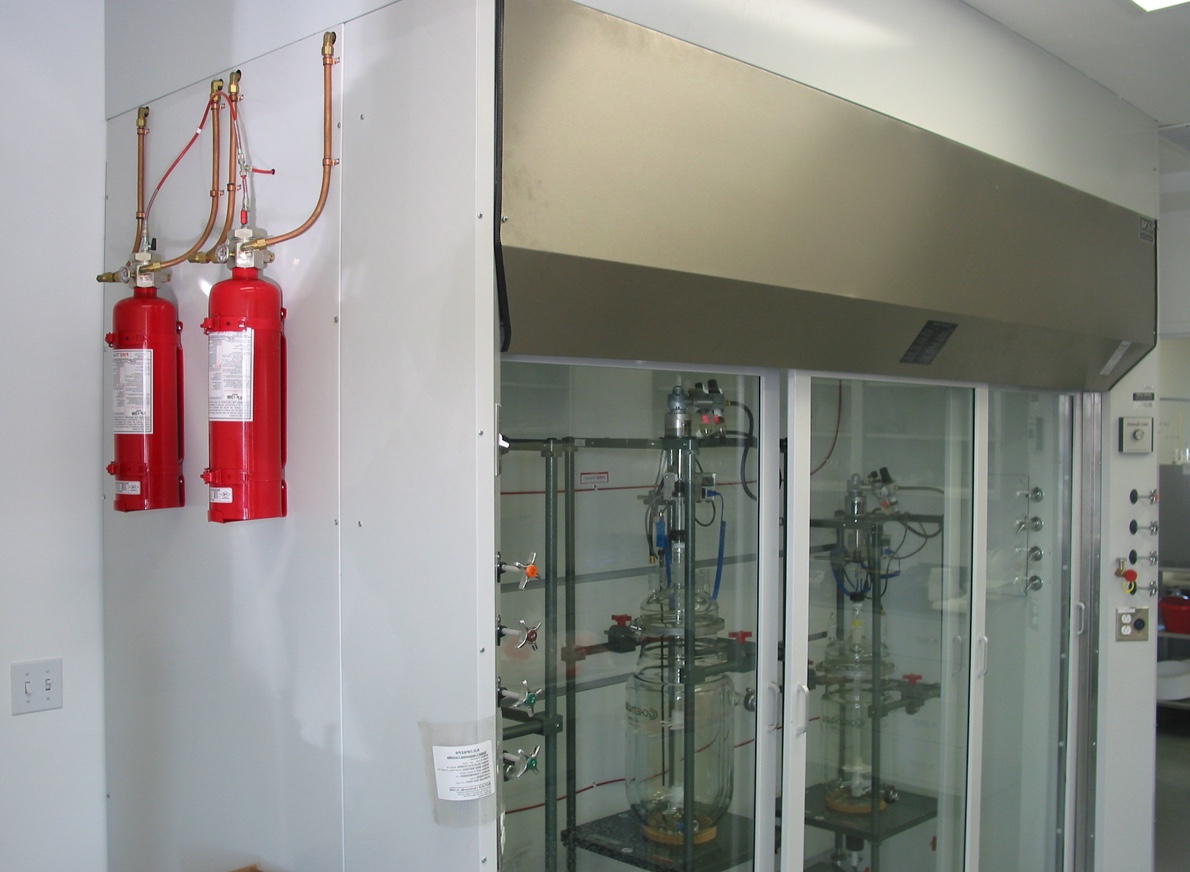

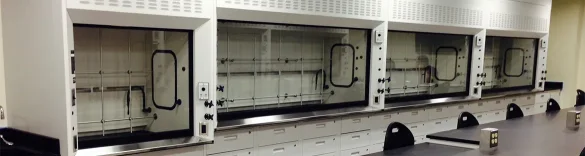

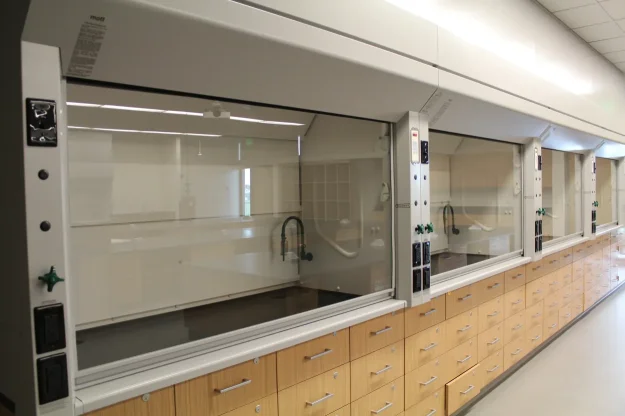

Laboratory Fume Hood Configuration

Laboratory fume hood configuration involves the arrangement and design of fume hoods to optimize safety and functionality. Proper configuration ensures effective containment of hazardous fumes, providing a controlled environment for laboratory operations.

Hood Types

Different types of fume hoods serve various laboratory needs, including traditional, ductless, and bypass hoods. Traditional hoods are vented to the outside, while ductless hoods filter air and recirculate it. Bypass hoods allow varying airflow rates while maintaining effective capture, suited for specific applications requiring flexibility.

Sash Design

Sash design is crucial for user safety and airflow control. Vertical sashes minimize exposure while maximizing the work area. Some hoods feature adjustable sashes, allowing users to customize airflow. Incorporating sash position indicators can help maintain optimal settings, while safety alarms alert users to airflow issues.

Placement and Spacing

Proper placement and spacing of fume hoods within the laboratory are essential for safety and accessibility. Hoods should be located away from doors, windows, and high-traffic areas to prevent airflow disruption.

Laboratory Fume Hood Materials

Laboratory fume hoods are constructed from various materials selected for their durability, chemical resistance, and safety features. The choice of materials affects the fume hood's performance and longevity, making it crucial to select appropriate components.

1. Interior Linings and Surfaces: Common materials for interior linings include epoxy resin, stainless steel, and polypropylene. These materials resist corrosion and chemical damage, ensuring a safe environment for handling hazardous substances. The smooth surfaces also facilitate easy cleaning and maintenance.

2. Structural Components: The structural framework typically utilizes steel or aluminum for strength and stability. Exterior panels are often made from high-pressure laminate or painted steel, providing both durability and aesthetic appeal. Selecting materials that meet relevant safety standards, such as those outlined by ANSI/AIHA Z9.5, ensures compliance and reliability in laboratory settings.

How Do Fume Hoods Reduce Exposure to Hazardous Substances?

Fume hoods are essential in reducing exposure to hazardous substances in laboratories. Here are several ways they accomplish this:

• Airflow Control: Fume hoods are designed to maintain a controlled airflow direction, drawing harmful fumes and vapors away from the user and into the exhaust system.

• Containment: The hood's enclosed design effectively contains chemical spills or accidental releases, preventing the escape of harmful substances into the laboratory environment.

• Sash Functionality: The adjustable sash allows users to work at a safe distance from hazardous materials while maintaining optimal airflow and reducing exposure.

• Filtration Systems: Some fume hoods incorporate filtration systems to remove particulates and vapors, providing an additional layer of protection against contaminants.

• Emergency Features: Many hoods are equipped with safety alarms and automatic shut-off systems to alert users of airflow issues or hazards, enhancing overall safety.

• Regular Maintenance: Routine checks and maintenance ensure that the fume hood operates effectively, maintaining airflow rates and preventing potential leaks.

• User Training: Proper training in the use of fume hoods empowers laboratory personnel to follow safe practices, further minimizing exposure risks.

Laboratory Fume Hood Cost

Initial Investment

The cost of a laboratory fume hood can vary significantly based on type, size, and features. Traditional fume hoods generally range from $3,000 to $10,000, while specialized hoods may exceed this range due to advanced filtration and monitoring technologies.

Installation Expenses

Installation costs must also be considered, which can add an additional $1,000 to $5,000, depending on the complexity of the ductwork and ventilation system requirements. Proper installation is critical for safety and efficiency, requiring skilled professionals to ensure compliance with relevant standards like ANSI/AIHA Z9.5.

Operational and Maintenance Costs

Ongoing operational costs, including energy consumption and maintenance, should be factored into the total cost of ownership. Regular maintenance is essential for optimal performance and safety, with estimated costs ranging from $200 to $1,000 annually, depending on usage and system design.

Long-Term Value

Investing in a high-quality fume hood can lead to long-term savings through reduced health risks, improved laboratory efficiency, and compliance with safety regulations, ultimately justifying the initial and ongoing expenses.

Preparation Before Using Fume Hood

Before using a fume hood, it's essential to prepare the workspace to ensure safety and effectiveness. This includes checking the functionality of the hood and organizing materials properly. Prior to use, verify that the fume hood is operating correctly by checking the airflow indicator and ensuring the sash is at the recommended height. Confirm that the exhaust system isfunctioning properly and that there are no obstructions in the hood or ductwork. Inspect the interior for any spills or residues from previous use and clean as necessary. Ensure that the fume hood is compliant with safety standards, such as those outlined by ANSI/AIHA Z9.5, to guarantee a safe working environment.

Organize all materials and equipment needed for your experiment before starting work. Place hazardous materials within the fume hood, ensuring they are secured and clearly labeled. Keep the workspace tidy and free from unnecessary clutter to facilitate effective airflow and reduce the risk of accidents.

Summary

Laboratory fume hoods are critical safety devices designed to protect users from hazardous substances by providing effective ventilation, containment, and air quality control. Proper configuration, material selection, and maintenance are essential for their effectiveness. Understanding costs, preparation requirements, and operational standards, including relevant domestic and international guidelines, contributes to a safe laboratory environment. By adhering to established protocols and practices, laboratory personnel can minimize exposure risks while maximizing operational efficiency.
