What is a modular cleanroom?

A modular cleanroom is a flexible, pre-engineered system designed to meet specific CleanRoom standards for controlled environments. It is constructed using modular components (such as walls, ceilings, flooring, and HVAC systems) that can be assembled, modified, or expanded as needed, making it a scalable solution for various industries.

What is a Modular Cleanroom?

A modular cleanroom is a controlled environment designed to minimize contamination and particulates, essential for various industries, particularly pharmaceuticals, biotechnology, and Semiconductor manufacturing. Unlike traditional cleanrooms that require extensive construction, modular cleanrooms are prefabricated systems that can be assembled and disassembled easily, providing flexibility in design and use.

Key Features of Modular Cleanrooms

Modular cleanrooms are characterized by their customizable design. They can be configured to meet specific cleanliness standards, such as ISO5 to ISO9, depending on the application. An ISO5 cleanroom allows no more than 3,520 particles per cubic meter of air, which is crucial for sensitive manufacturing processes.

Flexibility and Scalability

One of the major advantages of modular cleanrooms is their scalability. Companies can start with a smaller cleanroom and expand as needs grow. For instance, a facility might begin with a 100 square foot cleanroom and later increase to 1,000 square feet. This adaptability is vital in industries that experience fluctuating demands.

Cost-Effectiveness

Modular cleanrooms are often more cost-effective than traditional cleanroom construction. Research indicates that modular cleanrooms can reduce construction time by up to 50%, leading to significant savings in both time and labor costs. Additionally, these systems can be relocated, which decreases the need for new infrastructure investments.

Compliance with International Standards

Modular cleanrooms must comply with various international standards to ensure safety and efficacy. For instance, the ISO 14644 series outlines the CleanRoom Classification and testing methods. Compliance with the Good Manufacturing Practice (GMP) guidelines is also critical, particularly in the pharmaceutical sector.

Relevant Standards and Guidelines

• ISO 14644- Cleanrooms and associated controlled environments

• ISO 13485- Quality management systems for medical devices

• GMP- Good Manufacturing Practice regulations

• ISO 9001- Quality management systems requirements

• USP <797>- Pharmacy compounding sterile preparations

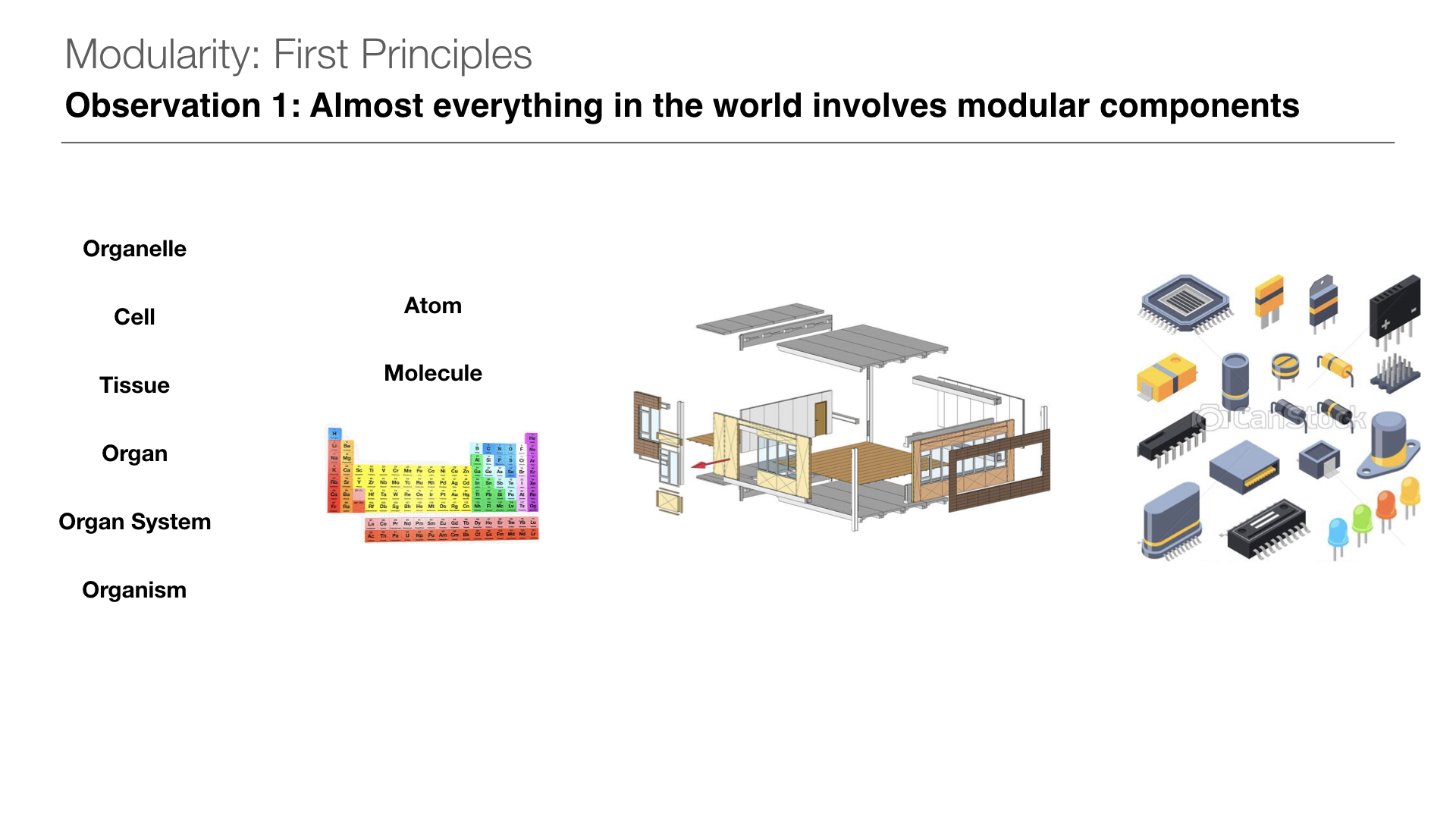

What is a Modular Design System?

1. Definition and Purpose: A modular design system is an approach that uses standardized units or modules to create complex structures. This method enhances flexibility and efficiency, allowing for easy assembly, disassembly, and reconfiguration of products or environments.

2. Benefits of Modular Design: One significant benefit of modular design is reduced construction time. Projects often see a time savings of 30-50%, leading to quicker deployment. This efficiency can significantly lower overall project costs and resource consumption.

3. Applications Across Industries: Modular design systems are utilized in various sectors, including construction, manufacturing, and technology. In cleanroom environments, for instance, modular designs allow for scalable solutions that adapt to changing production needs while maintaining compliance with industry standards.

ISO Modular Clean Room Standards

Cleanroom Classification

iso 14644-1 outlines the classification of modular cleanrooms based on allowable airborne particle concentrations. For instance, ISO5 permits a maximum of 3,520 particles per cubic meter, crucial for operations requiring high levels of sterility.

Monitoring and Validation

iso 14644-2 emphasizes the importance of monitoring cleanroom environments. Regular testing and validation are mandated to ensure compliance with cleanliness standards, safeguarding product integrity and minimizing contamination risks.

What Are the Different Types of Modular Cleanrooms?

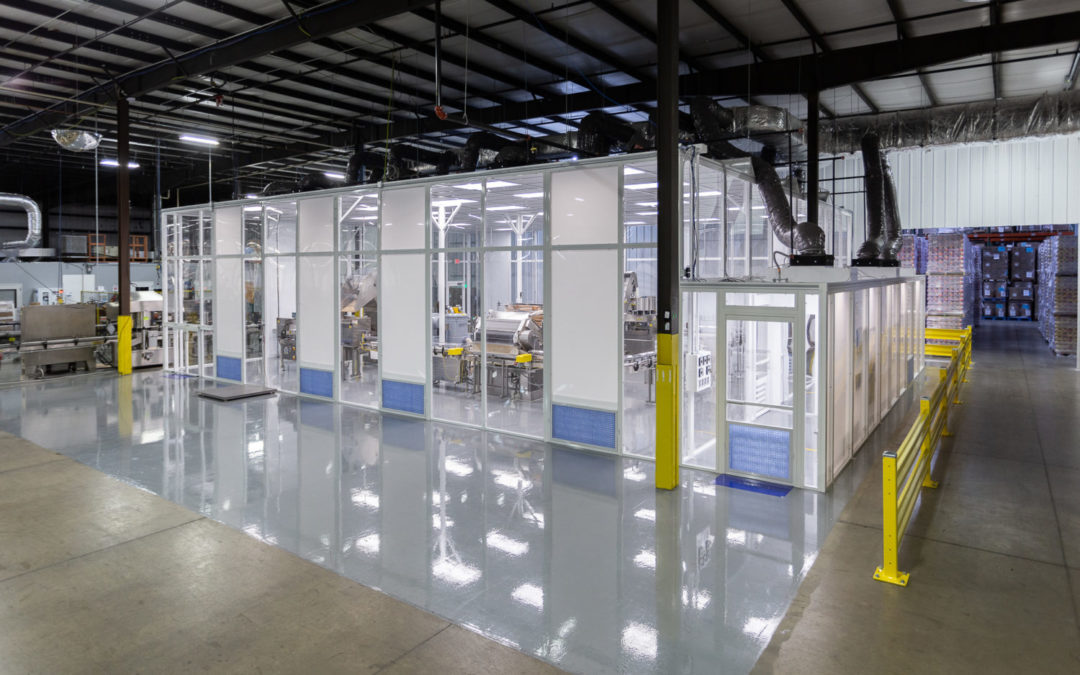

• HardWall modular Cleanrooms

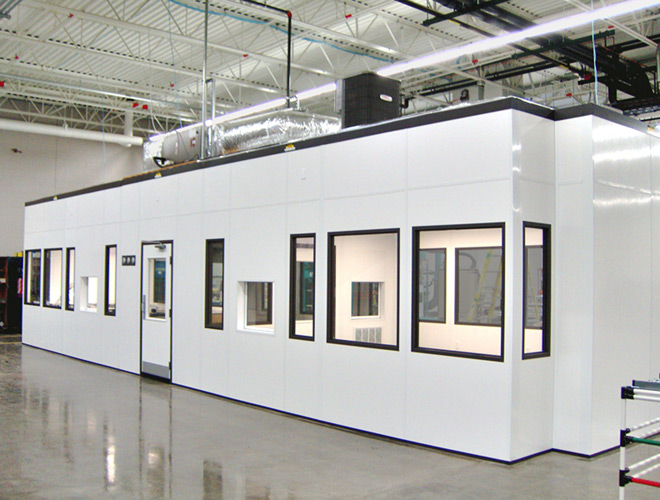

Hardwall cleanrooms feature rigid walls made from materials like gypsum or metal. These structures provide excellent contamination control and are common in pharmaceutical and semiconductor manufacturing due to their durability and ease of cleaning.

• SoftWall modular Cleanrooms

Softwall cleanrooms utilize fabric or flexible materials for walls, making them lightweight and easily transportable. These cleanrooms are ideal for temporary or less critical applications where rapid deployment is necessary.

• Controlled Environment Cleanrooms

Controlled environment Modular clean rooms are designed to maintain specific temperature and humidity levels. They are critical in industries like biotechnology, where environmental conditions must be carefully regulated to ensure product quality and consistency.

• Isolators

Isolators are specialized Modular cleanroom environments that provide a high level of containment. Used primarily for handling hazardous materials or protecting sensitive processes, they ensure that personnel and products remain isolated from potential contaminants.

What Does A Clean Room Consist Of?

1. Structural Components

A Modular cleanroom’s structure includes walls, ceilings, and floors designed to minimize contamination. These components are often constructed from smooth, non-porous materials that can withstand frequent cleaning and disinfection to maintain the required cleanliness levels.

2. Air Filtration Systems

Air filtration is a critical element of Modular cleanroom design. High-Efficiency Particulate Air (HEPA) filters or Ultra-Low Penetration Air (ULPA) filters are used to remove airborne particulates, ensuring that the air quality meets specific ISO classification standards.

3. Environmental Control Systems

Modular Cleanrooms are equipped with advanced environmental control systems to regulate temperature, humidity, and airflow. These systems ensure stable conditions are maintained, crucial for processes sensitive to environmental fluctuations.

The Difference Between a Modular Clean Room and a Sterile Room

• Definition of Clean Rooms

Modular Cleanrooms are controlled environments designed to minimize airborne particles and contaminants. They are classified based on the level of cleanliness required for specific industrial applications, such as pharmaceuticals or Electronics manufacturing.

• Definition of Sterile Rooms

Sterile rooms, on the other hand, are specifically designed to achieve and maintain sterility. These environments are crucial in healthcare settings, particularly for surgical procedures and the preparation of sterile pharmaceuticals.

• Application Differences

Modular Cleanrooms are used in various industries, including semiconductor and aerospace, where contamination control is vital. Sterile rooms are predominantly found in hospitals and laboratories, where preventing infections and ensuring patient safety is paramount.

• Design Considerations

The design of Modular cleanrooms emphasizes airflow patterns and filtration to minimize particle contamination. Sterile rooms prioritize surfaces and materials that can withstand disinfection and sterilization processes, ensuring that all surfaces are free from viable microorganisms.

• User Access and Protocols

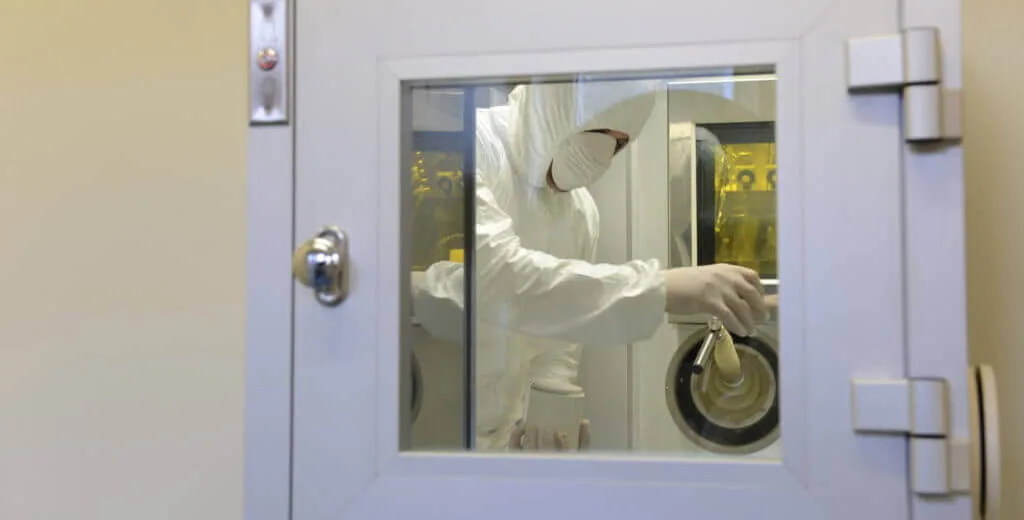

Access to Modular cleanrooms is controlled to limit contamination but may allow more personnel entry compared to sterile rooms. Sterile rooms often implement stricter protocols, such as wearing sterile gowns and using specialized entry systems, to prevent any potential contamination.

Key Features of a Modular Cleanroom:

Flexibility: Modular cleanrooms can be customized in size, design, and specifications to suit different applications and industries.

Easier Installation: The pre-fabricated components allow for faster assembly and disassembly, which is ideal for projects with time constraints or temporary cleanroom needs.

Scalability: The modular design allows for easy expansion or reconfiguration to accommodate changing requirements in cleanroom size or functionality.

Cost-Effective: Compared to traditional construction, modular cleanrooms are typically more cost-efficient because of their standardized components and faster installation times.

Applications:

• Pharmaceutical manufacturing

• Electronics assembly

• Medical device production

• Research laboratories

Modular cleanrooms offer the advantage of being adaptable and easier to maintain, with fewer disruptions to operations.
