How Can the Air Quality in an Air Shower Be Tested?

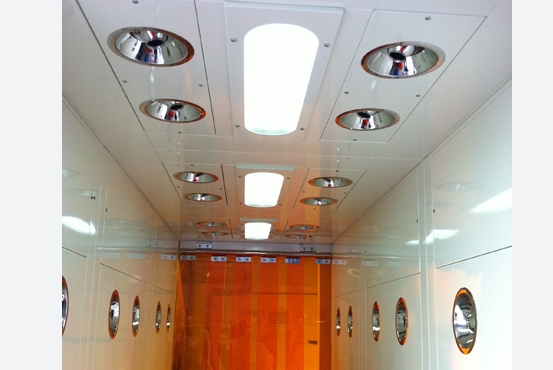

Air showers are essential components of cleanroom environments, designed to minimize contamination by using high-velocity air jets to remove particles from personnel and objects before they enter controlled areas. Ensuring the air quality within these showers meets industry standards is crucial for maintaining the integrity of the cleanroom environment. Regular testing can identify potential issues, such as inadequate filtration or airflow problems, that could compromise cleanliness. This article outlines various methods for testing air quality in air showers, ensuring optimal performance and compliance with cleanliness protocols.

Testing air quality in an air shower involves measuring particulate levels, assessing airflow velocity, and checking for proper filtration. These assessments ensure that the air shower effectively reduces contaminants before personnel and materials enter clean areas.

1. Measuring Particulate Levels

Measuring the concentration of airborne particles is crucial for assessing air quality.

In air showers, the primary focus is on particulate matter, which includes dust, skin flakes, and other contaminants. Commonly used instruments for this purpose include particle counters, which can detect particles of various sizes, typically ranging from 0.3 to 10 micrometers.

Regular monitoring is essential, especially in high-traffic areas where the accumulation of particles can occur. Results should be compared against established CleanRoom standards, such as ISO classifications, to determine compliance.

2. Assessing Airflow Velocity

Airflow velocity is a critical factor in the effectiveness of an air shower.

The ideal airflow velocity in an air shower is typically between 20 to 30 feet per minute (FPM).

This airflow is necessary to ensure that contaminants are effectively displaced from personnel and objects entering the cleanroom. To measure airflow velocity, an anemometer can be used. This instrument provides real-time readings, allowing for quick adjustments to fan speeds if necessary to maintain optimal conditions.

Regular checks ensure that the airflow remains consistent, preventing any drop in performance. Furthermore, airflow patterns should be evaluated to ensure that air is directed appropriately without dead zones where contaminants could linger.

Establishing a routine testing schedule for airflow velocity can help detect any changes or inconsistencies over time, allowing for timely maintenance or adjustments to the system. Maintaining the correct airflow is vital for the overall performance of the cleanroom and the efficacy of the air shower.

3. Checking Filtration Efficiency

The filtration system within an air shower is vital for maintaining air quality.

Air showers typically use HEPA (High-Efficiency Particulate Air) filters to capture particles. Testing the efficiency of these filters involves performing airflow resistance tests and particle retention tests.

Airflow resistance tests measure the pressure drop across the filter, indicating whether it is clogged or needs replacement. A significant increase in pressure drop suggests that the filter is becoming less effective at trapping particles.

Particle retention tests involve introducing a known quantity of particles upstream of the filter and measuring how many pass through. This test can help ascertain the filter's integrity and effectiveness.

Regular maintenance and replacement of filters are crucial for ensuring optimal performance. Additionally, visual inspections should be conducted to check for physical damage, which could compromise filtering capabilities.

Establishing a systematic approach to testing filtration efficiency, including scheduled inspections and replacements, can help maintain air quality standards in the air shower.

Testing air quality in an air shower is vital for ensuring the effectiveness of contamination control measures in cleanrooms. By regularly measuring particulate levels, assessing airflow velocity, and checking filtration efficiency, cleanroom operators can maintain optimal performance and compliance with industry standards. Such proactive measures contribute significantly to the overall cleanliness and safety of controlled environments.

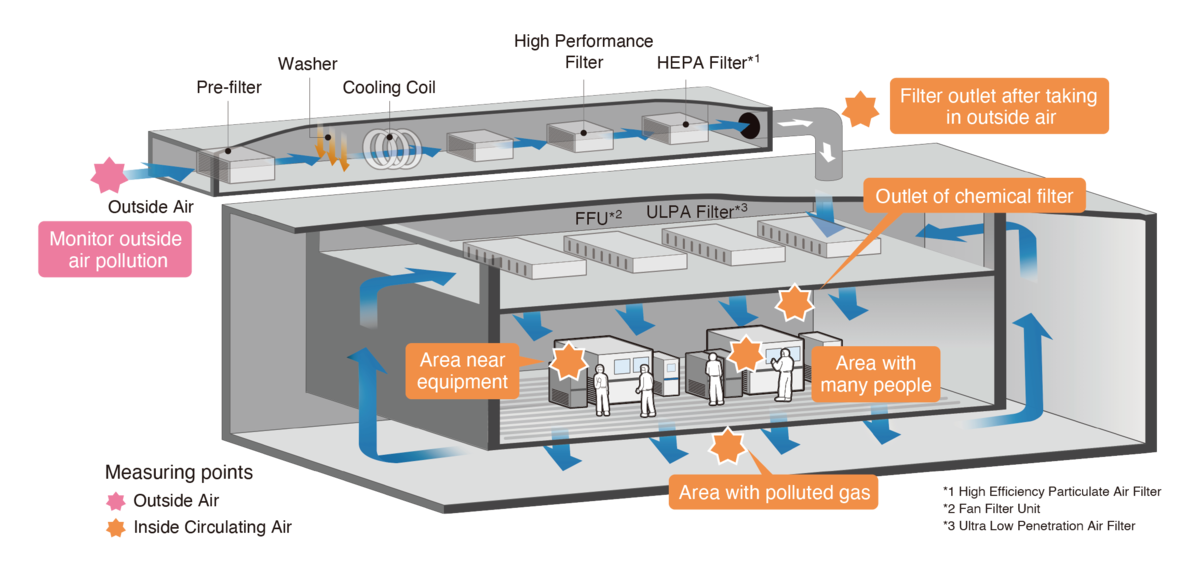

Clean Room Air Quality Detection

Clean room air quality detection is crucial for ensuring that environments maintain the required levels of cleanliness and contamination control. Regular monitoring ensures compliance with industry standards, promotes the health and safety of personnel, and protects sensitive materials or products.

• Importance of Air Quality Detection

  Air quality detection in cleanrooms ensures that airborne particles, microbial contamination, and other pollutants remain within acceptable limits. Continuous monitoring is essential for meeting regulatory requirements and maintaining a sterile or controlled environment.

• Methods of Detection

  Air quality detection is typically performed using sensors that measure particle concentration, air velocity, humidity, temperature, and microbial presence. These sensors provide real-time data, enabling timely corrective actions to maintain air purity. Particulate counters and microbiological air samplers are commonly used to evaluate contamination levels in critical cleanroom areas. Regular checks allow for adjustments in filtration and Ventilation systems, improving overall efficiency and performance.

  These devices ensure compliance with standards such as ISO 14644, guaranteeing that air quality meets the necessary thresholds for specific CleanRoom classes.

• Benefits of Regular Monitoring

  By detecting air quality issues early, cleanroom operators can prevent contamination, reduce risks, and ensure the reliability of the environment. It also supports process optimization and ensures consistent product quality in highly regulated industries.

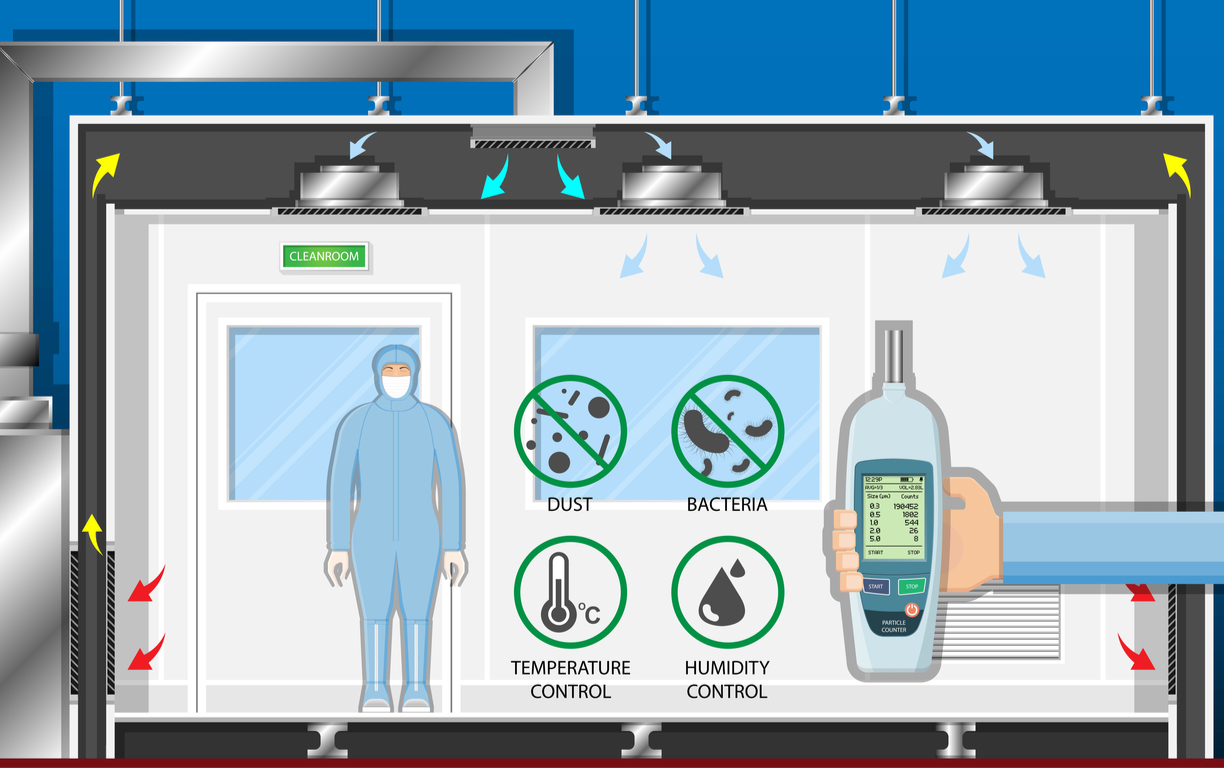

Clean Room Air Quality Detection Equipment

1. Particle Counters: Particle counters are essential tools used to measure the concentration of airborne particles in cleanrooms. These devices provide real-time data, ensuring that the cleanroom environment complies with ISO cleanliness standards.

2. Microbial Samplers: Microbial air samplers are used to detect the presence of microorganisms in the air. They work by drawing air through a collection medium, such as agar plates, where any microbes present can be cultured. These devices help monitor contamination risks in environments where sterility is paramount, such as pharmaceutical manufacturing or medical device production. Regular microbial sampling allows for early detection of potential outbreaks of contamination, enabling corrective measures to be taken quickly.

For example, microbial samplers can detect bacterial, fungal, and viral contaminants that may otherwise go unnoticed. Effective microbial monitoring can improve overall Cleanroom performance and minimize contamination risks.

3. Air Velocity Meters: Air velocity meters measure the airflow within a cleanroom, ensuring that air is circulating correctly to prevent contaminants from accumulating. These meters are vital for optimizing ventilation and maintaining air pressure.

4. Humidity and Temperature Sensors: Humidity and temperature sensors help monitor the environmental conditions within A CleanRoom. These parameters play a critical role in contamination control and equipment performance, as fluctuations can affect both the stability of products and the efficiency of filtration systems.

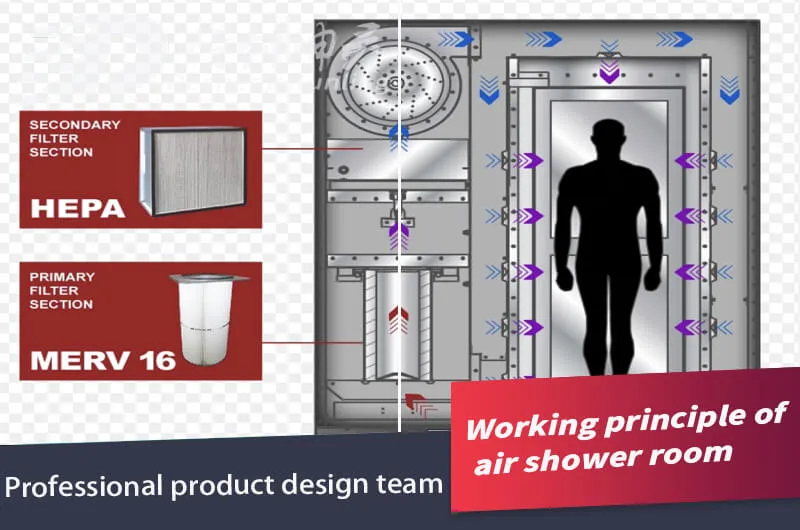

Air Shower High Efficiency Filtration System

Pre-Filter Stage

The pre-filter stage captures larger particles from the air to protect high-efficiency filters from premature clogging. This ensures that the system operates at optimal airflow rates and extends the lifespan of the more delicate HEPA or ULPA filters.

High-Efficiency Filtration Process

The high-efficiency filtration system in air showers typically uses HEPA or ULPA filters to remove fine particles, down to 0.3 microns or even smaller, ensuring that personnel and materials entering cleanrooms are thoroughly decontaminated. The HEPA filter, with a minimum efficiency of 99.97% for 0.3-micron particles, provides one of the highest filtration efficiencies available, removing contaminants from the air before they enter the cleanroom. ULPA filters offer even higher efficiencies (99.999%) and are used in environments where an ultra-clean environment is essential.

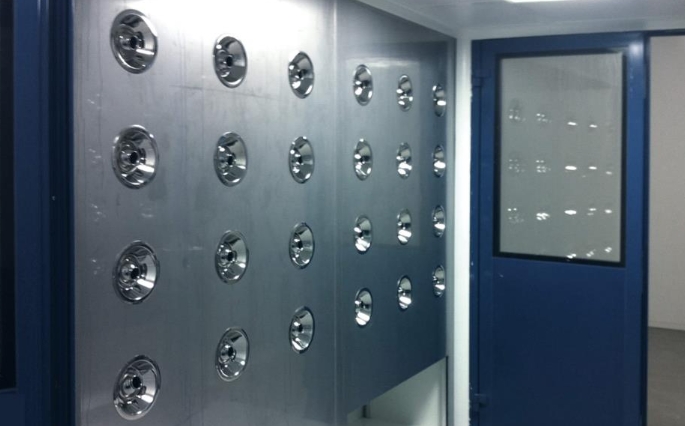

The air shower’s filtration system works by continuously circulating filtered air at high velocities through nozzles to blow contaminants off surfaces, reducing the risk of cross-contamination. The filters also improve air quality by ensuring that any residual particles are caught before re-entering the cleanroom or workspace.

Proper maintenance and regular replacement of HEPA or ULPA filters are essential to ensure continuous high performance. Clogged filters reduce airflow and increase energy consumption, so they must be cleaned or replaced according to the manufacturer's guidelines.

Air Shower Filtration Monitoring

Monitoring the filtration system ensures the air shower operates efficiently, maintaining both air quality and energy efficiency. Regular inspections help to identify any filter degradation, preventing the build-up of contaminants in the cleanroom.

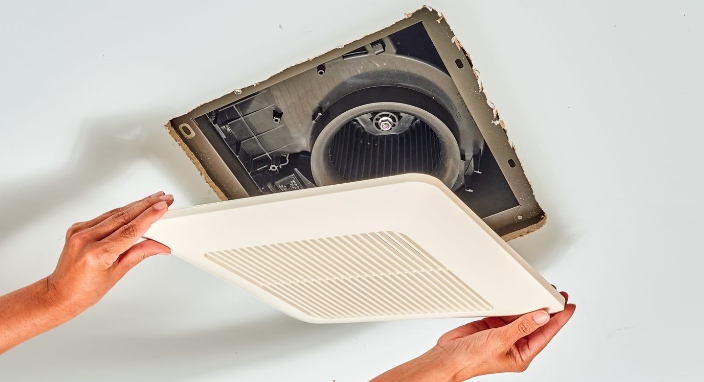

Air Shower Dedicated Fan Configuration

The fan configuration in an air shower is critical for maintaining optimal airflow and pressure to ensure the effective removal of contaminants. The dedicated fan must provide high-velocity air while maintaining consistent performance.

Fan Requirements:

Air shower fans are typically high-efficiency, high-pressure units that generate the required airflow to create powerful air jets for contamination removal. These fans must be robust, capable of continuous operation without compromising airflow consistency. In many designs, variable fan speed is used to adjust airflow based on usage and requirements, offering flexibility while optimizing energy consumption.

Design Considerations:

When configuring the fan system, it’s important to consider factors such as room size, air circulation needs, and energy efficiency. The fan must be capable of generating the required pressure and airflow to ensure proper operation of the high-efficiency filtration system. Additionally, noise reduction features may be incorporated into the design to ensure the air shower operates quietly, which is particularly important in environments where noise control is a priority, such as research laboratories or manufacturing spaces.

Efficiency, durability, and the ability to maintain consistent performance across a wide range of operating conditions are key factors in selecting the right air shower fan configuration. Optimized fans contribute to reducing energy consumption, lowering operational costs while maintaining high decontamination standards.

What Pollution Can Air Shower Remove

Air showers are designed to remove contaminants like dust, hair, skin particles, and other airborne pollutants from individuals and materials before they enter critical cleanroom environments.

1. Dust and Particulate Matter

Air showers effectively remove particulate matter, including dust, dirt, and other larger contaminants that can compromise the cleanliness of a controlled environment. The high-velocity airflow helps to dislodge particles from surfaces.

2. Microbial Contamination

Air showers also help reduce microbial contamination, such as bacteria, fungi, and viruses, by using high-efficiency filtration systems that trap these tiny particles before they enter the cleanroom. Air filtration systems with HEPA or ULPA filters capture microorganisms, ensuring a sterile environment.

3. Human-Sourced Contaminants

Human-generated contaminants, such as skin flakes, hair, and clothing fibers, are also removed by air showers. The powerful jets of filtered air target every part of the body and clothing to blow away these pollutants. Regular use of air showers ensures that personnel entering cleanroom areas do not introduce additional contamination, helping maintain a controlled environment and improving overall cleanliness standards.

4. Chemical Pollutants

Some air shower systems equipped with specialized filtration can also help reduce chemical contaminants, such as volatile organic compounds (VOCs), in environments requiring stringent air purity standards.

Summary

In conclusion, maintaining optimal air quality in cleanrooms is crucial for the safety and efficiency of operations in highly sensitive environments. Regular air quality detection, using appropriate equipment, ensures compliance with cleanliness standards, reduces contamination risks, and protects both personnel and products. Additionally, choosing the right air shower system, filtration methods, and fan configurations plays a vital role in maintaining the desired air purity levels. By staying proactive and monitoring air quality consistently, organizations can improve operational performance, reduce costs, and meet the stringent requirements of industries such as pharmaceuticals, biotechnology, and Electronics. Effective air shower systems and air quality detection practices ultimately contribute to a safer and more efficient working environment.
