Can HEPA filters be used in HVAC systems?

Can HEPA filters be used in HVAC systems?

Yes, HEPA filters can be used in HVAC systems that are designed or adapted for their airflow resistance. The main constraint is not the filter itself but the system's ability to move the required airflow through a high-efficiency media pack.

A standard HVAC system built for MERV 8 to MERV 13 filters usually cannot accept a HEPA stage without modification. Fan capacity, housing depth, sealing, and controls all need review. HVAC HEPA filter compatibility is a system-level question, not a filter-level one.

This article covers compatibility criteria, HEPA filter installation requirements, performance specifications, and several cleanroom aspects that apply to HEPA filter installation.

lo_2iYyP_NU

Introduction-Application of Hepa in HVAC systems

The direct answer is yes, but with conditions. HEPA filters in HVAC systems are common in hospitals, pharmaceutical facilities, semiconductor plants, and laboratories. They are not common in ordinary office or retail HVAC.

The difference is HVAC pressure drop. A MERV 8 filter may add 50 to 100 Pa. A HEPA filter can add 200 to 600 Pa across its service life. That changes fan selection, energy use, and airflow balance.

This article walks through the compatibility checks, HEPA filter installation requirements, selection logic, and HEPA filter maintenance plan that make a HEPA stage work inside an HVAC system.

Cleanroom HVAC filtration and retrofit HVAC with HEPA filters are covered in dedicated sections. EACH section provides quantitative checks that engineers can apply directly.

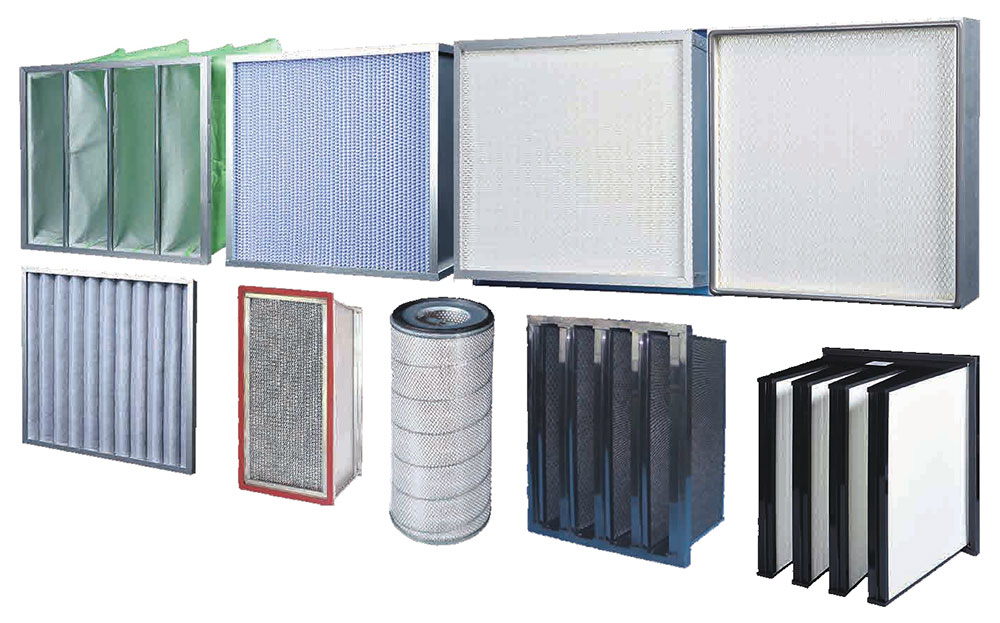

How HEPA filters work in HVAC systems

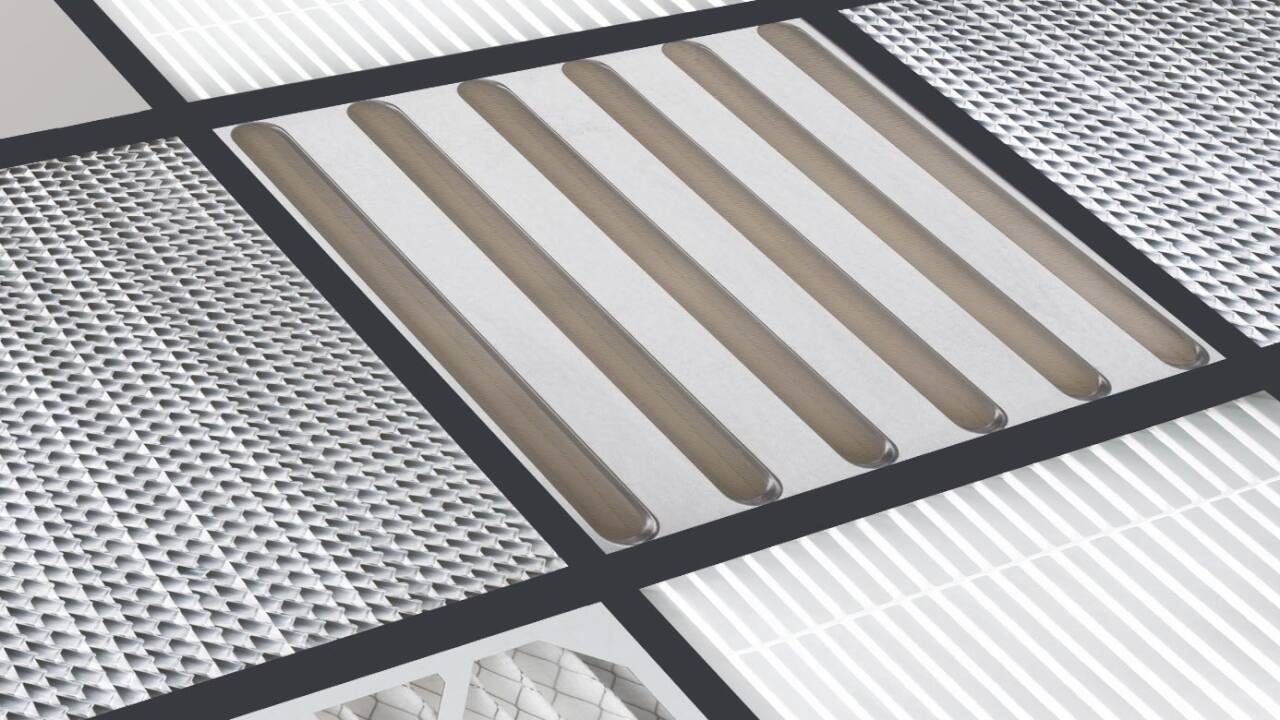

HEPA filtration is a mechanical capture process. Particles are trapped in a dense mat of fine fibers as air passes through the media. The role of the media is not merely that of an inspection device; it utilizes interception, impaction, and diffusion.

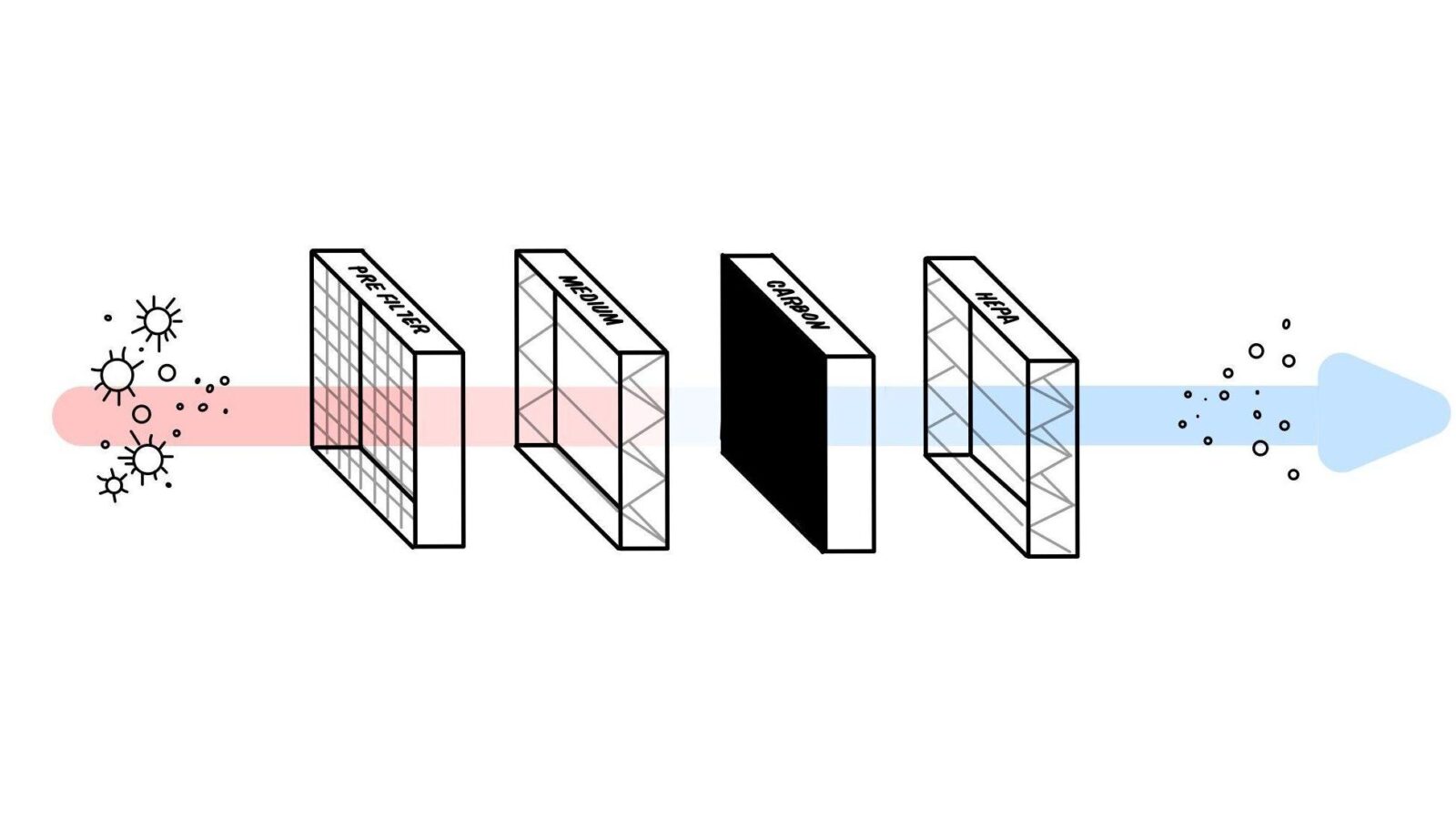

In an HVAC system, the HEPA stage is generally the last filtration device encountered by the supply air before entering the occupied area or cleanroom. Upstream stages take care of coarse particulate matter and protect the HEPA media.

The efficiency of the filter is just one of the factors that contribute to the performance of the system. Airflow distribution, sealing and balancing of the pressure determine what arrives into the room. A filter with very high efficiency but with a bypass gap will not produce the desired outcome.

How does a HEPA filter capture airborne particles?

The process of capturing airborne particles takes place through three methods acting concurrently. Interception catches particles that travel along the airflow closely to a fiber. Impaction catches heavy particles that do not travel with the airstream due to their momentum.

Diffusion is the capturing of minute particles through their random movement, where they eventually come into contact with fiber. For glass-fiber media, the most penetrating particle size is in the sub-micron region. Test results at this range determine which category the filter belongs to.

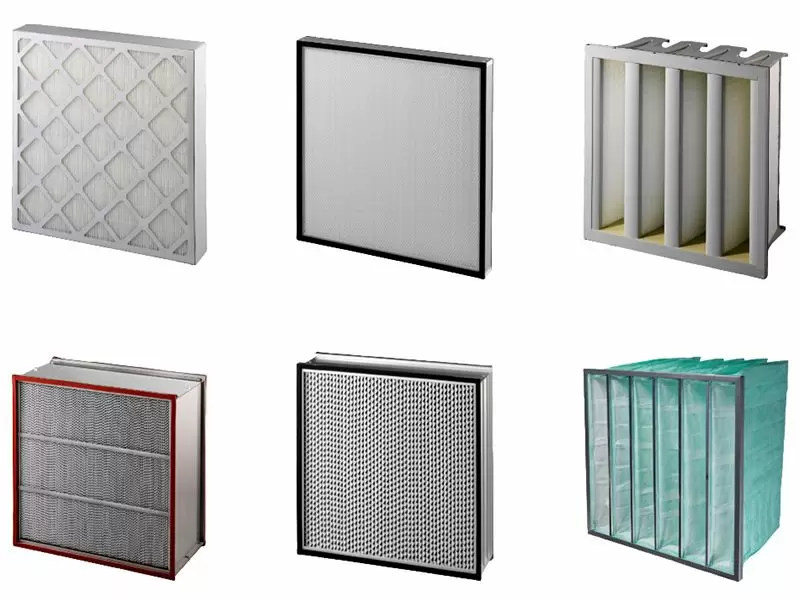

Where does a HEPA filter fit in an HVAC air-handling system?

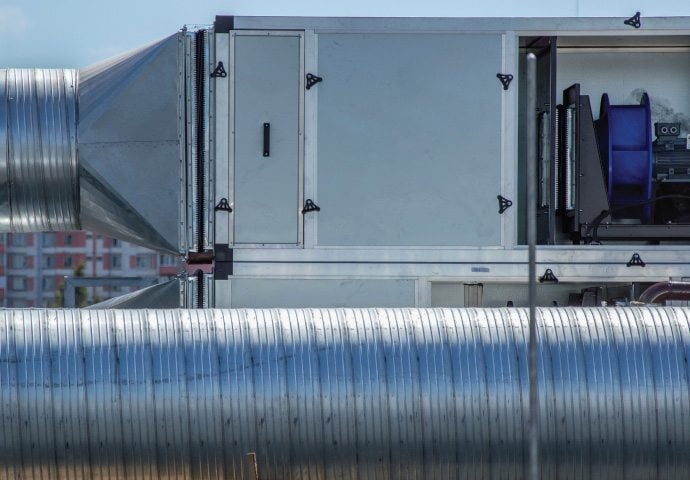

The HEPA stage may be found in different locations within an HVAC air-handling system. In the terminal condition, the HEPA filter is installed at the supply diffuser or ceiling grid in the cleanroom. Conversely, in the centralized position, the HEPA filter can be found in the air-handling unit or a filter housing.

The terminal configuration is more dominant in cleanroom HVAC filtration applications. The central application is more prevalent in general retrofit HVAC with HEPA filters.

HVAC compatibility: airflow, fan capacity, and pressure drop

HVAC HEPA filter compatibility is based on three numbers: the design airflow, the available fan static pressure, and the HEPA filter resistance at that airflow. If the fan static pressure is not sufficient to overcome the filter resistance when loaded, the airflow will decrease.

The system must be evaluated for both initial resistance as well as final resistance. A filter rated for 200 Pa has the potential to load the filter and become incompatible at a final resistance of 500 Pa if the fan curve cannot provide the necessary airflow at that pressure.

Pre-filter loading affects fan compatibility with the HEPA filter. A pre-filter that loads quickly will also increase the system static pressure. If the total static pressure on the fan exceeds its operating capacity, the airflow capacity will drop.

How does HEPA filter pressure drop affect HVAC airflow?

Every fan operating curve has a pressure-airflow curve. As resistance increases, the fan moves less air. If the HEPA stage increases the system pressure by 200 Pa but the system is already operating near the fan's limit, then the fan static pressure will further reduce the airflow.

For instance, a fan might have a rated capacity of 5,000 m³/h at 400 Pa. However, it might only have a capacity of 4,200 m³/h at 600 Pa. That is a 16% reduction in airflow. Reducing airflow changes the air changes per hour and possibly changes room pressure balance.

Deiiang catalogue data reflects the resistance range. If the Combined H13/H14 were used in 592×592×292 mm (four-pleat) it has a 20.04 m² media area and a capacity of 2,500 m³/h. The acceptable resolution level for resistance is ≤200 Pa (H13) or ≤220 Pa (H14).

What system checks determine HEPA filter compatibility?

Compatibility can be verified through a short checklist and calculation.

Formula: Required Fan Static Pressure = (Total Resistance of Existing System) + (Required HEPA Filter Resistance at Design Airflow). If the total exceeds the fan's rated specifications on its performance curve, the system is incompatible without a fan upgrade.

• Confirm design airflow at filter location.
• Confirm fan curve capability at loaded filter resistance.
• Confirm housing dimensions and filter depth.
• Confirm available space for pre-filtration.
• Confirm that controls will maintain pressure balance.

HEPA filter installation and housing requirements

Installing HEPA filters within HVAC systems requires greater detail than installing standard filters. The housing must be designed to provide a proper seal at the filter frame that prevents bypass through the media pack.

Bypass is the primary factor in HEPA filter installation failure. Air that bypasses the filter carries unfiltered particles into the supply air. Even a minor gap in the filter installation can render the filter ineffective.

The housing must also be capable of supporting the weight of the HEPA filter as well as allowing access for testing and replacement. Terminal housings within cleanrooms normally include a test port for on-site testing.

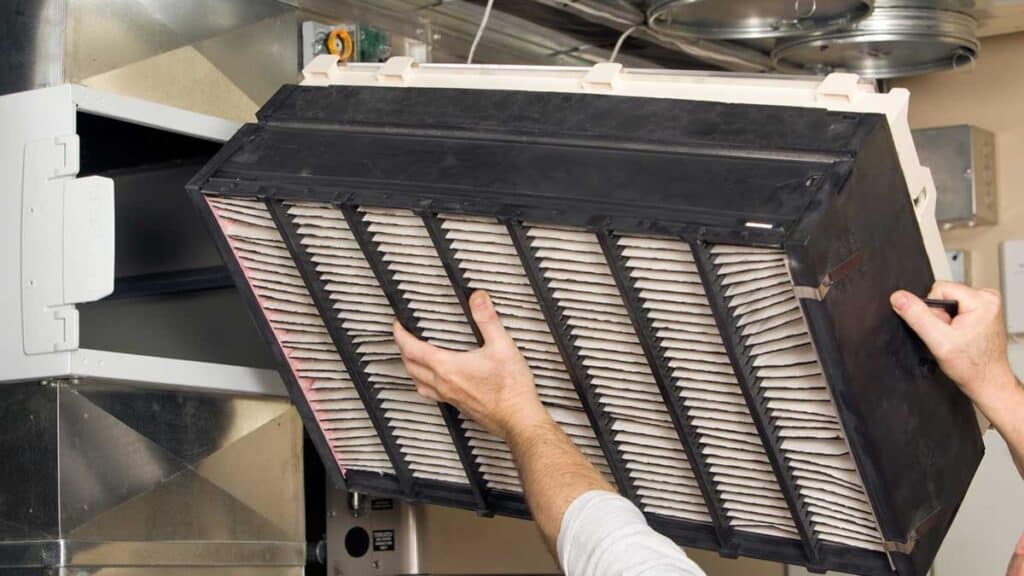

How should a HEPA filter be installed in an HVAC system?

Installation must be completed in the order denoted.

How can filter bypass and leakage be prevented?

To avoid bypass one must consider the gasket design and the condition of the housing. An example of an effective solution would be to create a gel seal or knife-edge seal. Mechanical gaskets provide adequate coverage too, but the key thing is that all parts must be flat on the housing surface.

Deiiang has developed the DOP Integrated Filter which includes a built-in testing port and allows for on-the-spot scanning without the need for removing the filters from their housings. The box-shaped filter is manufactured with cleanrooms in mind.

HVAC HEPA filter selection and performance specifications

In order to select the filter one must consider cleanliness requirement, air flow rate, and compliance standards. Efficiency class and standard must be read together with each other.

EN 1822 and ISO 29463 define HEPA and ULPA classes which are used for cleanroom HVAC filtration [1][2]. EN 779 is a legacy general ventilation classification for pre-filters [8]. ASHRAE 52.2 using the MERV scale still continues to be a major element of HVAC filter rating [7].

Please do not mix MERV rating with HEPA class. The two frameworks use different particle sizes and aerosols for test purposes. A filter rated MERV 17 does not mean that it is the same as H13 or H14.

Which HEPA efficiency class is appropriate for an HVAC application?

The class is determined based on the required level of cleanliness and the risk associated with the process involved. Standard HVAC installations for enhanced air quality can be done with MERV 13–16 without HEPA filters.

Hospitals, laboratories, and cleanrooms normally require either H13 or H14 filters, while ultra-clean laboratories and semiconductor manufacturing plants can need ULPA U15–U17 filters. The class should always conform with the room classification and application specifications [2][5].

How should filter test standards and performance reports be interpreted?

Effective performance reports are supposed to provide information regarding the standard, edition, the testing method employed, and the class. The report has to indicate whether classification was done using the MPPS test or based on a fixed particle size test [1].

According to the Deiiang catalogue, H13 filters can achieve 99.97 to 99.99% and H14 filters 99.995 to 99.999% efficiency at 0.3 microns. Such figures are catalogue values at a fixed particle size. They do not ｒｅｐｌａｃｅ the applicable model-specific EN 1822 test report.

Cleanroom HVAC requirements and system validation

The filtering process for HVAC cleanrooms is a system requirement since the filter is one of many elements within a given design. The design takes into consideration airflow configuration, pressure cascade, air change rate, and installation sealing.

iso 14644-1 gives cleanroom classification based on the concentration of particles [3]. However, ISO 14644-1 does not address filter classification. The applicable test method is provided for in iso 14644-3 [4].

Room classification uses the entire system, whereas the cleanroom checking process is influenced by the operating status and the condition of the filter. Since HEPA filtering does not guarantee cleanroom conditions solely, it must be combined with other elements of the cleaning system.

Does installing a HEPA filter make an HVAC system suitable for a cleanroom?

No. A HEPA filter is only one requirement for the HVAC system. Other requirements such as the architecture of the air change rate and airflow pattern must also be addressed.

The validated cleanroom must undergo a final leak test. In addition to the leak test, validation must confirm the particle counts within the cleanroom during its operating state [3][4].

How are cleanroom airflow and filter performance verified?

Verification is accomplished according to the facility's qualification protocol. Generally, it encompasses measurement of flow balance, pressure, leak testing the filters, and particle counting in the cleanroom.

The leak test method and acceptance levels have to be agreed upon in advance. The leak test method and aerosol testing procedure depend on the standard applied and the requirements of the cleanroom [4][5].

Retrofitting an existing HVAC system with HEPA filters

Retrofit HVAC with HEPA filters is possible but requires a full evaluation of the existing system in terms of fans, housing, ducting, and controls.

The evaluation must compare the current performance of the existing system to the airflow and resistance requirements. If the fan cannot meet the air delivery requirements, either a more suitable fan must be installed or a filter with lower resistance chosen.

A real Deiiang project demonstrates how this is accomplished. It involved the retrofitting of a pharmaceutical packaging cleanroom targeting iso 6 despite high ambient particulate levels and limited ceiling plenum space.

What upgrades may be needed to retrofit HEPA filtration?

Modifications needed depend on the extent to which existing installations fall short of the HEPA requirement.

• Fan upgrade or variable speed drive.
• New or modified filter housing.
• Additional pre-filtration stage.
• Ductwork modification for airflow balance.
• Controls update for pressure monitoring.

What should a real HVAC HEPA retrofit case study document?

A case study should document the original state of affairs, the design objective, selection of filters, and monitored results confirming the success of the endeavor. It must include pre-retrofit and post-retrofit measurements.

Deiiang supplied low-profile combination filters with H14 efficiency at 592 x 592 x 292 mm, performing at a flow rate of 2,500 m³/h with 20.04 m² of media and ≤220 Pa initial resistance. Silicone-free gaskets plus F7 pre-filters were included.

Table 3: Performance data pre- and post-retrofit

Table 3: Performance data pre- and post-retrofit.

The reported outcome: particle concentrations went from ISO 7 to ISO 6 in a stable manner. Prior to shipment, per-unit DOP scan testing had been conducted. The frequency of the variable frequency drive was increased from 42 Hz to 50 Hz to allow continued attainment of the designed airflow.

HEPA filter maintenance, monitoring, and replacement

In HVAC systems, HEPA filter maintenance is condition-based rather than calendar-based. The filter will be replaced if the resistance exceeds the site action limit, if the airflow falls below design, or if integrity testing fails.

Monitoring of differential pressure is the major indicator. A slow steady increase indicates normal loading. An abrupt drop signifies media rupture or seal issues and requires immediate attention.

Visual checks and airflow monitoring validate the pressure measurements. The monitoring protocol will be documented and linked to the facility's verification requirements.

How should HVAC HEPA filter performance be monitored?

Monitoring uses three routine procedures.

• Differential pressure across the HEPA stage.
• Supply airflow at the facility's design measurement point.
• Visual inspection of the housing and seal.

Readings must be taken at comparable airflow. A pressure reading taken at a different airflow cannot be compared directly with the baseline.

Common warning signs of bypass or failure:

• Sudden drop in differential pressure.
• Visible dust accumulation on the downstream side of the frame.
• Increased room particle count during routine monitoring.
• Uneven pressure readings across the filter face.

When should an HVAC HEPA filter be replaced?

Replacement is triggered by the site's action limit, not by a fixed interval. Deiiang catalogue data lists final resistance at 400–600 Pa for the combined H13/H14 filters. The site limit may be lower depending on fan capacity.

Other triggers include failed integrity testing, visible damage, or a sudden change in pressure drop. The replacement plan must be defined at commissioning.

Choosing a HEPA filter solution for your HVAC application

Selection depends on the application. A general HVAC upgrade, hospital ward, pharmaceutical cleanroom, and semiconductor fab each have different requirements.

The system must have matching filter type, standard, airflow, and resistance. The verification plan must conform to the compliance framework.

Deiiang catalogue data provides a good starting point for matching airflow with a model size. The four-pleat H14 592×592×292 mm filter handles 2,500 m³/h with 20.04 m² of media area.

Which HVAC and cleanroom applications benefit from HEPA filters?

HEPA filters are beneficial for applications where particle control is mandatory. Hospitals, pharmaceutical manufacturing, semiconductor manufacturing, laboratories, and food processing are some examples.

General commercial HVAC units seldom require HEPA filtration because a high-MERV filtration system can adequately provide the required indoor air quality standard with less resistance and at lower cost [7].

What information should buyers provide when requesting a Deiiang solution?

The request must specify the required parameters clearly.

• Design airflow expressed in m³/h.
• Available filter depth and face dimensions.
• Class and standard to be achieved.
• Initial and final resistance limits.
• Operating temperature and humidity.
• Any requirements for gaskets and seal materials.
• Documentation for testing results.

Frequently Asked Questions

Can HEPA filters be used in standard HVAC systems?

Yes, but only if the system can deliver the required airflow at the HEPA filter's loaded resistance. Standard systems usually require modifications to the fan, housing, or pre-filter stages. HVAC HEPA filter compatibility should be confirmed before purchase.

Do HEPA filters reduce HVAC airflow?

Generally yes. HEPA filtration increases total pressure losses, causing less airflow from the fan unless the fan has spare capacity. Actual reductions depend on the fan curve and the filter's resistance at the operating point. Lower-resistance models reduce the impact.

Can I ｒｅｐｌａｃｅ a MERV filter with a HEPA filter?

No, not directly. HEPA vs. MERV filters differ in resistance and dimensions. The housing, fan, and sealing must be evaluated. A direct substitution is rarely possible without modification.

What should be checked before installing a HEPA filter in an HVAC system?

Check the fan curve, housing dimensions, seal interface, pre-filtration stage, and available space. Confirm that the system can maintain airflow at loaded resistance. Also confirm the required test documentation for the filter class.

Do HEPA filters make an HVAC system suitable for a cleanroom?

No. Cleanroom suitability depends on the full system, including airflow pattern, air change rate, pressure cascade, and installation integrity. The filter is one component of the entire system. Room classification requires system-level verification [3][4].

How often should HVAC HEPA filters be replaced?

Replacement must be based on differential pressure, airflow, and integrity test results, not on a fixed schedule. Deiiang catalogue data lists final resistance at 400–600 Pa for its combined H13/H14 filters. The site limit may be lower.

References

• [1] EN 1822-1:2019 — High efficiency air filters (EPA, HEPA and ULPA) — Part 1: Classification, performance testing, and marking. European Committee for Standardization.
• [2] ISO 29463-1 — High efficiency filters and filter media for removing particles from air — Part 1: Classification and performance testing. International Organization for Standardization.
• [3] iso 14644-1:2015 — Cleanrooms and associated controlled environments — Part 1: Classification of air cleanliness by particle concentration. International Organization for Standardization.
• [4] iso 14644-3:2019 — Cleanrooms and associated controlled environments — Part 3: Test methods. International Organization for Standardization.
• [5] IEST-RP-CC001 — HEPA and ULPA Filters. Institute of Environmental Sciences and Technology.
• [6] US MIL-STD-282 — Method of Test for Filter Units, Protective Clothing, Gas-Mask Components and Related Products. United States Department of Defense.
• [7] ASHRAE Standard 52.2 — Method of Testing General Ventilation Air-Cleaning Devices for Removal Efficiency by Particle Size. ASHRAE.
• [8] EN 779:2012 — Particulate air filters for general ventilation. European Committee for Standardization. Legacy classification.
• [9] Deiiang Combined High Efficiency Filter catalogue, DOP Integrated Filter catalogue, Super High Efficiency Baffle-Free Filter catalogue and F5–F9 Pre-filter catalogues. Product data supplied by Deiiang.
