Understanding ISO 8 Cleanrooms
Classification
ISO 8 cleanrooms are controlled environments meticulously designed to minimize airborne particles and, by extension, the risk of contamination. Adhering to the international ISO 14644-1 standard, an ISO 8 cleanroom is defined by its permitted maximum particle concentration: up to 3,520,000 particles per cubic meter for particles measuring 0.5 μm and larger.
These environments are indispensable across industries like Electronics, pharmaceuticals, and food processing, where strict cleanliness is vital for product quality and safety.

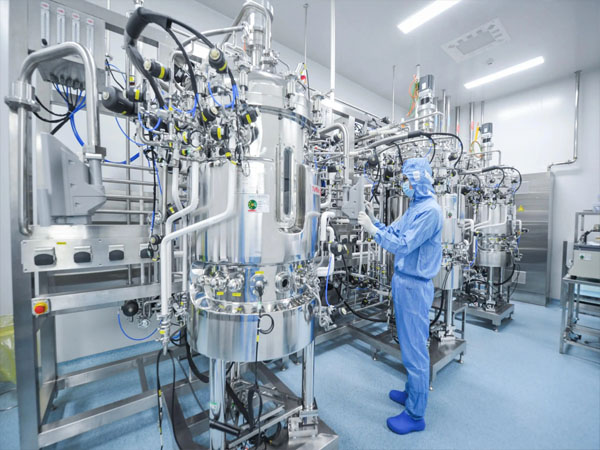

Visual representation of an ISO 8 cleanroom environment
| Cleanroom Class | Max Particles (0.5 μm)/m³ | Typical Applications |
|---|---|---|
| ISO 7 | 352,000 | Medical devices, precision electronics |
| ISO 8 | 3,520,000 | General electronics, pharmaceutical packaging |
| ISO 9 | 35,200,000 | Food processing, basic manufacturing |
ISO Standards
The ISO 14644 series is the cornerstone for cleanroom environments:
- iso 14644-1: Classifies air cleanliness by particle concentration
- iso 14644-2: Outlines testing and monitoring requirements
- Standards are regularly updated to reflect technological advancements
Upholding ISO 8 standards is critical for:
- Safeguarding product integrity and quality
- Ensuring regulatory compliance (e.g., FDA, GMP)
- Minimizing contamination risks in critical industries
ISO certification symbol representing international standards
Airflow Principle & ACPH
Airflow Dynamics
Effective airflow design is crucial for removing particles and preventing contamination. ISO 8 cleanrooms typically use a combination of:
- Laminar airflow: Unidirectional flow for critical zones
- Turbulent airflow: General air mixing for broader areas
Air Changes Per Hour (ACPH)
ISO 8 cleanrooms typically require 5-20 air changes per hour. The exact rate depends on:
- Room size and layout
- Equipment and personnel count
- Contamination risk level
ACPH = (Airflow Rate (m³/hour)) / (Room Volume (m³))
ACPH = (1000 m³/hour) / (100 m³) = 10 ACPH

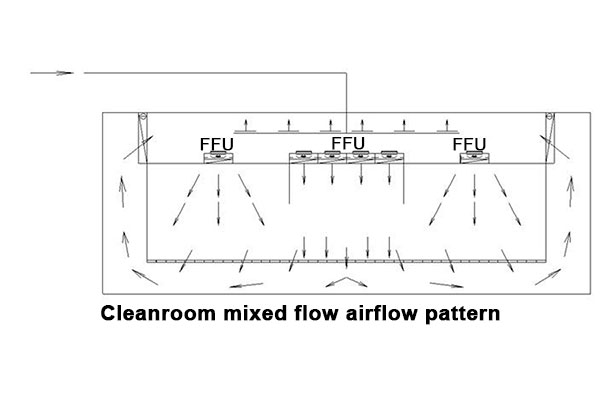

Schematic of airflow patterns in an ISO 8 cleanroom
Designing an ISO 8 Cleanroom
Key Design Considerations
| Design Aspect | Requirements & Considerations |
|---|---|
| Room Layout | Meticulously planned to minimize particle generation and facilitate cleaning. Should include logical workflow patterns to reduce cross-contamination risks and ensure easy access to all areas for maintenance. |
| Material Selection | Non-shedding, easy-to-clean, and chemically resistant materials. Surfaces should be smooth and seamless to prevent particle accumulation and allow effective decontamination. |
| HVAC System | High-efficiency systems for consistent airflow and particle removal. Must achieve 5-20 air changes per hour (ACPH) with HEPA filtration to maintain ISO 8 particle counts. |
| Maintenance Access | Design for easy maintenance and cleaning procedures. Includes removable panels, accessible ductwork, and clear pathways for equipment servicing without disrupting operations. |
Materials & Equipment
Materials should be:
- Non-shedding to minimize particle generation
- Easy to clean and sanitize
- Resistant to chemical interactions
Key equipment includes:
- HEPA filters for particle removal
- Air handling units for consistent airflow
- Environmental monitoring systems
- Cleanroom-specific tools and furniture
Testing and Certification
Key Testing Parameters
| Test Parameter | Purpose | Testing Method |
|---|---|---|
| Particle Count | Ensure particle concentration meets ISO 8 standards | Particle counters |
| Temperature & Humidity | Maintain optimal environmental conditions | Sensors and data loggers |
| Air Change Rate | Verify adequate air circulation | Flow meters and calculations |
| Differential Pressure | Prevent contamination from adjacent areas | Pressure sensors |
Certification Process
ISO 8 Cleanroom Certification involves:
- Comprehensive testing of all parameters
- Detailed documentation of test results
- Rigorous audits for compliance
- Adherence to GMP and FDA requirements (where applicable)
ISO 8 cleanrooms play a vital role in industries requiring controlled environments to prevent contamination, ensuring product quality, regulatory compliance, and operational efficiency. Future trends in cleanroom technology will likely focus on advanced HVAC systems, innovative materials, and enhanced monitoring technologies to further improve cleanliness and efficiency.
This comprehensive guide provides an overview of ISO 8 cleanroom classification, standards, Airflow Principles, design considerations, and certification processes.
