Semiconductor Cleanroom design
Key Points for Optimal Manufacturing Environments
The semiconductor industry relies heavily on cleanroom environments to ensure product integrity and quality. From wafer fabrication to integrated circuit assembly, cleanrooms play a pivotal role in mitigating contamination and complying with stringent industry standards.
Classification of Semiconductor cleanrooms
Wafer Fabrication and Photolithography: ISO 1-4
Wafer manufacturing and photolithography processes require the cleanest environments, typically classified as ISO 1-4. These classifications denote the acceptable level of particulate contamination, where ISO 1 is the cleanest.
Integrated Circuits: SMT Assembly ISO 7-8
For Surface Mount Technology (SMT) assembly, cleanrooms are often classified under ISO 7 or 8. These environments accommodate larger particulate sizes without compromising the functionality of integrated circuits.
Environmental Regulations
| Factor | Requirement |
|---|---|
| Temperature | ~21°C (69.8°F) |
| Humidity | 40-50% RH |
| Pressure | Positive air pressure |
| Static Electricity | Anti-static measures |
Maintaining stable environmental conditions is crucial in Semiconductor cleanrooms to prevent defects such as wafer warpage and static discharge issues.
Air Filtration Systems
ISO 1-4: ULPA Filters
Ultra-Low Penetration Air (ULPA) filters capable of removing airborne particles as small as 0.12 microns with 99.9995% efficiency.
ISO 5-9: HEPA Filters
High-Efficiency Particulate Air (HEPA) filters providing effective filtration down to 0.3 microns with an efficiency of 99.97%

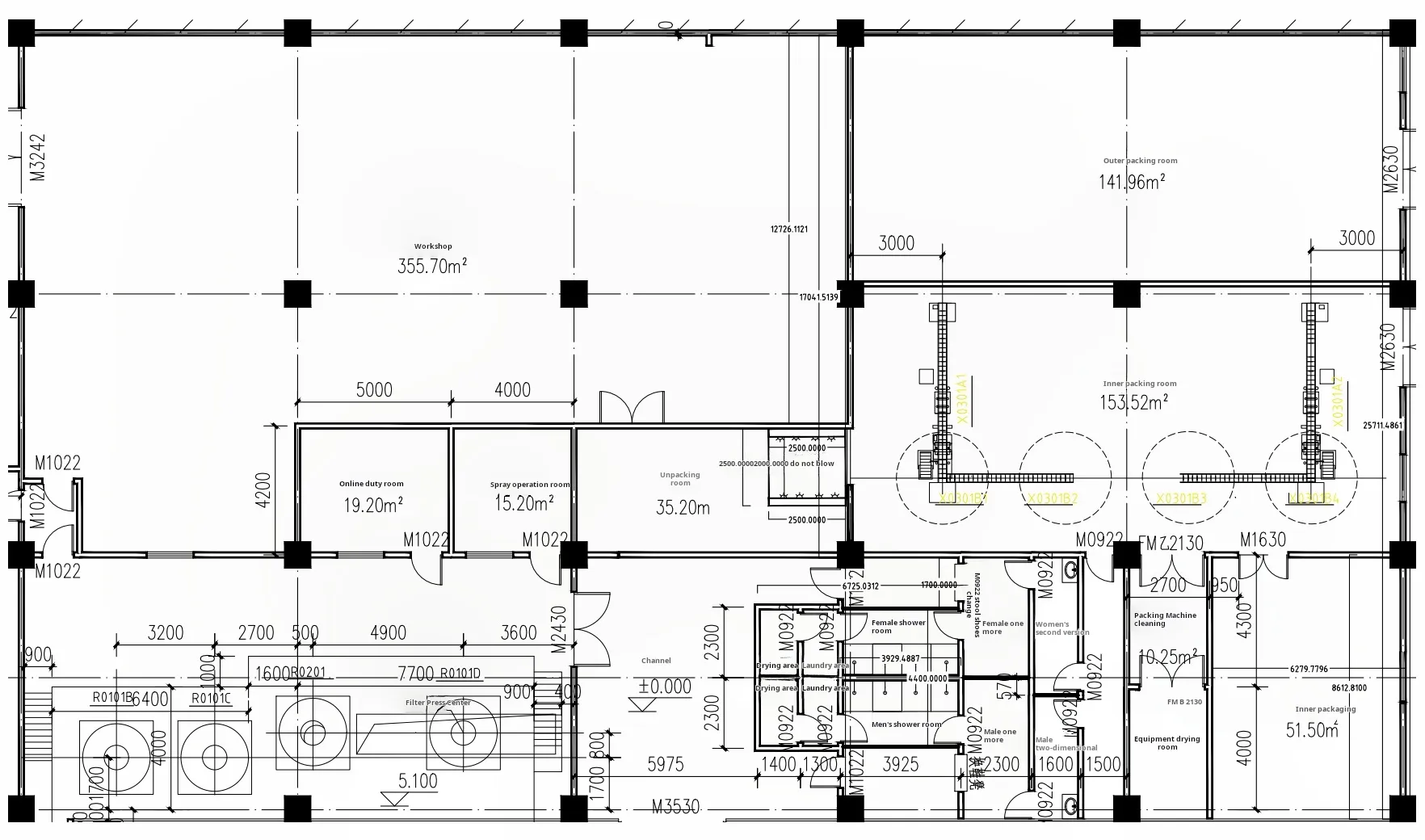

Specialized Equipment and Design
- Wall Panels: Seamless, non-porous panels that resist contamination
- flooring: Raised flooring systems and anti-static epoxy coatings

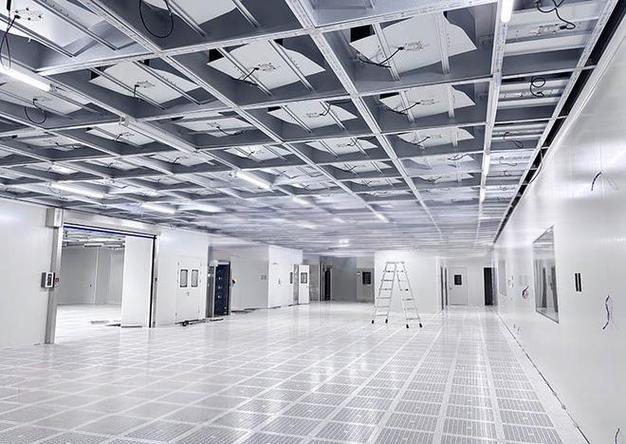

- Ceiling Systems: Fan Filter Units (FFUs) and high-efficiency air outlets
Air Showers: High-velocity air jets to remove surface contaminants
Common Questions
What ISO class is required for photolithography rooms?
Typically ISO 1-4, which ensures the highest level of cleanliness.
Why is humidity control critical in cleanrooms?
To prevent static discharge and moisture damage to sensitive components.
What kind of filters are used in ISO 1-4 classes?
ULPA filters, which capture particles as small as 0.12 microns with high efficiency.
References
- ISO 14644-1: Cleanroom standards
- Deiiang™, Innovations in Cleanroom Design
- Journal of Semiconductor Technology and Applications
- Environmental Control for Cleanrooms, Cleanroom Technology
