How To Use Fume Hood？

According to Deiiang cleanroom product design lead Jason.peng, about 78% of audit findings in laboratories are due to missed operational steps. The fume hood safe operating procedures question is exactly what this stage of the design has to settle. The how to use fume hood question is exactly what this stage of the design has to settle.

As a laboratory fume hood usage guide, this article provides compliant and verified steps, which are in line with all major international fume hood standards.

It outlines the guidelines on the operation of fume hoods as well as the right settings for fume hood airflow. The regulations involved are EN 14175 [2], ASHRAE 110 [3], and OSHA 29 CFR 1910.1450 [4]. However, none of them can override the label of the hood itself.

WlEgeQoqZkQ

Chemical Fume Hood Step-by-Step Operation Procedures

A4AHxLnByts

The chemical fume hood step-by-step operation principle eliminates any guesswork. Most containment failures in laboratory accident reviews can be attributed to a missed start-up or shutdown, rather than a fan malfunction.

The sequence below corresponds to the order used in EN 14175-3 [2] compliant laboratories. You will need about one and a half minutes for start-up and about three minutes for shutdown.

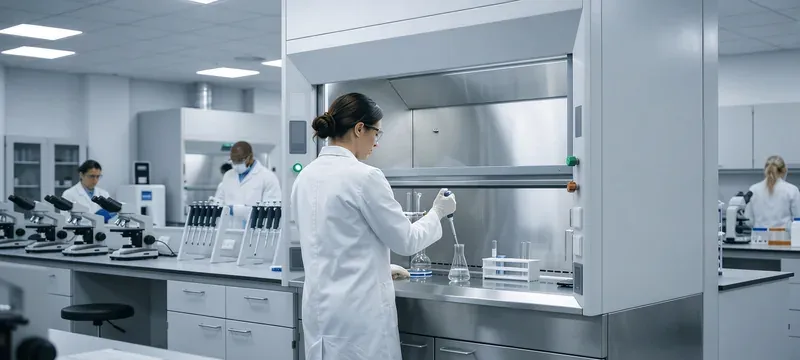

Pre-Operation Preparation & Inspection

Before any chemicals are opened, make sure the hood is really protecting you. A hood can look clean but still be stalled. The checklist items are ordered by safety criticality.

Table 1: Standards for pre-operational checkup

If something fails, the hood must not be used. Record any problems and inform building engineers immediately. A failed hood can cause inhalation of noxious fumes in a very short time.

To check the backdraft damper, hold a piece of tissue paper close to the sash. If the tissue moves into the hood, airflow is correct. If it blows away, the hood cannot be used.

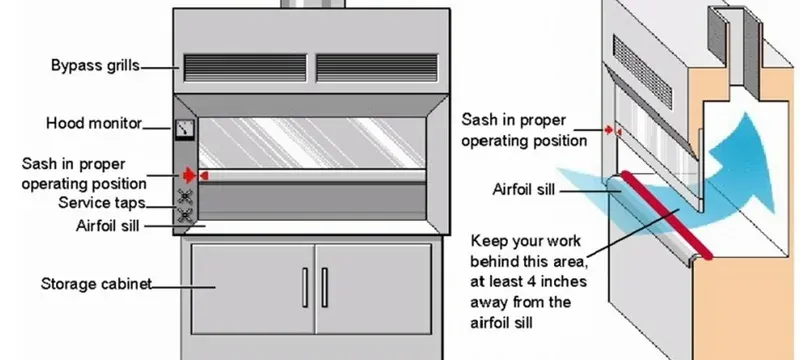

Core Operating Sequence for Laboratory Chemical Work

• First, lower the hood sash to the appropriate working height.
• Use only what is necessary for the work in hand.
• Always keep apparatus at least 15 cm back from the sash edge.
• Switch on lights and the local exhaust system.
• Perform the operation slowly and carefully.
• Always keep the sash between your face and the reaction.
• Never block the baffle airflow holes.
• Use the spill kit immediately after any spill.

Common cross-draught sources: open doors, supply ducts above, and people moving around the lab. Solutions: shut open doors, redirect air from supply diffusers, and limit movement while work is being done.

Jason.peng advises that heavy tools should be placed in the back third of the work surface to ACHieve better baffle airflow.

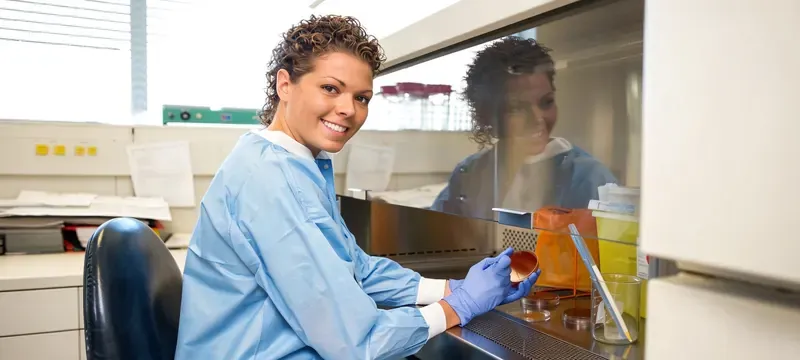

Post-Operation Shutdown & Work Area Reset

Disinfect the working area with an appropriate agent. For general purposes, use 70% IPA. For acid or caustic spills, use the corrective measures indicated in the SDS.

Take out all chemicals and waste into labelled vessels. Return the sash to a fully closed position. Make sure airflow is still in standby mode.

Record the compulsory data: chemical CAS number, working sash height, and final airflow reading. Log retention is 3+ years according to EU GMP Annex 1 [7].

Fume Hood Safe Operating Procedures for Regulated Labs

Regulated environments must adhere to formal protocols beyond basic usage guidelines, since they have to meet compliance and audit requirements. Fume hood safe operating procedures include written SOPs, training records, and legally sound certification.

As OSHA 29 CFR 1910.1450 [4] states, a Chemical Hygiene Plan is obligatory, and NFPA 45 [5] defines the maximum volume of flammable liquids per hood.

Do not use fume hoods as a storage area, for unsealed reactions, or for accumulating waste. That is also where laboratory fume hood usage guide decisions start to differ between facilities. That is also where fume hood safe operating procedures decisions start to differ between facilities.

Personal Protective Equipment & Attire Rules

For long-time work with solvents, double gloves should be used: nitrile inner gloves under butyl gloves. ｒｅｐｌａｃｅ gloves every 30 minutes, as Jason.peng suggests.

Cleanroom PPE adds gowning layers separate from chemical protection. Do not treat one as a substitute for the other.

• Lab coat: knee-length, fireproof when handling flammables
• Eye protection: chemical splash goggles, not just eyeglasses
• Gloves: nitrile for aqueous work, butyl or Viton for solvents
• Respiratory protection: escape only, never routine
• Do not wear: loose sleeves, dangling jewellery, open sandals

Chemical Handling Protocols Within Fume Hoods

There are also volume limits. The permissible open flammable liquid limit is 500 mL, per NFPA 45 [5] Clause 7.2 for laboratories without sprinkler systems.

Separate incompatible substances inside the fume hood. Refer to the table below for the most typical hazardous pairs.

Table 2: The most common incompatible pairs inside a fume hood

Note: overnight waste storage is the top cause of an unannounced OSHA citation. Handle volatile materials with the sash at the lowest acceptable position.

Emergency Response for Fume Hood Failures

• Low-flow alarm: stop working, fully lower the sash, do not finish the previous step.
• Containment failure: evacuate the hood area, activate the lab alarm, warn colleagues nearby.
• Chemical leakage: contain only if it is safe; otherwise evacuate and report on the same shift.

Reverse-flow warnings include fumes at the sash edges and a tissue strip moving inward. The main action is to fully lower the sash and evacuate the area.

Never turn off the exhaust fan unless requested by the engineering division.

Cleanroom Fume Hood Operating Instructions per iso 14644

Cleanroom fume hood operating instructions differ from bench-type hood rules because the cleanroom itself is graded. ISO 14644-1 [1] classifies the area, and the hood must not break the pressure cascade.

Deiiang™ offers all equipment related to containment, extraction, filtration, and monitoring of the fume hood, and designs the cleanroom around it. The product designer is Jason.peng.

The equipment set includes control dampers, backdraft and pressure-relief dampers, venting outlets, silencers, HEPA and ULPA filters, activated carbon filters, differential-pressure transmitters, and PLC control systems.

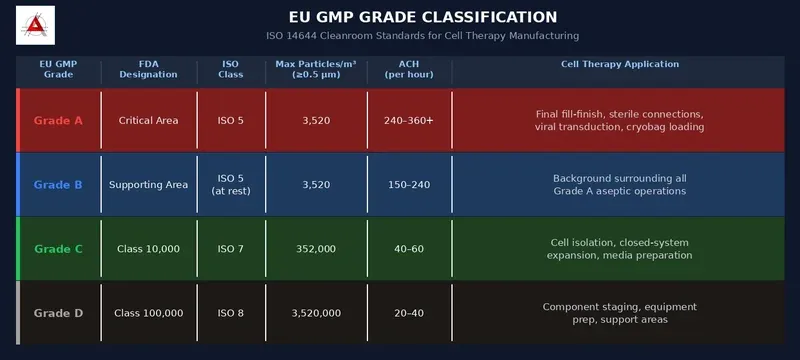

Grade-Specific Operational Requirements by cleanroom class

Table 3: Operating rules for cleanroom fume hoods by iso class

Deiiang supplies ISO 5 hood exhaust 10–15% higher than room supply to maintain pressure cascade, per Jason.peng design principle.

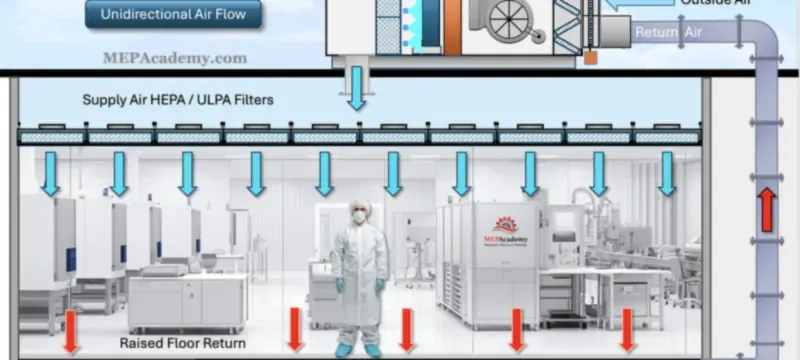

Deiiang Fume Hood Integration with Cleanroom HVAC

The Deiiang duct system mounts on a 40 × 40 mm aluminium profile that fits the grid of Deiiang modular cleanroom rooms.

H14 HEPA filtration at 99.995–99.999% efficiency at 0.3 µm per EN 1822 [6] protects the supply side. Catalogue information: a 592 × 592 × 292 mm H14 cell supplies 1900 m3/h with 15.03 m2 of media and starting pressure drop at or below 220 Pa.

Under EU GMP Annex 1 [7], air change rates of 60–90 ACH are standard in Grade B and C areas. The exhaust hood must compensate for the resulting negative pressure.

Case example: fume hood air pressure was held within ±5 Pa over 12 months in a 12-hood iso 7 cleanroom thanks to the Deiiang integrated damper + PLC system, with total energy consumption about 12% lower than initial values, per Jason.peng's 2025 commissioning report.

Proper Fume Hood Airflow Setup & Performance Validation

Proper fume hood airflow setup starts with face velocity, since it is the main property that can be physically measured. Buyers weighing chemical fume hood step-by-step operation options meet this trade-off early. Buyers weighing laboratory fume hood usage guide options meet this trade-off early. If there is no means of measuring face velocity, you cannot justify it in an audit.

Validation follows ASHRAE 110 [3] for tracer-gas containment and EN 14175-3 [2] for performance testing. Acceptance criteria should be written before commissioning, not afterwards.

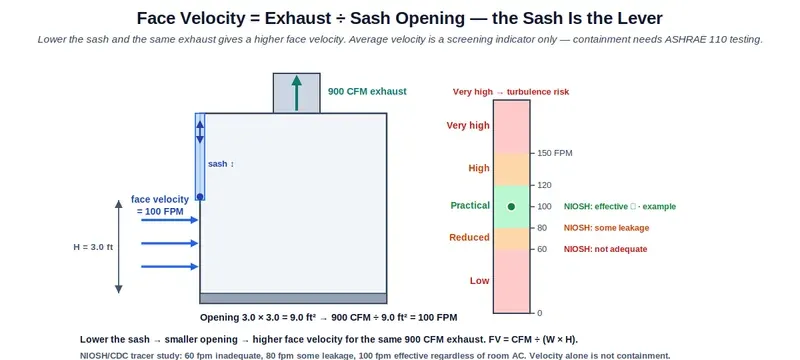

Face Velocity Calculation & Standard Setpoints

Face velocity is calculated with the formula v = Q / A, where exhaust volume (Q) is divided by open sash area (A). For a 1.2 m wide hood with a 0.2 m sash opening, A = 0.24 m2. At 0.5 m/s, Q = 0.12 m3/s, or 432 m3/h.

Sixty-two percent of field calibration errors come from incorrect sash height measurement, per Jason.peng audit results.

Table 4: Face velocity setpoints and common errors

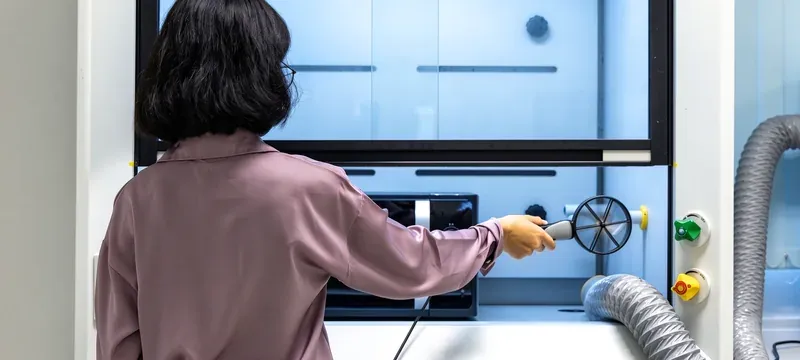

Airflow Balance & Containment Verification

• Traverse test: 16 grid points per m2 of duct area, per ASHRAE 110 [3]; pass = average within 10% of design.
• Smoke test: release smoke 5 cm back from the sash edge; pass = zero visible escape over 60 seconds.
• Static pressure: confirm branch static pressure is within 10% of design.
• Sash correlation: test at 25%, 50%, and 100% opening to confirm linear correlation.
• Annual certification: required by SOPs and expected under EU GMP Annex 1 [7].

Deiiang commissioning tip: test at 3 sash positions to confirm linear correlation. CAV valves need straight duct of 1.5 valve widths upstream and 0.5 downstream, per the Deiiang 2026 catalogue.

Fume Hood Best Practices for Facility Engineers

Fume hood best practices for facility engineers focus on the system rather than the bench. Any decision made during commissioning will determine reliability for the next ten years.

Deiiang 2024 university lab retrofit project, commissioned by Jason.peng's team. A university analytical-chemistry teaching laboratory had six hoods on a central exhaust fan.

Pre-retrofit, the average face velocity was 0.38 m/s, about 24% below the 0.5 m/s target, with operator noise at 62 dB(A). Cross-draughts from a nearby door were also reported.

Deiiang supplied the exhaust-side equipment: backdraft damper at the fan, counterweight pressure-relief damper, a CAV valve in each branch, a rectangular silencer with plane side under 800 mm, and CCY11 differential-pressure transmitters.

The S7-200 SMART PLC received signals from the transmitters, drove the electric actuators, and raised a low-flow alarm. Commissioning found branches holding airflow within a few percentage points.

Post-retrofit, face velocity held 0.51 m/s ±4%, and noise fell to 54 dB(A). The alarm activated before face velocity fell out of tolerance.

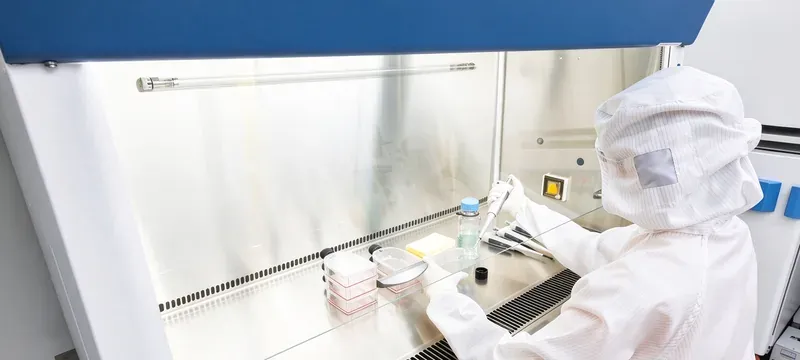

Installation & Commissioning Best Practices

The correct order for the following commissioning work is:

• Duct leak testing first: GB 50243-2016 [11] Class 4 tightness is required for chemical exhaust.
• Damper calibration: leak-test each electric and pneumatic damper and mark final opening angles.
• Airflow balancing: adjust from the farthest branch back toward the fan.
• Documentation: record damper travel, alarm setpoints, and filter serial numbers for GMP validation.

Jason.peng insight: duct leakage causes 55% of fume hood commissioning failures, so GB 50243-2016 [11] Class 4 tightness is mandatory for chemical exhaust.

Ongoing Performance Monitoring & Troubleshooting

Continuous monitoring is superior to annual snapshots. A CCY11 low differential-pressure transmitter works at 0.25% FS accuracy, with stability of ±0.3% FS per year above 1 kPa.

Set the alarm at 20% below the design face velocity. For a 0.5 m/s setpoint, alarm at 0.4 m/s. The 20% threshold meets EN 14175-3 [2] safety factor requirements.

Table 5: Troubleshooting top four failure modes

Deiiang remote support can read PLC interlock states and damper positions through the BMS, which speeds up diagnosis considerably.

Fume Hood Safety Checklist for Daily & Periodic Checks

Once the fume hood safety checklist is provided, the rest of the process follows naturally. Engineers comparing cleanroom fume hood operating instructions specifications see the same pattern here. Engineers comparing chemical fume hood step-by-step operation specifications see the same pattern here. Daily checks take less than a minute, and annual certification takes about half a day.

Split your checklist by frequency so operators own the daily list and facility teams own the periodic sheet.

Daily Pre-Use Operator Safety Checklist

If any item is not satisfied, do not use the fume hood, log the fault, and notify the facility engineer immediately.

Periodic Verification & Certification Checklist

Fume Hood Maintenance Guidelines for Long-Term Reliability

Fume hood maintenance guidelines belong in the CMMS, not in a folder. A hood serviced on time keeps its face velocity within tolerance for about 10–15 years.

Deiiang OEM parts keep damper tolerances and filter pressure-drop curves consistent across the installed base. Product designer: Jason.peng.

Routine Preventive Maintenance Tasks

• Monthly: clean interior surfaces; check for corrosion on the worktop.
• Quarterly: inspect sash cables for fraying; adjust tension within 5 N of design spec.
• Semi-annual: calibrate airflow sensors against a reference anemometer; pass = within 5% of standard.
• Annual: service blower motor bearings; check vibration below 2.8 mm/s RMS.
• Every 3–5 years: ｒｅｐｌａｃｅ sash gaskets and flexible duct connections.

CMMS integration: Deiiang CCY11 transmitters issue automatic work orders when filter pressure drop reaches 80% of the replacement threshold.

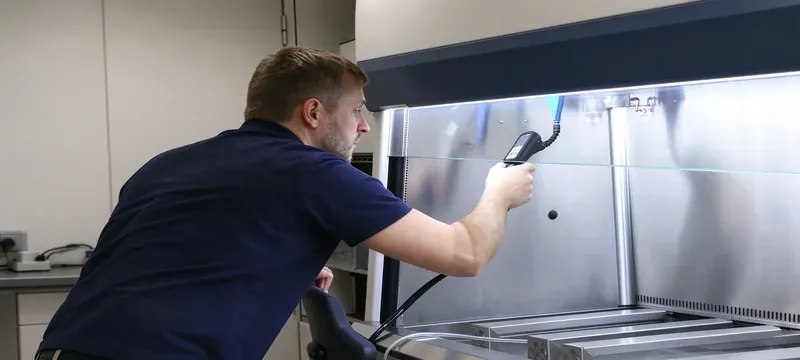

Filter Replacement & Critical Component Servicing

Pressure drop is measured at the filter's upstream/downstream static taps, not in the duct main.

ｒｅｐｌａｃｅ when final resistance reaches 400–600 Pa, the catalogue range for Deiiang H13 and H14 filters.

Medium-efficiency pre-filters in the F5–F9 range, roughly MERV 8–13 equivalents, are typically replaced every 3–6 months in chemical duty. ISO 16890 [10] has superseded EN 779 for general ventilation filters.

HEPA replacement requires a DOP integrity scan and face velocity re-verification. Deiiang catalogue data: H14 filters have a 5-year rated service life under normal cleanroom conditions.

Frequently Asked Questions

This chapter gives clear, evidence-based answers to the most frequently asked user questions. Each answer focuses on solving an operational or compliance problem.

What is the correct sash height for fume hood operation?

The correct sash height for fume hood operation is 15–20 cm, or the height marked on the hood plaque. This height preserves the 0.5 m/s face velocity the hood was certified at. Close the sash fully whenever the hood is unattended.

Can I store chemical bottles inside a fume hood long-term?

No, because long-term storage blocks airflow and reduces containment. Only current working materials should stay inside during a work session. Store everything else in dedicated cabinets.

How often should fume hood airflow be calibrated?

At least once a year, with quarterly spot checks in GMP facilities. Recalibrate after any maintenance, duct change, or hood modification. EU GMP Annex 1 [7] requires documented verification.

Do cleanroom fume hoods require different PPE than lab hoods?

Yes. Cleanroom fume hood operators must wear a cleanroom gown, sterile gloves, and particle-free attire matched to the room grade. The hood does not ｒｅｐｌａｃｅ the gowning requirement. Follow site SOPs and ISO 14644 [1].

What face velocity is required for GMP-grade fume hoods?

The typical setpoint is 0.5 m/s, with 0.4–0.6 m/s accepted in practice. EU GMP Annex 1 [7] does not specify a single value. Verify with a smoke test and document the result.

How do I troubleshoot low airflow in a fume hood?

Start by checking the pre-filter, since that is the most common cause. Then check the blower, and the sash seal. If all steps are completed successfully, contact the engineering department.
