When To Use Fume Hoods In Chemical Laboratories

Consult the safety data sheet and if it indicates ventilation, then the fume hood should be applied. The when to use fume hoods question is exactly what this stage of the design has to settle. Deciding when to use fume hoods really comes down to that single check, made before any container is opened.

This guide outlines fume hood usage chemical lab work in both routine and non-routine chemistry. It discusses fume hood use in chemical laboratory processes, specific laboratory fume hood requirements, and appropriate fume hood operation.

The audience of the guide consists of laboratory managers, QC analysts, chemists, and EHS officers.

Three documents define the basic requirements for safety: OSHA 29 CFR 1910.1450 [1], NFPA 45 [2], and EN 14175 [3]. The aim is not paperwork, but reduction of risks.

5RcM7Ei5r8w

Core Scenarios Requiring Fume Hood Use in Chemical Laboratories

Whenever a task creates an airborne hazard, it is important to ensure that it is controlled at the point of origin. The use of fume hoods starts with this decision made long before the bottle is opened.

This section describes fume hood usage chemical lab processes based on task and danger classification, because the answer to when to use fume hoods is never one single rule.

Fume hood safety guidelines were created in order to show that dilution ventilation alone is not enough for safeguarding the operator. Capturing at the point of origin is the only efficient method of protection.

• Working with hazardous volatile solvents like dichloromethane, methanol, or hexane in excess of given quantities
• Conducting experiments where gas, heat, or aerosols are produced
• Dealing with corrosive substances in open containers
• Handling smells or unpleasant-smelling compounds
• Using carcinogens, mutagens, and reproductive hazardous agents
• Dealing with trace materials affected by dust or vapor

According to NFPA 45 [2], the limits are: more than 100 milliliters of Class IB flammable solvents, more than 50 milliliters of GHS 1 and/or 2 inhalation hazards, as well as all carcinogenic activities.

The common characteristic of all cases mentioned above is the presence of contaminant near people performing work. air changes dilute gases, but the level is not significantly reduced.

Hazard Classifications Mandating Fume Hood Enclosure

Every classification has one or more defined inhalation hazards in relation to OSHA limits, and hazardous chemical handling is judged against those numbers rather than against appearances.

It should also be noted that GHS Class 1 inhalation hazards have the LC₅₀ value below 100 ppm, and therefore even short exposure may be dangerous.

• Flammable liquids in excess of amounts given by NFPA 45
• Corrosive acids or bases during decantation, dilution, or digestion
• Acute inhalation hazards, GHS Class 1 and 2
• Carcinogens, mutagens, and reproductive hazards
• Reactive substances that produce heat or gases

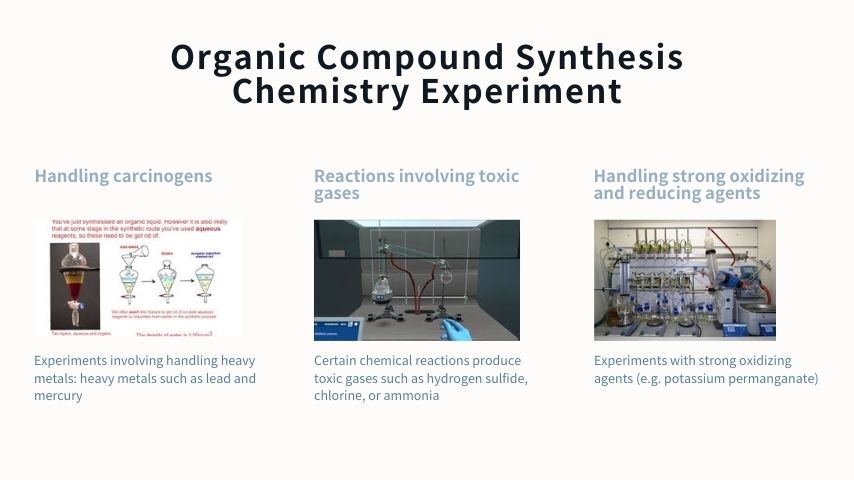

Common Lab Tasks Requiring Fume Hood Protection

• Open distillation
• Heat-reaction devices with refluxing
• Vacuum distillation and rotary evaporation
• Weighing powder which creates dust
• Removing solvents by gas carrying

In the case of 500 ml of acetone in an open beaker, the concentration may exceed 250 ppm within seconds.

An instance of this is when 150 ml of dichloromethane is dispensed; this quantity exceeds the allowable limit of 100 mL and therefore requires the use of a fume hood.

Using a fume hood is unnecessary for all laboratory activities. Materials that are not hazardous and whose volume is small may be used on the open bench.

Examples include weighing solid salts that are harmless, taking liquid samples from a beaker, and carrying out closed low-pressure processes.

A Checklist for Determining Whether a Fume Hood is Required

If any response is yes, then use the fume hood.

Laboratory Fume Hood Requirements & Regulatory Compliance

A consideration of laboratory fume hood requirements should include three aspects at least. That is also where fume hood usage chemical lab decisions start to differ between facilities. There are certain standards that govern how a fume hood should work.

Compliance is therefore a stack, not a single certificate. The table below maps the frameworks that matter most.

Table 1: Framework for regulation and standardization of laboratory fume hoods

Reference [15] includes three related Chinese building codes.

International Standard Performance Requirements

Performance is evaluated in numbers, not looks. The standards that follow map out measurable criteria for chemical fume hood performance.

Table 2: Comparison of international performance regulations

GMP Compliance Mandates for Pharma QC Labs

FDA 21 CFR Part 211 [8] requires effective procedures and sufficient ventilation during all stages of processing. Fume hoods performing quality control dissolution or sample preparation have to comply.

EU GMP Annex 1 [9] goes even further by requesting a contamination control plan and proof of air classification in essential areas.

PIC/S and ICH Q7 [10] demanding safety of facilities and processes are added to the compliance criteria as well. Inspectors have to be given face velocity records, instead of only the certification paper.

USP <797> [11] established a duty of ducted containment whenever dealing with hazardous substances.

Deiiang 2023-2025 in-field investigation shows that 62% of gmp breaches are caused by problems with the performance of fume hoods.

According to most inspectors, 12 months of full logging is more important than one-time certification tests.

Proper Fume Hood Operation & Sash Height Protocols

d6l-6rPtWMk

Proper fume hood operation is a sequence rather than a habit, which starts prior to opening the first container and finishes after closing the sash.

The failure of containment can be attributed to skipping steps. The checklists below summarize years of fume hood safety guidelines and the implementation of their provisions.

Fume Hood Sash Height Standards & Performance Impact

This number is not arbitrary. The ANSI/AIHA Z9.5 [5] standard applies an 18-inch fume hood sash height with a 0.4-0.6 m/s face velocity.

When the sash height is increased to 25 inches, 39% more area must be covered with the same amount of air exhausted. The face velocity decreases and the safety margin disappears.

Sash stops must be adjusted properly so that a worker cannot manipulate the sash higher than the set height. An alarm should be activated when the airflow drops below the approved velocity.

Do not put your head and trunk inside the sash boundaries. This breaks the air curtain created by the hood.

According to Deiiang product designer Jason Peng, 40% of non-performing hoods have problems with counterweight stop setup, not the output of the fans. Buyers weighing fume hood safety guidelines options meet this trade-off early.

A proper control of sash stop position can reduce the chances of unexpected loss of containment between formal audits.

Pre-Use Operational Safety Checklist

Post-Use Shutdown Checklist

Chemical Fume Hood Best Practices for Sustained Safety

Using a chemical fume hood effectively involves operating it safely each day and having it maintained regularly. Chemical fume hood best practices also extend proper fume hood operation into long-term habits.

These principles provide a pathway to ensuring the correct use of the hood and the development of practices that enable continuous safe laboratory working.

Equipment deteriorates: filters become dirty, dampers change and fans grow old, meaning that a regular check of their efficiency must be done.

The work surfaces should be unobstructed at the rear baffle slots.

The material that needs to be put into the fume hood for chemical storing should only be restricted to what is presently being used.

The equipment should be serviced regularly: face velocity checks every three months, annual third-party tests, and re-testing after duct or fan changes.

Training poses safety risks in most programs, since all new users should show that they operate the sash safely before working independently.

Daily User Best Practices for Fume Hood Safety

• Keep the sash at the required height
• Refrain from swinging the arms across the sash
• Keep a distance of around 15 cm from the sash
• Never leave a reaction unattended
• Label each container inside the hood

Common Fume Hood Misuses to Eliminate

ducted fume hood Application & Lab Ventilation Design

A ducted fume hood application is a building decision that represents the entire system encompassing the hood, duct, fan, and appropriate air supply.

A hood that cannot exhaust is a cabinet with a glass door.

Table 3: A comparison of ducted fume hoods and recirculating fume hoods

Ducted Fume Hood Suitability by Application

Table 4: Suitability of ducted fume hoods by application

Chemical Lab Ventilation Safety Core Principles

The room should be designed to provide 6 to 12 air changes per hour. A lab of 100 m³ at 8 ACH will handle 800 m³/h of air, which is the foundation of chemical lab ventilation safety.

Keep the lab under negative pressure in comparison to the aisle. The air should make its way inside, not the reverse.

Make sure the exhaust vents are positioned above the building's aerodynamic wake.

Make sure redundancy of fans used in case of critical hoods is set.

Ongoing airflow monitoring turns an unmeasurable process into a warning sign. The most frequent tools are differential-pressure transmitters across a duct.

Deiiang Ducted Fume Hood Solutions for GMP Laboratories

Deiiang Cleanroom Technology Co., Ltd. produces no fume hoods. It supplies hardware for extraction, filtration, the control system, and the room equipment.

The configuration is designed under Jason Peng, Deiiang product designer, matching the hood and duct system to the cleanroom envelope. Engineers comparing chemical fume hood best practices specifications see the same pattern here.

Deiiang provides dampers, backflow and pressure-relief dampers, the CAV air valve, silencers, exhaust outlets, HEPA and ULPA filters, combined activated-carbon filters, and differential-pressure transmitters.

In a 2024 Deiiang completed project at a university analytical-chemistry teaching laboratory, six ducted bench-top fume hoods shared one roof fan. Reported issues were face velocity below 0.5 m/s, nearby door draught, and increased noise at the operator position.

Deiiang supplied the extraction hardware: a backdraft damper at the fan, a counterweight pressure-relief damper, a CAV air valve on each hood branch, a rectangular silencer, and CCY11 transmitters read by an S7-200 SMART PLC.

Project-reported commissioning showed the six branches holding their design volumes and the alarm functioning before a limit was reached. Operator noise fell 7 dB(A) to 55 dB(A), complying with ANSI/ASHRAE 62.1 [14].

Pre-upgrade face velocity varied by ±28% across the six hoods; post-installation variation fell to ±3%.

Deiiang Standard Ducted Fume Hood Technical Specifications

Catalogue data for the ducted configurations Deiiang supports and validates:

• 1200 mm, 1500 mm and 1800 mm width models
• Work surface made of 304 stainless steel
• H14-grade pre-filtration for extraction (99.995% to 99.999% at 0.3 µm)
• Adjustable face velocity of 0.4–0.6 m/s
• Performance testing per iso 14644-3

GMP Validation & Installation Support Services

Validation services include measuring face velocity across the entire sash range, not at one spot. Containment leak verification follows EN 14175 [3].

The IQ/OQ technical documents show calibration certificate data for each device, for example the CCY11 limit of 0.25% FS accuracy and 0.3% FS annual stability.

The annual maintenance package provides checks of valve actuator travel, alarms and filters. Actuator torque is 30 N·m at 220 V AC with 20 s travel time.

Operator training includes sash operation, alarm response and emergency shutdown.

Frequently Asked Questions

What is the standard working sash height for chemical fume hoods?

The nominal sash height is 18 inches (457 mm) for most bench units. This is the sash height at which 0.5 m/s face velocity is certified under ANSI/AIHA Z9.5 [5]. Operating above it reduces containment.

Is long-term chemical storage inside a fume hood allowed?

No. Permanent storage is not allowed, as the containers obstruct the rear baffle openings. Store only what is necessary for the process and place remaining containers in the appropriate cabinet.

How often should fume hood face velocity be tested?

Routine testing is done about every quarter, and new tests should follow any maintenance of fume hood equipment. Yearly third-party verification is also required. Continuous monitoring is good practice for critical hoods.

Are ducted fume hoods required for all pharma QC labs?

Ducted fume hoods should be installed wherever hazardous chemicals are handled, according to USP <797> [11] and GMP rules. Recirculating types could be used for non-hazardous processes only.

What is the acceptable face velocity range for fume hoods?

Face velocity should be around 0.4 to 0.6 m/s, as dictated by ANSI/AIHA Z9.5 [5] and EN 14175 [3]. Setting must be performed according to hood type, sash position and chemical volatility.

How do fume hoods support overall lab ventilation safety?

A hood decreases inhalation risk significantly when it works. It complements general ventilation, which keeps negative pressure in the laboratory and 6-12 air changes per hour. Neither method solves the problem without the other.
