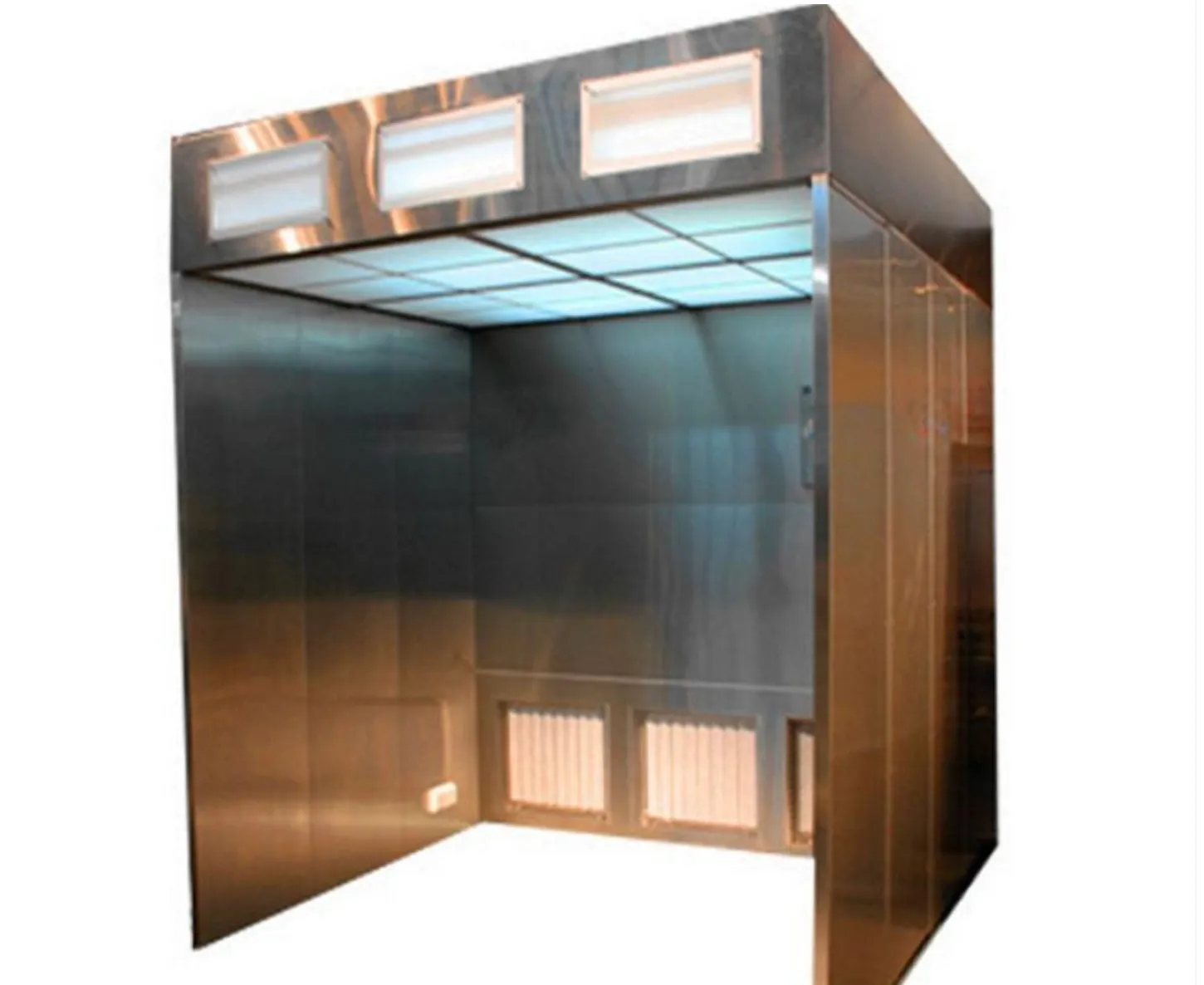

Chemical raw material weighing room

Your Reliable Manufacturer of Chemical raw material weighing room

Tenexu Negative Pressure Weighing Room Configuration Description:　　

• Filter: two-stage filtration with primary filter and high-efficiency filter, and the high-efficiency filter meets the test requirements of DOP or PAO.　　

• Differential pressure gauge: 2pcs.　　

• Polymer homogeneous flow membrane: can significantly improve the degree of uniformity of the outgoing air.　　

• Frequency control: conventional with ordinary control, optional liquid crystal display and operation, with wind speed display, etc. and its setting alarm function.　　

• Lighting / sterilization: weighing room according to the ground one meter illumination is greater than 300Lux, sterilization can choose germicidal lamp or ozone generator.　　

• Weighing table: place weighing utensils (optional).　　

• Socket: equipped with waterproof and dustproof industrial sockets, the number of configurations according to customer demand.　

Negative Pressure Weighing Room Structure Diagram and Description:　　

• the overall box is made of SUS304 stainless steel by bending, welding, assembling and molding, high flatness, easy to clean. The electrical cabinet can be selected as built-in and external.　　

• the air outlet surface is a polymer flow membrane, the wind speed uniformity can be controlled at 5%-10%, the primary filter, intermediate filter, high-efficiency filter can be disassembled and replaced from the front or above.　　

Negative Pressure Weighing Room Repair and Maintenance

• Maintenance personnel must perform maintenance and upkeep as specified.　　

• Maintenance personnel must be professionals, or have undergone professional training.　　

• Before carrying out maintenance, the power supply of the inverter must be cut off for 10 minutes before carrying out maintenance work.　　

• Components on the PCB board must not be touched directly, otherwise the inverter will be easily damaged.　　

• After the maintenance is completed, it must be confirmed that all screws have been tightened.　　

Negative Pressure Weighing Room Options.

• Wind Speed Sensor

• Differential Pressure Sensor

• Inverter

• Touch screen

• PLC control

• Polymer homogenizing membrane

Note: Negative pressure weighing room can be made according to customer requirements for non-standard products.
