8 Key Points in Cleanroom Design: What You Need to Know

Studies show that a facility built around proven key points in cleanroom design delivers 15–20% lower annual operational costs compared to conventional layouts, while maintaining full compliance with global regulatory standards. For engineering and operations teams, balancing strict compliance requirements with long-term cost efficiency is the central challenge of any cleanroom project.

This guide outlines the most important factors in cleanroom design, drawing on decades of Deiiang™ field experience. It serves as a practical cleanroom design checklist that covers everything from initial zoning to long-term maintainability, helping stakeholders make informed decisions during every stage of the cleanroom design process.

Designer's Insight: "The most costly oversight in cleanroom design is ignoring regulatory update headroom — 30% of facilities built before 2020 now require expensive retrofits to meet the latest EU GMP Annex 1 standards." — Jason Peng, Lead Product Designer, Deiiang™ (80+ projects delivered)

00GAY0XCtW8

Cleanroom Design Process: A Step-by-Step Overview

• Process requirement definition & ISO classification alignment — Match cleanliness class to actual product/process risk.
• Zoning & personnel/material flow path planning — Physically separate flows, establish airlocks and pass-throughs.
• HVAC & filtration system sizing and airflow simulation — Calculate ACH, pressure cascades, and filter coverage.
• Construction material selection and detail design — Specify non-porous, cleanable, chemical-resistant surfaces.
• Commissioning, third-party validation and certification — Verify performance to iso 14644-3 and obtain certification.

8 Key Points: The Expert Checklist

Mastering the essential cleanroom design considerations is critical to delivering a facility that meets performance targets without unnecessary capital or operational spending. These eight cleanroom design best practices represent the core framework used by Deiiang™ engineering teams across pharmaceutical, electronics, and life science projects.

Whether you are evaluating things to consider when designing a cleanroom for a new facility or planning a retrofit, this cleanroom planning checklist will help you align your project with ISO standards, regulatory expectations, and real-world operational needs.

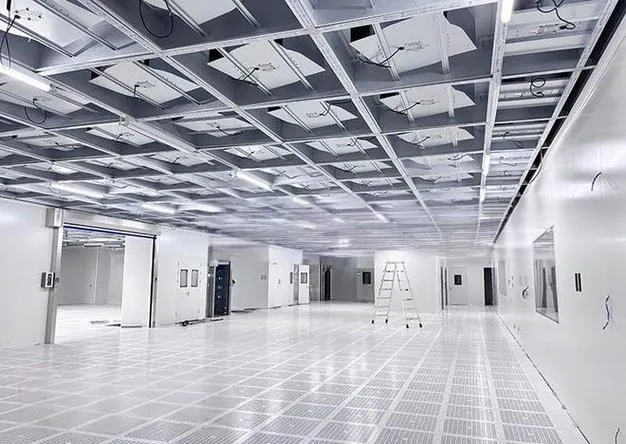

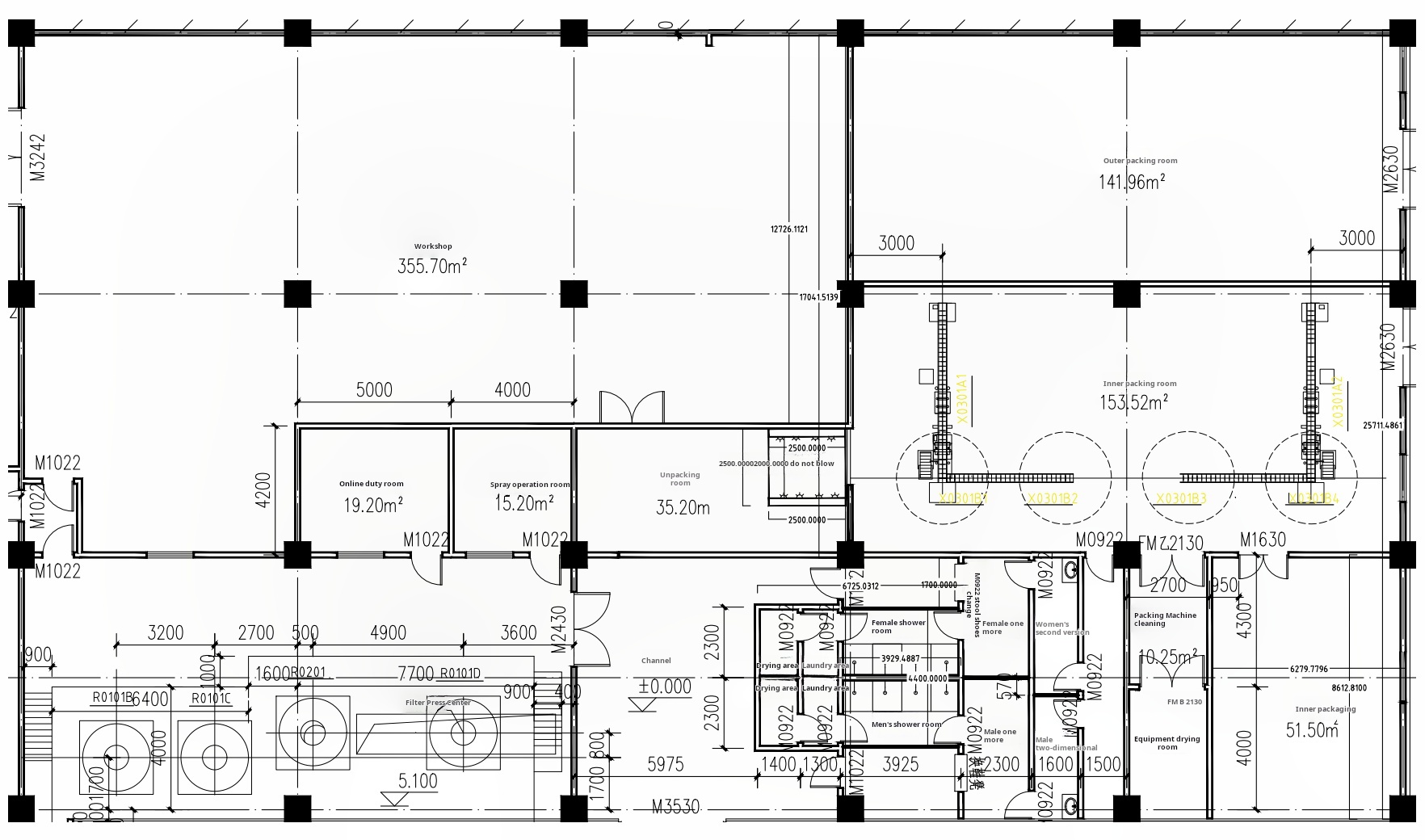

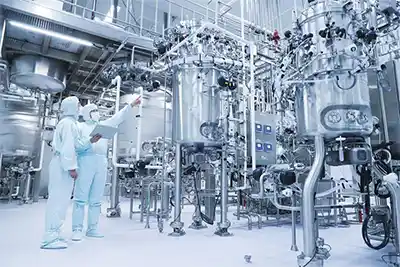

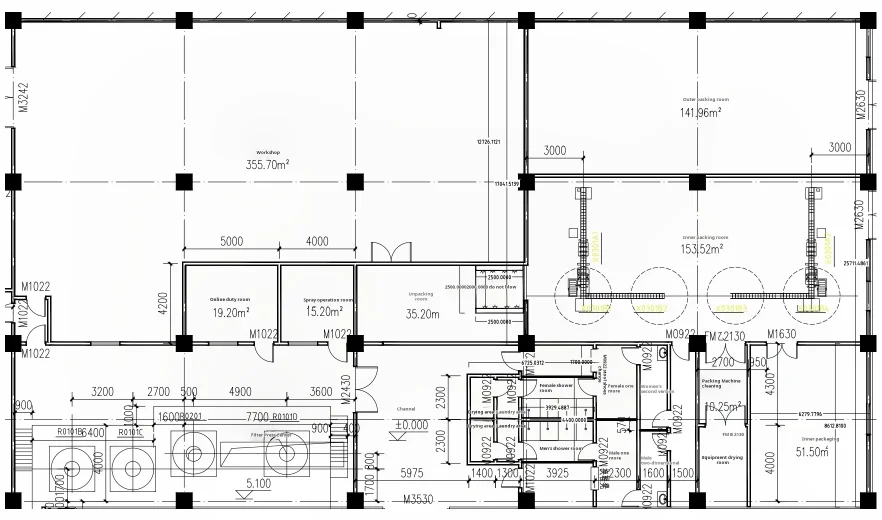

Process-Driven Zoning

Based on extensive Deiiang™ project experience, physical separation of personnel flow and material flow is the foundational logic for preventing cross-contamination. A process-driven zoning strategy maps every step of production, from gowning airlocks to core clean zones, to minimize unnecessary movement and reduce particle generation from human activity.

Personnel routes and material transfer paths are designed to never cross in higher-classification areas, with dedicated pass-through chambers for supplies and separate gowning sequences for staff. This zoning approach is the first item on any rigorous cleanroom design checklist and sets the foundation for all other performance systems.

Inadequate flow separation is a leading cause of FDA GMP observation citations, with shared airlocks increasing cross-contamination risk by up to 40% in ISO 7 zones.

Deiiang Field Data: From 15+ years of on-site engineering experience, shared personnel and material airlocks increase cross-contamination risk by 40% in ISO 7 production zones — a common cost-cutting mistake that leads to validation failure.

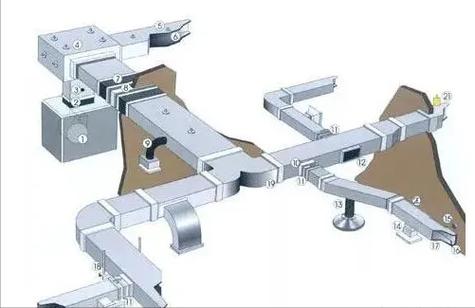

HVAC & Energy Efficiency

HVAC systems account for up to 40% of a cleanroom’s total energy consumption, making airflow optimization one of the most impactful cleanroom design tips for long-term cost reduction. Proper air change rates (ACH) and airflow patterns directly impact both cleanliness levels and monthly utility expenses.

mJ1UTewzmj4

• Calculate ACH based on ISO classification: ISO 5 zones typically require 300–500 ACH, while ISO 7 ranges from 60–90 ACH and iso 8 from 20–40 ACH.
• Use low-velocity ceiling diffusers to maintain uniform airflow in critical zones and reduce turbulence that can resuspend particles.
• Implement demand-controlled ventilation to adjust airflow based on real-time particle counts, reducing baseline energy use by up to 18%.

Oversizing AHUs for peak occupancy only creates 25–30% redundant energy consumption during standard operation — a frequent pitfall in retrofit projects.

Pressure Cascade Management

Maintaining a controlled pressure gradient between clean zones is essential for preventing unfiltered air from entering higher-classification areas. This one-way airflow principle is a non-negotiable element of cleanroom design best practices and a core compliance requirement for regulated industries.

Proper pressure cascade design ensures that any air leakage through door gaps or seal imperfections always flows from cleaner to less clean areas, preventing contaminant ingress even during peak personnel traffic.

ISO Classification Alignment

One of the most costly mistakes in the cleanroom design process is over-specifying cleanliness levels. Pursuing ISO 5 for all spaces instead of matching classification to actual process needs can increase capital costs by 35% and inflate long-term energy bills dramatically.

The table below compares relative costs and typical industries across common ISO classifications, based on Deiiang™ project data for 1,000 m² facilities:

iso 14644-1 Maximum Allowable Particle Concentrations (particles/m³)

Construction Materials

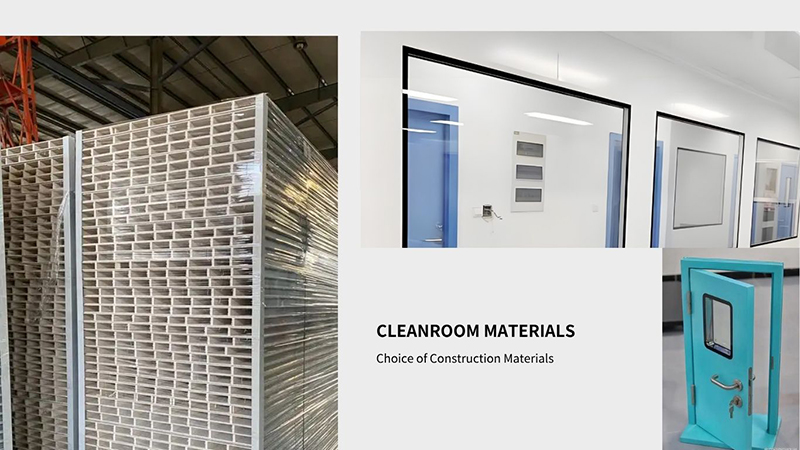

Material selection is one of the essential cleanroom design considerations that directly impacts durability, cleanability, and long-term contamination control. The right materials resist corrosion, minimize outgassing, and withstand repeated disinfection cycles without degradation.

• Wall and ceiling panels: Non-porous, smooth-faced panels with anti-static properties to reduce particle adhesion and support frequent wiping.
• Flooring: Seamless epoxy or PVC systems with coved corners to eliminate harborage points for microbes and simplify cleaning.
• Fixtures: Stainless steel (SUS 304/316) for work surfaces and pass boxes, resistant to VHP sterilization and chemical cleaners.

Using unsealed gypsum or porous ceiling tiles in clean zones can harbor mold and shed particles, leading to rapid microbial contamination and costly remediation.

HEPA/ULPA Filtration Strategy

Filter placement and return air design define the effectiveness of your air distribution system, making this one of the most technically important key points in cleanroom design. The layout directly determines particle removal efficiency and airflow uniformity across the workspace.

Top-down supply with side-wall low-level return creates a uniform piston effect that sweeps contaminants downward and out of the clean zone. Filter coverage is calculated using the formula:

Filter Coverage Ratio = (Total Filter Area / Ceiling Area) × 100%

For ISO 5 areas, ceiling coverage of 80–100% with ULPA filters is standard, while ISO 7 zones typically use 25–40% HEPA filter coverage to balance performance and cost.

Refer to IEST-RP-CC034 for HEPA/ULPA filter leak testing and installation requirements.

Smart Monitoring Integration

Real-time environmental monitoring is a core part of the modern cleanroom design process, supporting both audit compliance and proactive maintenance. For FDA- and EMA-regulated facilities, continuous data logging is no longer optional — it is a mandatory compliance requirement.

Integrated particle counters, differential pressure sensors, temperature, and humidity loggers provide continuous data streams that can trigger automated HVAC adjustments and alert staff to deviations before they impact product quality. Deiiang™ designs include centralized monitoring platforms that store records for up to 5 years, simplifying audit workflows and reducing documentation overhead.

Failure to maintain continuous pressure differential data logs is one of the top 10 FDA 483 observation categories for sterile manufacturers.

Maintenance & Expansion

A facility that cannot be serviced or upgraded without full shutdown creates significant long-term operational risk. Modular design with dedicated maintenance access is one of the most underrated cleanroom design best practices, with a major impact on total lifecycle cost.

• Design filter replacement access from the plenum side to avoid disrupting cleanroom operations and requiring re-certification.
• Reserve 10–15% of floor space for future process expansion and utility routing to support capacity growth.
• Use modular wall systems that can be reconfigured without major demolition, reducing renovation time by up to 60%.

Deiiang Field Note: Many contractors quote 3-year HEPA filter service life, but in high-particulate industrial zones with only G4 pre-filtration, actual lifespan drops to 18–24 months. Deiiang designs always include F8 intermediate pre-filters to extend main filter life by 60%.

Compliance Verification & Certification Requirements

After construction and commissioning, formal validation is required to prove that the cleanroom meets design specifications and regulatory expectations. Third-party certification according to ISO 14644-3 covers tests for airflow velocity, filter integrity, particle count, and pressure differentials. Re-certification is typically required every 6–12 months for GMP facilities, with more frequent monitoring for critical zones.

Ensure all test equipment is calibrated and documentation is traceable. For FDA-regulated spaces, maintain complete validation documentation to support inspections and avoid costly corrective actions.

Deiiang Case Studies

To demonstrate how these cleanroom design tips translate into real-world results, consider the following projects led by Deiiang™ engineering teams.

Common Myths in Cleanroom Design

When reviewing cleanroom planning checklists, many stakeholders fall prey to common misconceptions that drive unnecessary costs and create performance gaps. Below are three pervasive myths and the engineering reality behind each one, based on Deiiang™ field experience across hundreds of projects.

Frequently Asked Questions

Micro-Glossary

This quick reference covers key technical terms that appear throughout cleanroom design overview materials and regulatory specifications, helping teams align on terminology during project planning and execution.

• Cleanroom Classification: A grading system defined by ISO 14644 that specifies maximum allowable particle concentrations per cubic meter of air, across defined particle size ranges.
• Laminar Airflow: A uniform, unidirectional airflow state used in the highest classification zones, typically at velocities of 0.3–0.5 m/s to sweep particles away from critical process surfaces.
• Pressure Differential: The static pressure gradient between a cleanroom and adjacent spaces, engineered to prevent contaminant ingress through gaps, doors, and utility penetrations.
• BIM (Building Information Modeling): A digital 3D modeling process that identifies design conflicts before construction begins, reducing on-site rework and improving scheduling accuracy.

References

• iso 14644-1:2015 — Cleanrooms and associated controlled environments
• EU GMP Annex 1 — Manufacture of Sterile Medicinal Products
• FDA 21 CFR Part 211 — Current Good Manufacturing Practice
• iso 14644-3:2019 — Test methods
