I. Introduction
What is Cleanroom Personnel Flow Design?
Cleanroom personnel flow design refers to the systematic planning and implementation of pathways, procedures, and facilities that guide personnel movement through cleanroom environments. Effective cleanroom personnel flow design achieves four core objectives: contamination control, operational efficiency, personnel safety, and regulatory compliance. In pharmaceutical facilities designed by Deiiang™, proper flow design can reduce particulate contamination by up to 85% compared to poorly planned layouts.

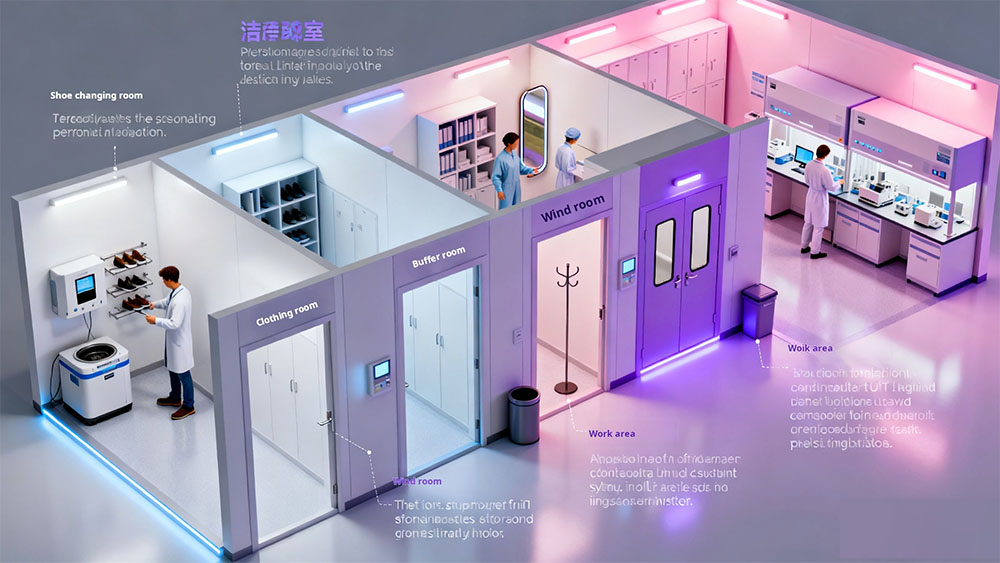

Simplified Personnel Flow Concept
Why is Cleanroom Personnel Flow Design Crucial?
Proper cleanroom personnel flow design is fundamental to maintaining controlled environments. According to industry studies, personnel account for 75-80% of cleanroom contamination, making optimized flow patterns essential for quality assurance. The strategic implementation of cleanroom personnel flow design directly impacts product yield, regulatory compliance, and operational costs.
Contamination Control
Reduces particulate and microbial introduction by 70-90% through proper zoning and airlock systems.
Product Quality Assurance
Critical for sensitive products in pharmaceuticals, Semiconductors, and biotechnology manufacturing.
Operational Efficiency
Optimizes movement paths, reducing transition time by 25-40% and minimizing cross-traffic.
Regulatory Compliance
Meets ISO 14644, GMP, and industry-specific standards for cleanroom operations.
II. Fundamental Principles of Cleanroom Personnel Flow Design
Successful cleanroom personnel flow design relies on established engineering principles that have been proven through decades of cleanroom operation. Deiiang™ incorporates these principles into every facility design, ensuring optimal performance and compliance. The fundamental principles governing effective cleanroom personnel flow design create a systematic approach to contamination control while maintaining operational efficiency.
A. Unidirectional Flow Principle
The unidirectional flow principle ensures personnel move from lower cleanliness areas to higher cleanliness areas without backtracking. This fundamental aspect of cleanroom personnel flow design prevents cross-contamination between zones of different classification levels.
Ideal Personnel Flow Path
B. Zoning and Segregation
Proper zoning according to ISO 14644 CleanRoom Classification standards is essential in effective cleanroom personnel flow design. Each zone maintains specific environmental conditions, with pressure differentials ensuring air flows from cleaner to less clean areas.
| Zone | ISO Class | Pressure Differential | Maximum Particles/m³ (≥0.5μm) |
|---|---|---|---|
| Non-Clean Area | N/A | 0 Pa Reference | 35,000,000 (Typical Office) |
| Changing Room | ISO 8 | +10 to +15 Pa | 3,520,000 |
| Main Cleanroom | ISO 7 | +15 to +20 Pa | 352,000 |
| Critical Area | ISO 5 | +20 to +25 Pa | 3,520 |
C. Separation of Personnel and Material Flow
Proper cleanroom personnel flow design requires complete separation of personnel and material pathways to prevent cross-contamination. Deiiang™ designs incorporate dedicated corridors, airlocks, and pass-through systems for materials.
❌ Incorrect Design
Mixed flow creates contamination risks and operational conflicts
✅ Correct Design
Separated flows prevent cross-contamination and improve efficiency
D. Pressure Differential Control
Pressure differentials are critical in cleanroom personnel flow design to maintain directional airflow from cleaner to less clean areas. Deiiang™ typically designs cascading pressure differentials of 10-15 Pa between adjacent zones.
"Proper pressure differential design can reduce cross-contamination between zones by up to 95%. In a Deiiang™ designed pharmaceutical facility, we maintain a minimum pressure differential of 15 Pa between ISO 5 and ISO 7 areas, with airflow velocity of 0.45 m/s ±20% across HEPA filters." - Jason.peng, Product Designer
The pressure differential (ΔP) between zones can be calculated using the formula:
ΔP = 0.5 × ρ × v² × C
Where: ρ = air density (kg/m³), v = air velocity (m/s), C = flow coefficient
III. Key Areas and Facilities in Cleanroom Personnel Flow Design
Specialized facilities form the backbone of effective cleanroom personnel flow design, creating controlled transition points that systematically reduce contamination. Each facility serves a specific purpose in the contamination control strategy, and their proper design is essential for successful cleanroom personnel flow design implementation.
A. Gowning Room/Shoe Change Area
The gowning room serves as the primary contamination control barrier in cleanroom personnel flow design. Deiiang™ designs typically feature three-stage gowning areas with progressively cleaner environments.
Stage 1: Pre-Gowning
- Remove street shoes and personal items
- Wash and disinfect hands
- Don shoe covers and hair nets
Stage 2: Main Gowning
- Don cleanroom garments (coveralls, hoods)
- Wear appropriate gloves
- Use sticky mats for shoe cleaning
Stage 3: Final Preparation
- Final garment adjustment
- Safety glasses/goggles if required
- Verify proper gowning in mirror
Typical Gowning Room Layout
B. Airlock/Air Shower
Airlocks and air showers serve as critical contamination control points in cleanroom personnel flow design, creating physical and aerodynamic barriers between cleanroom zones.
Air Shower Design Parameters
0.45-0.55 m/s
Air Velocity
15-30 sec
Cycle Duration
20-30
Nozzles (Typical)
>15 Pa
Pressure Differential
Air Shower Design & Operation Checklist
- Interlocking door systems prevent both doors opening simultaneously
- HEPA-filtered air supply with ≥99.97% efficiency at 0.3μm
- Stainless steel construction for easy cleaning
- Automatic cycle with audible/visual indicators
- Emergency stop button and manual override
- Regular performance verification (every 6 months)
- Proper nozzle positioning for full-body coverage
- Minimum 15 air changes per minute
C. Pass Box/Pass-through Chamber
While primarily for material transfer, pass-through chambers complement cleanroom personnel flow design by providing dedicated pathways for materials, reducing the need for personnel to transport items between zones.
Static Pass Box
- Simple mechanical interlock
- Cost-effective solution
- Manual transfer between sides
- Basic UV sterilization option
Dynamic Pass Box
- Continuous HEPA-filtered airflow
- Automated transfer systems
- Advanced interlock controls
- Integrated particle monitoring
D. Emergency Exits
Emergency exit design must balance safety requirements with contamination control in cleanroom personnel flow design. Deiiang™ incorporates panic hardware, emergency lighting, and air curtain systems to maintain integrity during evacuations.
Critical Emergency Exit Requirements:
- Unlocked operation from inside during emergencies
- Clear signage and emergency lighting
- Minimum width of 1.2 meters for wheelchair access
- Air curtain or vestibule to minimize contamination during use
- Alarm activation when opened during normal operations
IV. Detailed CleanRoom Personnel Entry/Exit Procedures
Standardized procedures are the operational implementation of cleanroom personnel flow design, ensuring consistent contamination control practices. Well-documented procedures with proper training reduce human error in cleanroom personnel flow design execution by up to 65% according to Deiiang™ operational data.
A. Standard Entry Procedure
Personnel Entry Flowchart
Entry Procedure Details & Requirements
Hand Washing Protocol
- Minimum 30-second wash with antimicrobial soap
- Use warm water (35-45°C)
- Thorough cleaning between fingers and under nails
- Use disposable towels for drying
Gowning Requirements
- Garments must be clean and intact
- No skin or personal clothing exposure
- Hair completely covered
- No jewelry or cosmetics permitted
B. Standard Exit Procedure
Personnel Exit Flowchart
Critical Exit Procedure Notes
- Garments must be removed in reverse order of donning
- Disposable items should be placed in designated contamination bins
- Reusable garments go to specified collection points for laundering
- Hand washing after ungowning is mandatory
- Exit pathways must be separate from entry pathways where possible
C. Handling Special Situations
Equipment Failure
- Immediate notification to facility management
- Alternative entry/exit routes activation
- Enhanced monitoring of affected areas
- Temporary procedural adjustments
- Documentation of incident and response
Visitor Management
- Advanced scheduling and approval required
- Comprehensive pre-entry briefing
- Escorted access at all times
- Special visitor gowning protocols
- Limited access areas defined in advance
Emergency Response:
During emergency evacuations, contamination control protocols may be overridden for life safety. Emergency exits should be used, and re-entry procedures must include enhanced monitoring and cleaning protocols.
V. Regulatory and Standard Requirements
Compliance with international standards and regulations is non-negotiable in cleanroom personnel flow design. These standards provide the framework for effective contamination control and form the basis for auditing and certification of cleanroom personnel flow design implementations across industries.
A. ISO 14644 Series Standards
The ISO 14644 standards provide the international framework for CleanRoom Classification and monitoring, directly influencing cleanroom personnel flow design requirements and validation protocols.
| ISO Class | Garment Requirements | Gowning Level | Airlock Requirements | Personnel Training |
|---|---|---|---|---|
| ISO 8 | Basic coveralls, hair cover, shoe covers | Level 1 | Single airlock optional | Basic CleanRoom awareness |
| ISO 7 | Full cleanroom suit, gloves, boot covers | Level 2 | Single airlock required | Standard gowning procedures |
| ISO 6 | Two-piece suit, dedicated CleanRoom shoes | Level 3 | Double airlock recommended | Advanced contamination control |
| ISO 5 | Full cleanroom suit with hood, face mask, multiple gloves | Level 4 | Double airlock with air shower | Comprehensive aseptic techniques |
"ISO 14644-4 specifically addresses Cleanroom design and construction, requiring that 'personnel access routes shall be designed to minimize the introduction, generation, and retention of contaminants within the cleanroom.' This standard directly mandates proper cleanroom personnel flow design as a fundamental requirement." - Deiiang™ Compliance Team
B. GMP (Good Manufacturing Practice)
GMP regulations impose specific requirements on cleanroom personnel flow design for pharmaceutical, biotechnology, and medical device manufacturing facilities, with emphasis on product protection and cross-contamination prevention.
Core GMP Requirements for Personnel Flow
- Documented and validated personnel flow procedures
- Segregation of personnel working with different product types
- Clear identification of gowning levels for different zones
- Regular training and competency assessment
- Health and hygiene monitoring programs
- Access control to restricted areas
- Environmental monitoring during operations
- Change control procedures for flow modifications
EU GMP
Annex 1: Manufacturing of Sterile Medicinal Products
FDA
21 CFR Part 211 - Current Good Manufacturing Practice
PIC/S
PE 009-14 Guide to GMP for Medicinal Products
C. Other Industry-Specific Standards
Various industries impose additional requirements on cleanroom personnel flow design based on their specific contamination control needs and product sensitivity.
Semiconductor Industry
- SEMI S2 - Environmental, Health, and Safety Guideline
- SEMI S8 - Safety Guidelines for Ergonomics Engineering
- ITRS (International Technology Roadmap for Semiconductors)
- Class 1-1000 Cleanrooms with strict ESD controls
Healthcare & Biotechnology
- USP
- USP
- CDC Guidelines for Environmental Infection Control
- Biosafety Levels (BSL) 1-4 requirements
VI. Cleanroom Personnel Flow Design Optimization and Best Practices
Continuous improvement of cleanroom personnel flow design is essential for maintaining competitive advantage and regulatory compliance. Optimized cleanroom personnel flow design not only enhances contamination control but also improves operational efficiency and reduces costs.
A. Risk Assessment and FMEA
Systematic risk assessment identifies potential failure points in cleanroom personnel flow design before they impact operations. Failure Mode and Effects Analysis (FMEA) provides a structured approach to evaluating and mitigating risks.
| Process Step | Potential Failure Mode | Effects | Severity | Occurrence | Detection | RPN | Recommended Action |
|---|---|---|---|---|---|---|---|
| Gowning | Improper glove technique | Skin contamination of surfaces | 6 | 4 | 5 | 120 | Enhanced training with visual aids |
| Air Shower Operation | Insufficient cycle time | Particle carryover to clean area | 7 | 3 | 6 | 126 | Automated timing with no override |
| Material Transfer | Use of personnel airlock for materials | Cross-contamination risk | 8 | 5 | 4 | 160 | Physical separation and signage |
Risk Priority Number (RPN) Calculation:
RPN = Severity × Occurrence × Detection. Actions are typically required when RPN exceeds 100, with higher RPNs receiving priority attention.
B. Training and Compliance
Effective training transforms theoretical cleanroom personnel flow design into practical, consistent execution. Deiiang™ recommends a multi-layered training approach with regular reinforcement.
Initial Training
- Comprehensive theory session (4 hours)
- Practical gowning demonstration
- Written examination (pass ≥80%)
- Practical competency assessment
Refresher Training
- Quarterly brief sessions (30 minutes)
- Procedure updates communication
- Incident review and lessons learned
- Annual re-certification requirement
Compliance Monitoring
- Regular internal audits
- Video surveillance of critical areas
- Environmental monitoring correlation
- Performance metrics tracking
Training Effectiveness Measurement:
Deiiang™ facilities that implement comprehensive training programs typically see a 45% reduction in gowning-related deviations and a 60% improvement in environmental monitoring results within the first 6 months.
C. Automation and Smart Applications
Technological advancements are transforming traditional cleanroom personnel flow design into intelligent, data-driven systems that enhance both compliance and efficiency.
Smart Access Control
- Biometric authentication for personnel
- Automated tracking of personnel movements
- Real-time occupancy monitoring
- Integration with training records
IoT Environmental Monitoring
- Wireless particle counters
- Real-time pressure differential alerts
- Temperature and humidity tracking
- Predictive maintenance scheduling
"Deiiang™ recently implemented an AI-powered personnel flow optimization system that reduced average gowning time by 22% while improving compliance by 35%. The system uses computer vision to provide real-time feedback on gowning techniques and identifies potential contamination risks before they enter the cleanroom." - Jason.peng, Product Designer
D. Common Mistakes and How to Avoid Them
Understanding common pitfalls in cleanroom personnel flow design helps prevent costly errors and ensures optimal facility performance from day one.
| Common Mistake | Impact | Solution | Implementation Cost |
|---|---|---|---|
| Insufficient gowning space | Garment contamination, congestion | Minimum 1.5m² per person, sequential layout | $$$ (Major renovation) |
| Poor airlock sizing | Ineffective contamination removal | Size for 2-3 persons, proper nozzle placement | $$ (Equipment replacement) |
| Mixed personnel/material flow | Cross-contamination, efficiency loss | Dedicated pathways, clear signage | $ (Procedural changes) |
| Inadequate training program | Procedure deviations, contamination events | Structured program with regular assessment | $ (Program development) |
Cost of Poor Design:
A pharmaceutical company recently discovered that inadequate personnel flow design was causing 12% product rejection rates. After implementing Deiiang™ recommended corrections at a cost of $150,000, rejection rates dropped to 2%, saving approximately $1.2 million annually in lost product.
VII. Case Study
Pharmaceutical Sterile Manufacturing Facility Upgrade
Initial Situation
- 35% deviation rate in gowning procedures
- Frequent pressure differential alarms
- Average entry time: 14.5 minutes
- Mixed personnel/material airlocks
- 8% product contamination rate
Deiiang™ Intervention
- Redesigned gowning room with 3-stage process
- Installed dedicated personnel airlocks with air showers
- Implemented smart access control system
- Developed comprehensive training program
- Established real-time monitoring dashboard
Results After 6 Months
- Gowning deviations reduced to 4%
- Entry time decreased to 8.2 minutes
- Contamination rate dropped to 1.2%
- 95% reduction in pressure alarms
- ROI: 8 months
"The Deiiang™ cleanroom personnel flow design transformation not only solved our immediate contamination issues but also improved operator morale and productivity. The systematic approach to analyzing and redesigning our personnel flow patterns delivered results that exceeded our expectations." - Facility Director, Global Pharmaceutical Company
VIII. Conclusion and Outlook
Effective cleanroom personnel flow design represents a critical investment in product quality, regulatory compliance, and operational efficiency. As this comprehensive guide has demonstrated, successful implementation requires integration of engineering principles, regulatory requirements, human factors, and continuous improvement methodologies.
The future of cleanroom personnel flow design is evolving toward greater intelligence and integration. Emerging trends include AI-powered contamination prediction, augmented reality training systems, biometric monitoring of personnel hygiene, and fully automated gowning assistance. Deiiang™ is at the forefront of these developments, incorporating smart technologies that make contamination control more effective and less dependent on human perfection.
"In the next five years, we expect to see cleanrooms that automatically adapt personnel flow patterns based on real-time contamination risk assessment. Machine learning algorithms will optimize traffic patterns, while wearable sensors will provide immediate feedback on aseptic techniques. The goal is not just to control contamination, but to prevent it proactively through intelligent cleanroom personnel flow design." - Jason.peng, Product Designer, Deiiang™
