Understanding Class 10,000 Cleanrooms: Design and Features

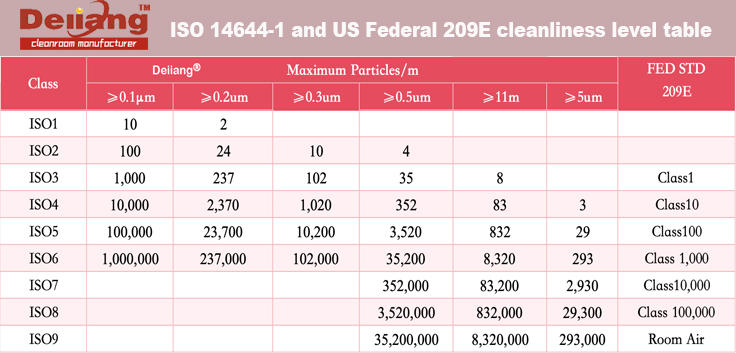

Class 10,000 cleanrooms, often referred to as ISO 7 Cleanrooms, are vital controlled environments designed for applications requiring moderate levels of contamination control. These cleanrooms ensure that particle levels do not exceed 10,000 particles per cubic foot of air, with particles being 0.5 microns or larger. This article delves into the core aspects of Class 10,000 cleanrooms, from particle control to the required infrastructure, and highlights their critical applications across industries.
Particle Count and Filtration
The main objective of a Class 10,000 cleanroom is to maintain strict control over particulate contamination. Such environments allow for a maximum concentration of 10,000 particles per cubic foot, compared to a normal urban environment that can have up to 35,000,000 particles in the same volume. To achieve this, Deiiang™, with expert inputs from product designer Deiiang Jason.peng, implements advanced filtration systems, primarily utilizing HEPA filters that capture 99.97% of airborne particles 0.3 microns or larger.
air changes and Airflow
Ensuring the cleanliness of the air within a Class 10,000 cleanroom requires significant air circulation. Typically, these cleanrooms undergo 30 to 60 air changes per hour. The airflow patterns are generally turbulent (non-laminar), which effectively dilutes and removes particulates from the airspace. Proper design of the airflow system is crucial, often involving a combination of air conditioning and HEPA fan filter units to manage temperature and particulate levels.
Applications of Class 10,000 Cleanrooms
Class 10,000 cleanrooms find their applications in a myriad of industries requiring a controlled environment to prevent product contamination:
- Pharmaceuticals: Used in processes where moderate contamination control is required.
- Food and Beverage: Essential in packaging environments to maintain hygiene standards.
- Electronics: Utilized in assembly areas for sensitive electronic components.
- Medical Devices: Employed in manufacturing environments to ensure product safety and efficacy.
Worker Garments and Equipment
Personnel in a Class 10,000 cleanroom must wear specific garments to reduce skin and hair contamination. Workers typically dress in non-particulating cleanroom bunny suits, complete with booties and hoods. This attire helps to maintain the integrity of the cleanroom environment by minimizing particle shed.
Typical Class 10,000 Cleanroom Utilizations
A variety of features and equipment are standardized for use in Class 10,000 cleanrooms to maintain optimal functioning and compliance:
| Equipment/Feature | Description |
|---|---|
| Gowning Rooms/Airlocks | Ensure a transition area for personnel to suit up before entering the cleanroom. |
| Product Pass Thrus | Allow materials to enter and exit the cleanroom without compromising air quality. |
| flooring | Often heat welded vinyl or epoxy, designed for easy cleaning and minimal particle emission. |
| Air Conditioning | For precise temperature control within the cleanroom. |
| HEPA Fan Filter Units | Integrated into the ceiling system to provide continuous air filtration. |
| Sealed CleanRoom Lighting | Prevents particles or contaminants from shedding into the cleanroom. |
| Magnahelic Gauges | Used for monitoring room air pressure to ensure the correct air balance is maintained. |
Some Cleanroom designs also incorporate air showers and sticky mats at entry and exit points to further prevent contamination. These additional features, particularly in settings requiring higher contamination prevention, enhance the effectiveness of the cleanroom.
Design Considerations
When designing a Class 10,000 cleanroom, it is essential to incorporate factors such as material selection, construction quality, and operational workflow. At Deiiang™, under the guidance of Deiiang Jason.peng, strategic planning ensures that each aspect of the cleanroom aligns with industry standards, offering robust solutions tailored to specific industry needs. Efficient cleanroom design not only minimizes risks associated with contamination but also enhances operational efficiency.
Conclusion: Elevating Standards with Class 10,000 Cleanrooms
Class 10,000 cleanrooms provide an essential solution for numerous industries requiring moderate contamination control. By leveraging precise design and technology, such as those provided by Deiiang™, these cleanrooms ensure both compliance with stringent regulatory standards and the integrity of products. Incorporating the right features and following best practices enables industries to efficiently manage particulate contamination.
Common Questions and Solutions
What activities are best suited for Class 10,000 cleanrooms?
Activities such as pharmaceutical filling, electronics assembly, and food packaging are well-suited for Class 10,000 cleanrooms due to their moderate cleanliness requirements.
How do air changes impact cleanroom efficacy?
Increased air changes enhance the dilution and removal of contaminants, thus maintaining cleanroom efficacy by ensuring particulate levels remain within specified limits.
