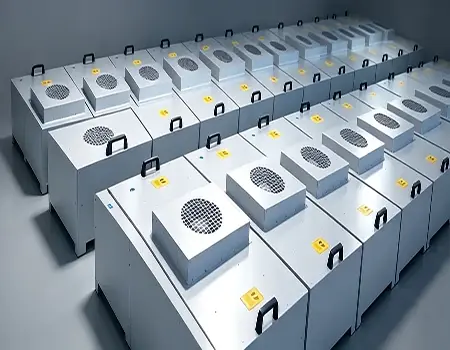

What is a Fan Filter Unit (FFU)?

A Fan Filter Unit (FFU) is a self-contained air filtration system designed to provide a controlled clean air environment, commonly used in cleanrooms, laboratories, and manufacturing facilities that require stringent air quality standards. FFUs consist of a fan, a high-efficiency particulate air (HEPA) or ultra-low penetration air (ULPA) filter, and a housing unit, allowing them to draw in ambient air, filter out airborne contaminants, and distribute clean, filtered air evenly across the space. By maintaining a constant airflow and reducing particle concentration, FFUs help ensure compliance with industry regulations and protect sensitive processes and products from contamination.

How does an FFU work?

A Fan Filter Unit (FFU) operates by drawing in unfiltered air, passing it through a high-efficiency filter, and then distributing the clean, filtered air back into the environment. The main components of an FFU work together seamlessly to ensure optimal performance in maintaining clean air standards. Here’s a breakdown of how an FFU functions:

How an FFU Works:

Air Intake: The FFU draws in ambient air from the surrounding environment.

Filtration: The air passes through a HEPA or ULPA filter, which captures 99.97% (or higher) of particles as small as 0.3 microns.

Fan Operation: An integrated fan creates a controlled airflow, ensuring consistent air movement and pressure.

Clean Air Distribution: The filtered air is then distributed evenly across the cleanroom or controlled space, maintaining a uniform environment.

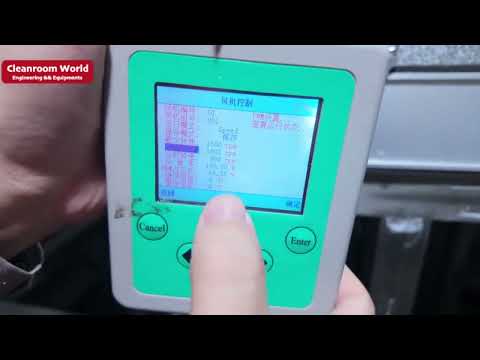

Pressure Monitoring: Many FFUs include pressure sensors to monitor and adjust airflow, ensuring consistent operation and performance.

By effectively filtering and circulating air, FFUs play a critical role in maintaining the cleanliness and integrity of sensitive environments. Their ability to provide localized air filtration makes them an essential component in various industries, including pharmaceuticals, electronics, and research laboratories, where contamination control is paramount for product quality and safety.

What are the differences between HEPA and ULPA filters in FFUs?

Filtration Efficiency:

HEPA: Captures at least 99.97% of particles ≥0.3 microns.

ULPA: Captures at least 99.999% of particles ≥0.12 microns.

Particle Size Capture:

HEPA: Effective for larger particles (dust, pollen, mold spores).

ULPA: Effective for smaller particles (bacteria, some viruses).

Applications:

HEPA: Used in hospitals, laboratories, and commercial settings.

ULPA: Used in semiconductor manufacturing and pharmaceutical production.

Airflow Resistance:

HEPA: Moderate airflow resistance.

ULPA: Higher airflow resistance.

Cost:

HEPA: Generally less expensive.

ULPA: Usually more costly due to higher efficiency.

FFU Product Parameter Table

How to select the right FFU for a cleanroom?

When selecting the right Fan Filter Unit (FFU) for a cleanroom, consider the following factors: first, determine the required air cleanliness level (ISO class) to understand the filtration efficiency needed. Next, assess the cleanroom size and layout to calculate the number of FFUs required for proper air distribution and airflow rates, typically measured in cubic feet per minute (CFM). Examine the filter type (HEPA or ULPA) based on particle retention efficiency and ensure compatibility with the cleanroom's HVAC system. Additionally, evaluate the noise levels, energy efficiency, and maintenance requirements of the FFUs to ensure they meet operational needs while maintaining a suitable working environment. Lastly, consider the manufacturer's reputation and support services for long-term reliability.

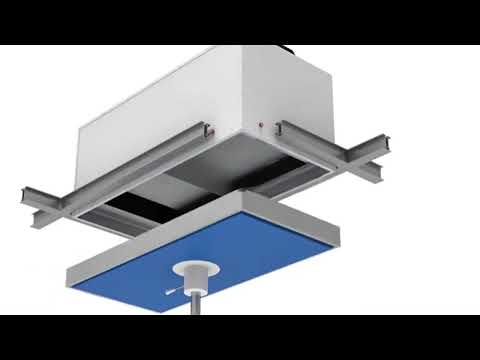

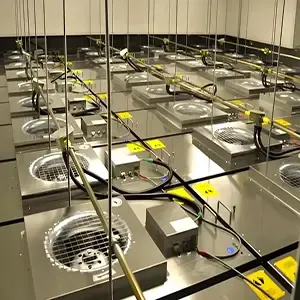

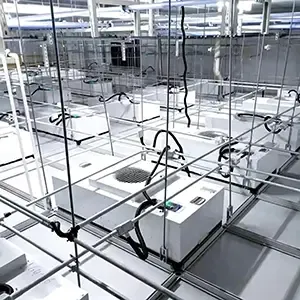

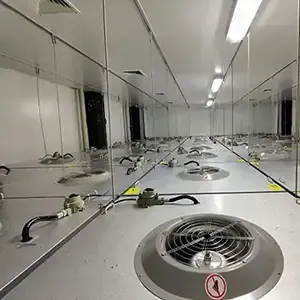

How to install an FFU in a cleanroom ceiling?

To install a Fan Filter Unit (FFU) in a cleanroom ceiling, begin by ensuring that the ceiling structure can support the weight of the FFU. Cut an appropriately sized opening in the ceiling grid to accommodate the unit, ensuring it aligns with the cleanroom's airflow design. Next, secure the FFU in place using the mounting brackets provided, ensuring it is level and properly seated within the ceiling grid.

Once the FFU is mounted, connect the electrical supply following the manufacturer's guidelines, ensuring all connections are safe and compliant with local codes. Finally, conduct an airflow test to verify that the FFU operates effectively, adjusting the unit as necessary to achieve the desired airflow and cleanroom conditions.

What is the maintenance schedule for an FFU?

The maintenance schedule for a Fan Filter Unit (FFU) typically includes regular inspections and filter replacements. It is recommended to inspect the FFU every 3 to 6 months, checking for signs of wear, dust accumulation, and proper airflow. Filters should be replaced based on the manufacturer's specifications, usually every 6 to 12 months, or sooner if pressure drop indicators suggest clogging.

Additionally, perform annual maintenance that includes cleaning the fan blades, checking electrical connections, and ensuring overall functionality. Keeping a log of maintenance activities helps track performance and anticipate future needs, ensuring optimal operation and prolonging the FFU's lifespan.

How to replace the filter in an FFU?

To replace the filter in a Fan Filter Unit (FFU), first, ensure the unit is turned off and unplugged to prevent any electrical hazards. Next, carefully remove the access panel or cover of the FFU, following the manufacturer's instructions for safe removal without damaging any components.

Once the access panel is removed, locate the existing filter and gently detach it from its housing. Be cautious not to disturb any dust or contaminants that may have accumulated on the filter. Dispose of the old filter according to local regulations for hazardous materials if applicable.

After removing the old filter, insert the new filter into the housing, ensuring that it is oriented correctly according to the airflow direction indicated on the unit. Finally, replace the access panel securely and turn the FFU back on, checking for proper airflow and function after the replacement.

Can FFUs be used in hospital environments?

FFUs (Fan Filtration Units) are generally not used directly in hospital operating room clean room systems. Hospital OR cleanroom systems typically use Air Handling Units (AHUs) for air filtration and pre-treatment to control key parameters such as ambient temperature, humidity, cleanliness, and air pressure.AHUs have greater air conditioning capabilities and more sophisticated filtration systems to meet the stringent requirements of hospital environments, whereas FFUs are typically used in smaller or auxiliary clean areas. In demanding healthcare environments, AHUs are the more appropriate and reliable choice.

What is the typical lifespan of an FFU?

The typical service life of a fan filter unit (FFU) is typically 10 to 15 years, depending on a variety of factors such as frequency of use, maintenance practices, environmental conditions, and the quality of the unit itself. Regular maintenance, including changing filters and cleaning components, can help extend the life of the FFU.
