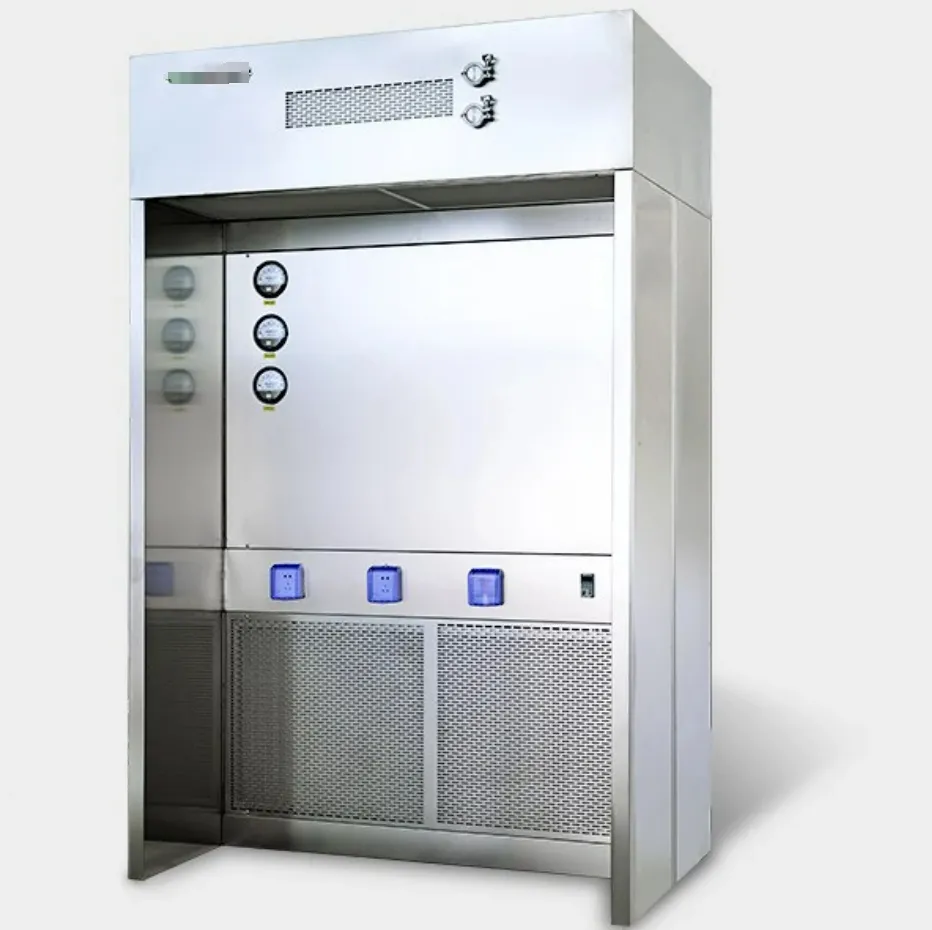

Your Reliable Manufacturer of Negative Pressure Weighing Cover
Product Features:
Decheng TECHNOLOGY Negative Pressure Weighing Bench|Negative Pressure Weighing Bench Features.
| The fan has a long life, low noise, maintenance-free and low vibration;. | Double-layer negative pressure structure, no risk of leakage. | Excellent air distribution properties. |
| Automatic constant or stepwise adjustment of wind speed. | Liquid tank design ensures perfect sealing. | Consistent and clean inside and out. |
Working Principle:
Negative pressure weighing room is composed of working area, return air box, fan box, air outlet box, outer box, high efficiency filter for air supply, high efficiency filter for air exhaust, PLC control system of variable air volume fan set and sensing system and other major components. The control panel is located in the front of the working area inside the equipment, and the control panel adopts the touch screen type control panel, which can control the starting and stopping of the fan, adjust the working condition of the fan, and adjust the wind speed needed in the working area. There is a differential pressure meter next to it to test the resistance of the filter, and there is also an exhaust air adjustment board inside the air supply box to adjust the exhaust air volume of the equipment within a reasonable range.
Product Parameters:
| models | Overall dimensions(mm) | Workspace dimensions(mm) | Rated air volume(m°/h) | air velocity(m/s) | cleanliness class | static(dB) | illumination(Lux) | control method | power(KW) |
|---|
| KLDC-FYCLS 1200 | 1200X1200x2500 | 1100X700X2000 | 1300~1500 | 0.45+20% | Grade A | 72 | >300 | Inverter control LCD control | 0.75 |
|---|
| KLDC-FYCLS 1300 | 1300X1300X2500 | 1200x800X2000 | 1600~1800 | 0.75 |
|---|
| KLDC-FYCLS 1400 | 1500x1300X2500 | 1400X700X2000 | 2000~2200 | 1.5 |
|---|
| KLDC-FYCLS 1500 | 2000x1300Xx2500 | 1900x800X2000 | 2500~2700 | 1.5 |
|---|
| KLDC-FYCLS 1600 | 2000X1500X2500 | 1900X1000X2000 | 3400-3600 | 2.2 |
|---|
| KLDC-FYCLS 2700 | 2000x1800X2500 | 1900X1300X2000 | 4500~4900 | 2.2 |
|---|
