The core equipment of the air conditioning purification system, the high-efficiency air conditioning filter is used in the terminal of constant temperature and humidity purification air conditioning, large central air conditioning, and combined air conditioning. The high-efficiency air conditioning filter ensures the air cleanliness of the air outlet.
Indoor Air Purifiers: Use HEPA filters to remove allergens and pollutants, ideal for those with allergies or respiratory issues.
HVAC Systems: Advanced systems with HEPA filters improve air quality in hospitals, labs, and clean rooms.
Vacuum Cleaners: HEPA filters in high-quality vacuums prevent allergens and fine particles from being released back into the air.
Medical Facilities: HEPA filters are essential for controlling airborne contaminants and maintaining sterile environments.
Min. Order:1 Set

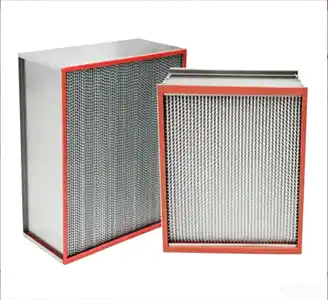

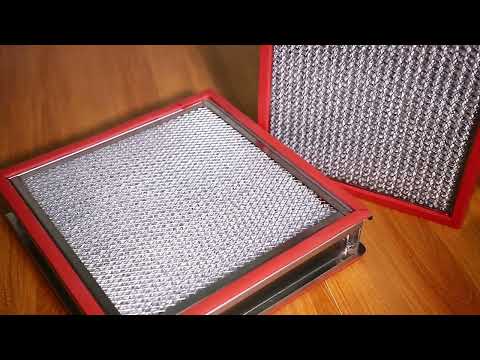

Catalog:High Temperature Separated HEPA Filter
Min. Order:
Catalog:High Temperature Separated HEPA Filter
Min. Order:
Catalog:High Temperature Separated HEPA Filter
Min. Order:
Catalog:High Temperature Separated HEPA Filter
Min. Order:
Catalog:High Temperature Separated HEPA Filter
Min. Order:
Catalog:High Temperature Separated HEPA Filter
Min. Order:
Catalog:High Temperature Separated HEPA Filter
Min. Order:
Catalog:High Temperature Separated HEPA Filter
Min. Order:
Catalog:High Temperature Separated HEPA Filter
Min. Order:
Catalog:High Temperature Separated HEPA Filter
Min. Order:
Catalog:High Temperature Separated HEPA Filter
Min. Order:
Catalog:High Temperature Separated HEPA Filter
Min. Order:
Catalog:High Temperature Separated HEPA Filter
Min. Order:
Catalog:High Temperature Separated HEPA Filter
Min. Order:1 unit
Catalog:ULPA Filter without Compartment
Min. Order:1 Set
Catalog:ULPA Filter without Compartment
Min. Order:1 Set
Catalog:ULPA Filter without Compartment
Min. Order:1 unit
Catalog:ULPA Filter without Compartment
Min. Order:3 unit
Catalog:ULPA Filter without Compartment
Min. Order:3 unit
Catalog:ULPA Filter without Compartment
Min. Order:1 unit
Catalog:ULPA Filter without Compartment
Min. Order:1 unit
Catalog:ULPA Filter without Compartment
Min. Order:1 unit
Catalog:ULPA Filter without Compartment
Min. Order:1 unit
Catalog:ULPA Filter without Compartment
Modular CleanRoom
US$9000-10000 USD/Unit
Min. Order:1 unit
Air Shower
US$1000.00-5000.00 USD/Unit
Min. Order:1 unit
Downflow Booth
US$3000-6000 USD/Unit
Min. Order:1 unit
Clean bench
US$600-2000 USD/Unit
Min. Order:1 unit
Air Filter
US$3-50 USD/Unit
Min. Order:1 unit
Cleanroom Wall Panels
US$10-20 USD/sq.
Min. Order:100 square
High filtration accuracy: The high-efficiency filter has excellent filtration accuracy and can remove more than 95% of suspended solids in the water. It also has a certain removal effect on macromolecular organic matter, viruses, bacteria, colloids, iron and other impurities. After good coagulation treatment, the turbidity of the treated water can be reduced from 10NTU of the inlet water to less than 1NTU, ensuring the cleanliness and purity of the outlet water quality.
Fast filtration speed: The filtration speed of a general high-efficiency filter can reach 40m per hour, and the highest can even reach 60m per hour, which is more than 3 times that of an ordinary sand filter, effectively improving the efficiency of water treatment.
Large pollutant holding capacity: The high-efficiency filter has a large pollutant holding capacity, generally 15-35kg/m³, which is more than 4 times that of an ordinary sand filter. It can effectively adsorb and capture impurities in the water and extend the filtration cycle.
Low backwash water consumption rate: The backwash water consumption of the high-efficiency filter is relatively small, usually less than 1-2% of the cycle filtration water volume, saving water resources while ensuring the normal operation and filtration effect of the equipment.
Low dosage and low operating cost: Due to the filter bed structure and filter material characteristics of the high-efficiency filter, the flocculant dosage is usually 1/2 to 1/3 of that of conventional technology, which reduces the cost of dosing. With the increase of cycle water output, the operating cost per ton of water is also reduced accordingly, saving operating costs.
Small footprint: Under the same water output, the footprint of the high-efficiency filter is only less than 1/3 of that of the ordinary sand filter, saving space resources and suitable for layout in limited sites.
Strong adjustability: The high-efficiency filter has good adjustability, and parameters such as filtration accuracy, interception capacity, and filtration resistance can be adjusted as needed to meet different water quality and treatment requirements.
Durable filter material: The high-efficiency filter uses durable filter material with a lifespan of more than 20 years, reducing replacement and maintenance costs and improving the reliability and stability of the equipment.
The service life of the high-efficiency filter is an important factor affecting the air purification effect and system performance, which is mainly caused by the following three reasons:
The filter material area of the filter is too small or the unit dust holding capacity is too small:
The filter efficiency and life of the filter are closely related to the area of its filter material and the unit dust holding capacity. If the filter area is too small or the unit dust holding capacity is insufficient, the filter will reach saturation in a short time, affecting its normal operation and service life.
The filter efficiency of the pre-filter is low:
The low filter efficiency of the pre-filter will cause the high-efficiency filter to bear too much particulate load, accelerate the pollution and clogging of the filter, and shorten the service life of the high-efficiency filter.
The user has too high expectations for the service life of the filter:
Sometimes the user has too high expectations for the service life of the filter, and may ignore the actual working environment and use conditions of the filter, causing the filter to fail prematurely.
The national standard GB13554-92 stipulates that the high-efficiency filter is:
Filter whose efficiency is ≥99.9% according to the sodium flame method test specified in GB6165;
Sodium flame method test, the efficiency of ≥ 99.99% of the filter
Sodium flame method test, the efficiency of ≥ 99.999% of the filter
Filters with efficiency ≥99.999% for particles ≥0.1 m in size.
The former refers to general high-efficiency filters. In comparison, the efficiency of high-efficiency filters is generally defined as ≥99.97% abroad. The latter refers to ultra-high-efficiency filters.
Selection of a sufficiently efficient filter (pre-filtration).
Choose a filter with a large filter area
HEPA filters must be tested one by one
Under the same air volume, choose the filter with low initial resistance.
Select filters of common size
HEPA filters should not be washed. Here’s an analysis of why washing HEPA filters is not recommended:
Structural Integrity
Deformation: Washing can cause the filter to lose its shape, leading to gaps where unfiltered air can bypass the filter.
Effectiveness
Washing may not remove all trapped particles, and the remaining debris can obstruct airflow and reduce filtration efficiency.
Drying Issues
Moisture Retention: After washing, HEPA filters can retain moisture, which can lead to mold and bacteria growth within the filter.
Manufacturer Guidelines
Instructions: Most manufacturers explicitly state that HEPA filters should not be washed.
HEPA filters are highly effective at capturing a wide range of airborne particles, but there are certain types of contaminants that they do not effectively remove. Here are some key categories of particles and substances that HEPA filters cannot eliminate:
1. Gases and Vapors
Volatile Organic Compounds (VOCs): These include a variety of chemicals found in paints, cleaners, and other household products.
2. Smoke
Fine Smoke Particles: While HEPA filters can capture larger particulate matter from smoke, they may not be as effective against very fine particles present in smoke, especially from sources like wildfires or tobacco.
3. Bacteria and Viruses
While HEPA filters can trap a significant percentage of bacteria and viruses due to their small size (typically 0.3 microns and larger), they do not eliminate them entirely.
4. Large Particles
Dust and Pollen: HEPA filters are designed to capture particles as small as 0.3 microns, so larger particles like dust and pollen can also be filtered out.
1. Classification Standards
HEPA filters are often classified according to standards set by various organizations. The most recognized standards include:
H10 to H12: These filters have efficiencies ranging from 85% to 99.5% for particles of 0.1 to 0.3 microns.
H13 and H14: These are higher-efficiency filters, capturing 99.95% and 99.995%, respectively, of particles down to 0.1 microns.
2. Efficiency Classes
HEPA: Standard HEPA filters that meet the DOE requirement (99.97% at 0.3 microns).
ULPA (Ultra Low Penetration Air): Filters that capture 99.999% of particles down to 0.12 microns.
1. HEPA H13 filters remove 99.95% of particles ≥0.3 microns.
2. It is widely used in cleanrooms, hospitals, and laboratories to maintain air quality.
Relevant Standards List:
ISO 14644-1 (Cleanroom standards)
EN 1822 (HEPA filter classification)
ASHRAE 52.2 (Air filter performance standards)
HEPA filters are categorized by their efficiency in removing airborne particles. Higher grades have better filtration efficiency.
H13 removes 99.95% of particles.
H14 removes 99.995% of particles.
Grades determine suitability for specific clean environments.
Certified according to international standards.
Efficient at capturing bacteria and viruses.
Used in critical industries like healthcare and electronics.
The grade of a HEPA filter determines its application and performance in various clean environments.

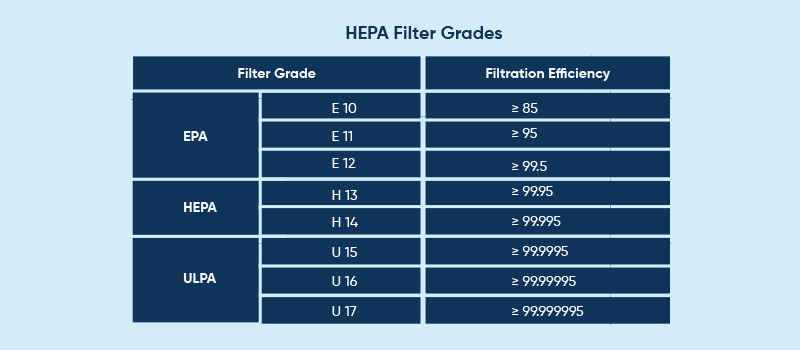

1. H10–H12: Medium efficiency filters.
2. H13–H14: High-efficiency filters for critical environments.
3. U15–U17: Ultra-high efficiency filters.
4. Classified by EN 1822 standards.
Different types cater to varying levels of air purity requirements, from residential to industrial and cleanroom applications.
1. HEPA filters ensure ultra-clean air in critical settings such as hospitals, laboratories, and cleanrooms.
2. They are also used in residential, commercial, and industrial settings to improve indoor air quality.
The cost depends on size, grade, and application, ranging from affordable to premium options.
Entry-level filters cost ~$100–$500.
High-grade cleanroom filters can exceed $1,000.
Maintenance costs can add to the overall expense.
1. Typical installation ranges from $200–$500.
2. Complex systems or custom setups may cost more, depending on the requirements.
Relevant Standards List:
ISO 14644-2 (Cleanroom maintenance)
EN 779 (General air filtration classification)
HEPA filters are expensive due to their precision, durability, and superior performance.
1. Advanced manufacturing processes.
2. High-cost materials.
3. Rigorous testing and certification.
4. Long-term durability.
5. High filtration efficiency.
6. Specialized applications.
Though costly, HEPA filters are indispensable in environments requiring strict air quality standards.
1. Yes, for critical environments like cleanrooms.
2. Improves health and safety by removing contaminants.
3. Ensures compliance with cleanroom regulations.
4. Long-term reliability offsets initial expense.
The investment in HEPA filters is justified by their efficiency and reliability in maintaining clean environments.
1. H13 is classified as high-efficiency.
2. H14 is ultra-high efficiency.
3. Classes vary based on specific use cases.
4. Certified under EN 1822.
HEPA classes ensure tailored solutions for diverse air quality needs.
1. H14 has a higher filtration efficiency (99.995%) than H13 (99.95%), capturing finer particles.
2. H14 is suited for stricter environments like pharmaceutical manufacturing, while H13 is ideal for general cleanrooms.
